34_SMA-50-0-1/111_NH datasheet, PDF

Datasheet> All Categories > The connector> The connector> 34_SMA-50-0-1/111_NH

34_SMA-50-0-1/111_NH: DescriptionRF Adapters - Within Series; CategoryThe connector The connector; File Size98KB，1 Pages; ManufacturerHUBER+SUHNER; Environmental Compliance

Download Datasheet Parametric Compare View All

34_SMA-50-0-1/111_NH Overview

RF Adapters - Within Series

34_SMA-50-0-1/111_NH Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Adapter type	SMA-SMA
Other features	STANDARDS: IEC 60169-15; MIL-STD-348A/310
Body/casing type	JACK-JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE-FEMALE
Contact material	BERYLLIUM COPPER
Contact style	COAX
Coupling type	THREADED
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
insulator material	PFA/PTFE
JESD-609 code	e4
MIL compliance	NO
Installation method	STRAIGHT
Maximum operating frequency	18 GHz
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
Panel mounting	YES
reliability	COMMERCIAL
voltage standing wave ratio	1.14
Base Number Matches	1

Preview

Download Datasheet

View All

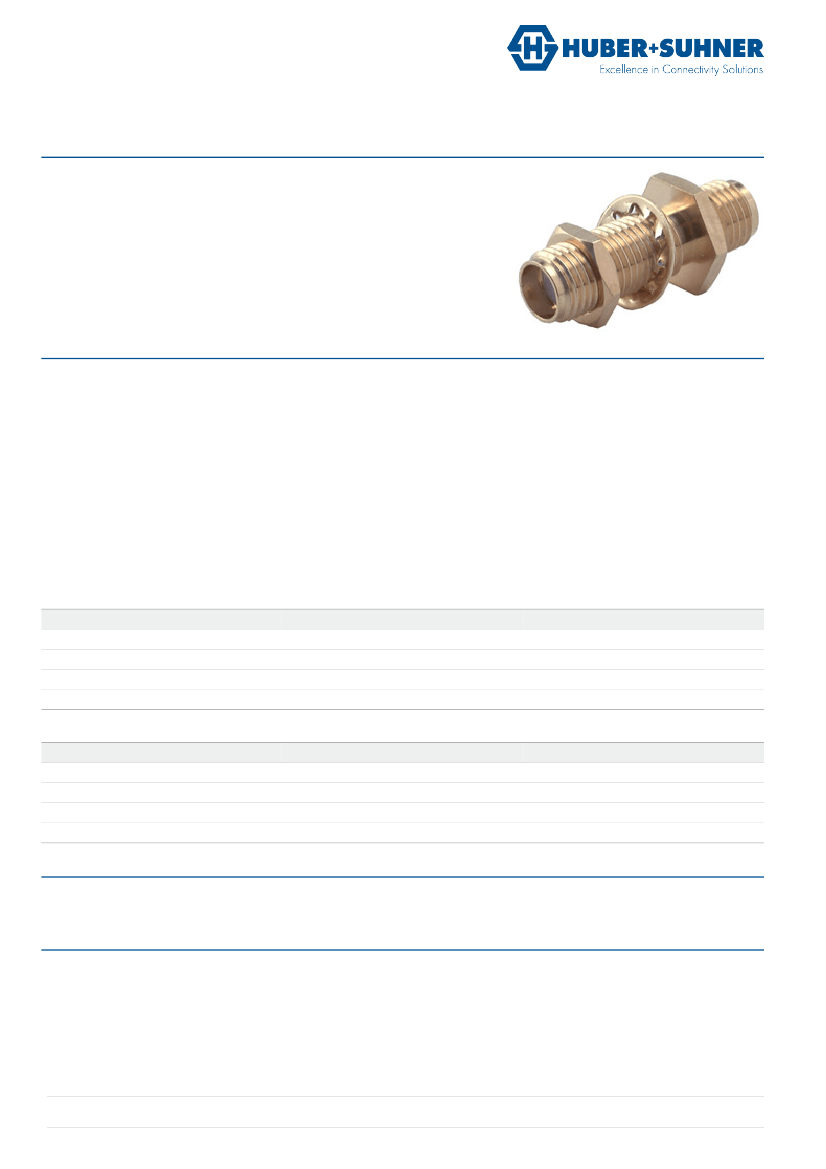

Data Sheet

Within Series Adaptor

34_SMA-50-0-1/111_N

Description

Bulkhead adaptor jack/jack

SMA jack (female) / SMA jack (female)

Interface standard

Series SMA - IEC 60169-15_MIL-STD-348A/310_CECC 22110

Technical Data

Electrical Data

Impedance

Interface frequency max.

VSWR

50 Ω

18 GHz

DC - 18 GHz

≤ 1.05 + 0.005 f (GHz)

Mechanical Data

Number of matings

Weight

500

0.0041 kg

Environmental Data

Operating temperature

2011/65/EU (RoHS)

-65 °C to 125 °C

compliant

Material Data

Interface - SMA jack (female)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Material

Copper Beryllium Alloy

PFA / PTFE

Surface Plating

Gold Plating (Nickel underplated)

Interface - SMA jack (female)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Material

Copper Beryllium Alloy

PFA / PTFE

Surface Plating

Gold Plating (Nickel underplated)

34_SMA-50-0-1/111_NH Related Products

	34_SMA-50-0-1/111_NH	34_SMA-50-0-1/111_NE
Description	RF Adapters - Within Series	RF Adapters - Within Series
Is it Rohs certified?	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Adapter type	SMA-SMA	SMA-SMA
Other features	STANDARDS: IEC 60169-15; MIL-STD-348A/310	STANDARDS: IEC 60169-15; MIL-STD-348A/310
Body/casing type	JACK-JACK	JACK-JACK
Characteristic impedance	50 Ω	50 Ω
Connector type	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER
Contact to complete cooperation	GOLD OVER NICKEL	NOT SPECIFIED
Contact point gender	FEMALE-FEMALE	FEMALE-FEMALE
Contact material	BERYLLIUM COPPER	NOT SPECIFIED
Contact style	COAX	COAX
Coupling type	THREADED	THREADED
DIN compliance	NO	NO
Durability	500 Cycles	500 Cycles
Filter function	NO	NO
IEC compliance	NO	NO
insulator material	PFA/PTFE	PFA/PTFE
MIL compliance	NO	NO
Installation method	STRAIGHT	STRAIGHT
Maximum operating frequency	18 GHz	18 GHz
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	YES	YES
reliability	COMMERCIAL	COMMERCIAL
voltage standing wave ratio	1.14	1.14
Base Number Matches	1	1
