233-301NFG6-175HN1: DescriptionModular connector/Ethernet connectorReceptacle with crimp removable contacts,Aluminum/Cadmium, Olive Drab, Plugs; CategoryThe connector Modular connectors/Ethernet connector; File Size733KB，3 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric Compare View All

233-301NFG6-175HN1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	233-301NFG6-175HN1	-	-	View	Buy Now

233-301NFG6-175HN1 Overview

Modular connector/Ethernet connectorReceptacle with crimp removable contacts,Aluminum/Cadmium, Olive Drab, Plugs

233-301NFG6-175HN1 Parametric

Parameter Name	Attribute value
Maker	Glenair
Product Category	Modular Connector/Ethernet Connector
product	Modular Plugs
USOC code	RJ45
Number of ports	1 Port
performance category	Cat 5e
shield	Shielded
IP rating	IP68
series	233-301
Type	Plug
Shell material	Aluminum
Installation angle	Straight
Number of contacts	8 Contact
Locking mechanism	Threaded
coupler	Threaded

Preview

Download Datasheet

View All

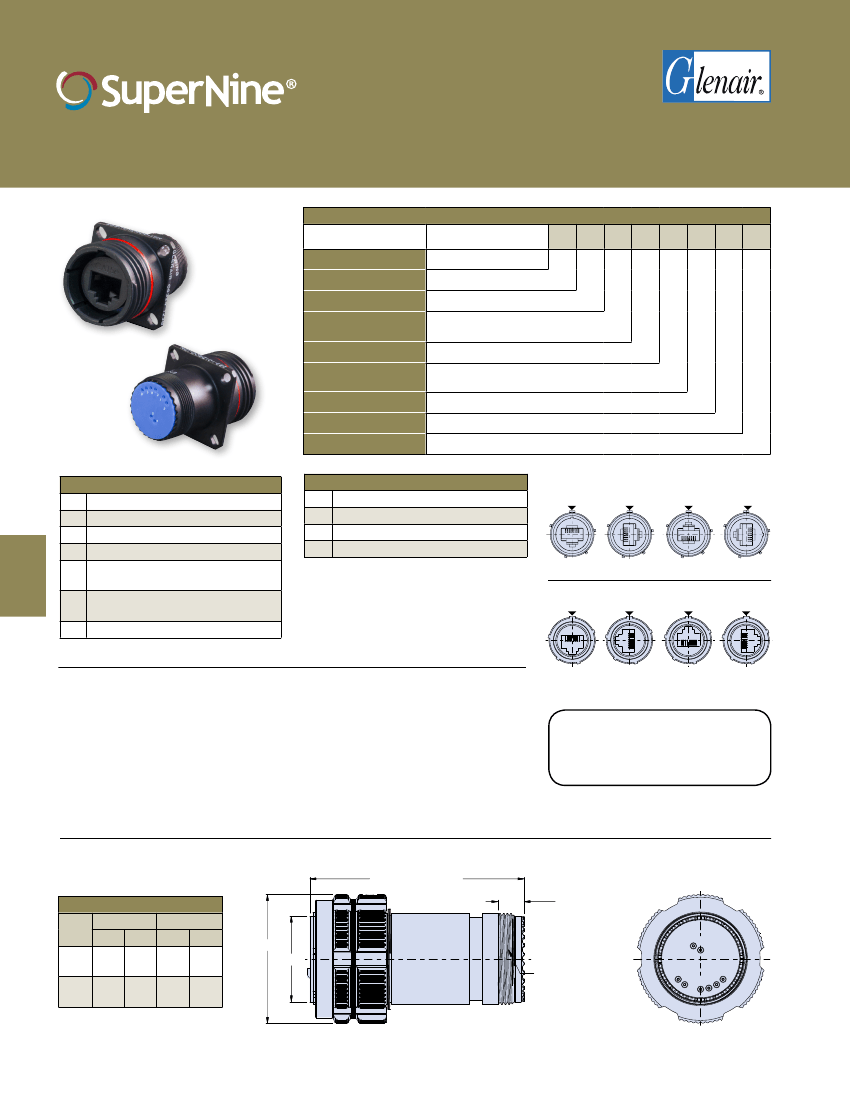

SERIES 23

233-301 Receptacle with crimp removable contacts

MIL-DTL-38999 Series III Type

Part Number Development

RJ45 CAT 5e connectors

Sample Part Number

Basic Number

Finish

233-301

See Material and Finish table

See Connector Style table

–

= Inline shielded RJ45 insert

= Shielded and grounded to shell

= CAT 5e

For Cat 6A applications consult factory

1, 2, 3,

= Part No. 770-028 (Omit for None)

Receptacle

front View

Connector Style

Insert-to-Shell

Grounding

Shell Size

RJ45 Category

Alternate Key Position

Per MIL-DTL-38999

A, B, C, D, E, N

= Normal

RJ45 Orientation

Receptacle

rear View

Connector Style

Wall mount receptacle with slotted holes

Inline Receptacle

rear panel mount, jam nut receptacle

Shrink Boot

Material and Finish

Aluminum/Cadmium, Olive Drab

Aluminum/Electroless Nickel

Aluminum/Nickel PTFE

Aluminum/Black Zinc-Nickel

RJ45 Orientation Options (Plug Face)

Master Key

Wall mount receptacle with round holes

Wall mount receptacle with metric

clinch nuts

Wall mount receptacle with metric

clinch nuts

plug

Code 1

Master Keyway

Code 2

Code 3

Code 4

RJ45 Orientation Options (Receptacle Face)

NOTES

1. See Section A for alternate key/keyway

positions and panel cutout dimensions

2. G option is inline shielded and

grounded to shell, available for

receptacle only

3. Front panel mount only

4. Crimp removable size 22 pin contacts

(M39029/58-360) supplied loose

5. Meets IP67 in unmated condition and

IP68 mated condition

6. For shrink boot see part number 770-

028

7. Receptacle connector has RJ45 jack

Code 1

Code2

Code 3

Code 4

All external dimensions, features,

etc. compliant with D38999/20, /24,

&/26. Consult factory for additional

information.

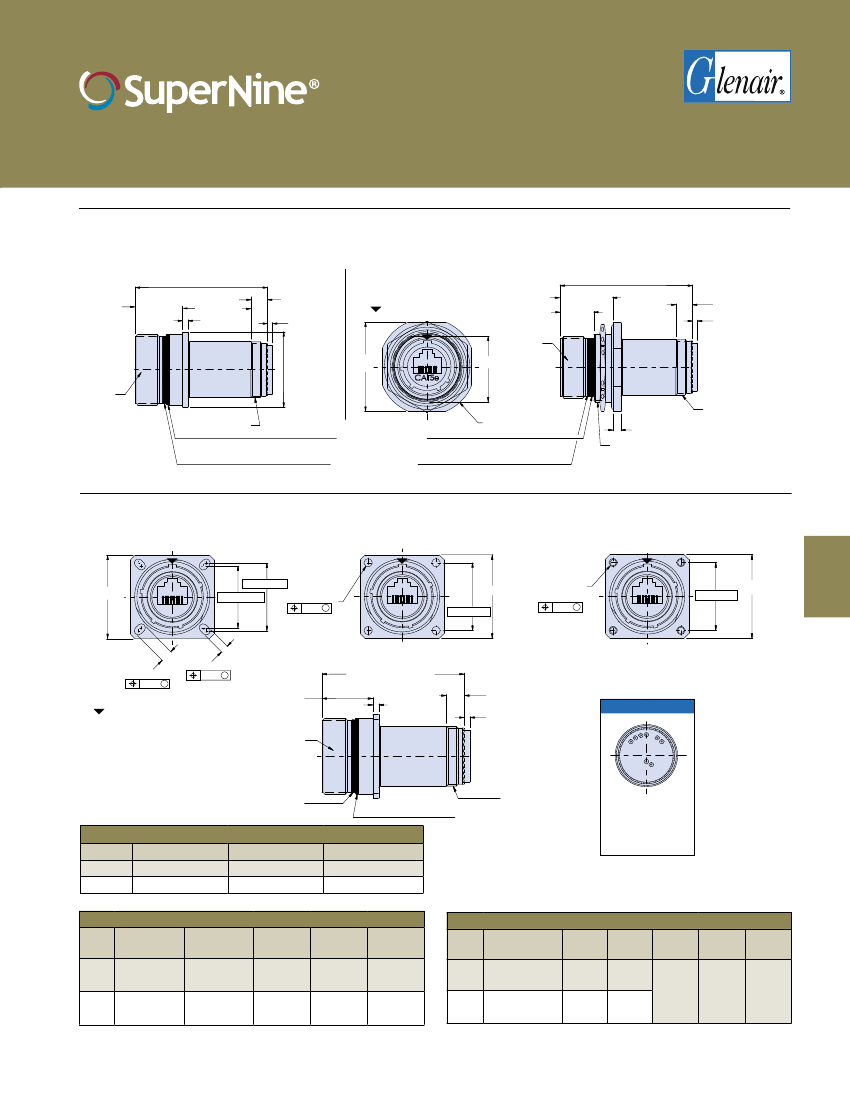

G6 PLUG WITH ACCESSORY THREADS

2.310 (58.67) Max

Plug Dimensions

Shell

Size

B Dia

.928 23.57

1.406 35.71

.922 23.42

1.033 26.24

1.516 38.51

1.027 26.09

A Dia Max

Ø A Max

ØB

G Thread

.280 (7.11) Min.

Full Thd.

3 6

E-12

Dimensions in Inches (millimeters) are subject to change without notice.

233-301NFG6-175HN1 Related Products

	233-301NFG6-175HN1	233-301ZRG6-195HN3	233-301NF00G175HN1
Description	Modular connector/Ethernet connectorReceptacle with crimp removable contacts,Aluminum/Cadmium, Olive Drab, Plugs	Modular Connector/Ethernet Connector	Modular Connector/Ethernet Connector Receptacle with crimp removable contacts,Aluminum/Cadmium, Olive Drab, Wall mount receptacle with slotted holes
Maker	Glenair	Glenair	Glenair
Product Category	Modular Connector/Ethernet Connector	Modular Connector/Ethernet Connector	Modular Connector/Ethernet Connector
product	Modular Plugs	Modular Plugs	Modular Jacks
USOC code	RJ45	RJ45	RJ45
Number of ports	1 Port	1 Port	1 Port
performance category	Cat 5e	Cat 5e	Cat 5e
shield	Shielded	Shielded	Shielded
IP rating	IP68	IP68	IP68
series	233-301	233-301	233-301
Type	Plug	Plug	Female
Shell material	Aluminum	Aluminum	Aluminum
Installation angle	Straight	Straight	Straight
Number of contacts	8 Contact	8 Contact	8 Contact
coupler	Threaded	Threaded	Threaded
