33_N-Q50-0-4/133_NE datasheet, PDF

Datasheet> All Categories > The connector> The connector> 33_N-Q50-0-4/133_NE

33_N-Q50-0-4/133_NE: DescriptionRF Adapters - Within Series; CategoryThe connector The connector; File Size109KB，2 Pages; ManufacturerHUBER+SUHNER; Environmental Compliance

Download Datasheet Parametric View All

33_N-Q50-0-4/133_NE Overview

RF Adapters - Within Series

33_N-Q50-0-4/133_NE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Adapter type	N-N
Other features	VSWR AT 5 GHZ: 1.07; VSWR AT 8 GHZ: 1.22
Body/casing type	PLUG-JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE-FEMALE
Contact material	BERYLLIUM COPPER
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	PFA/PTFE
MIL compliance	NO
Maximum operating frequency	11 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
voltage standing wave ratio	1.28
Base Number Matches	1

Preview

Download Datasheet

View All

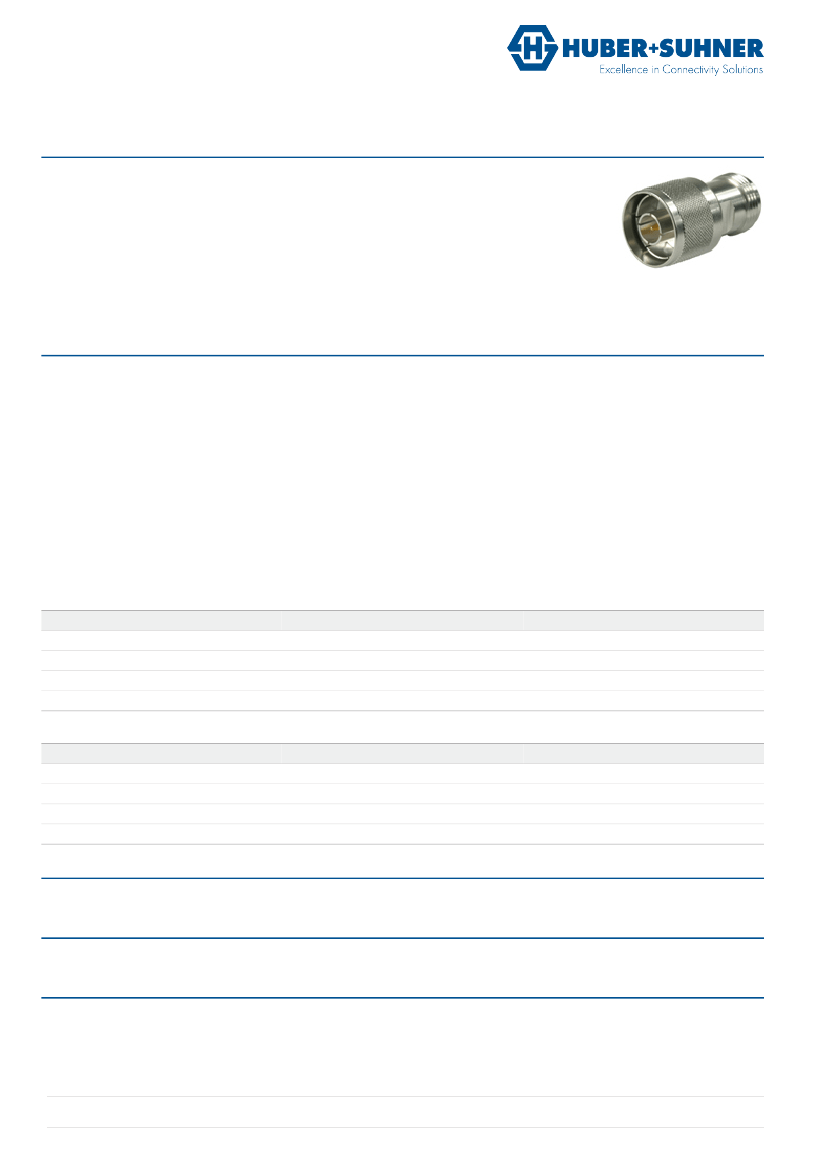

Data Sheet

Within Series Adaptor

33_N-Q50-0-4/133_N

Description

Adaptor plug/jack

N Quick-mate plug (male) / N jack (female)

Quick-mate coupling mechanism, pluggable without tightening

For Test & Measurement applications

Interface standards

Series N Quick-mate - HUBER+SUHNER Quick-mate

Series N - IEC 61169-16_MIL-STD-348A/304_CECC 22210

Technical Data

Electrical Data

Impedance

Interface frequency max.

Frequency range

Return loss

50 Ω

11 GHz

DC to 5 GHz

≥ 29.4 dB

5 to 8 GHz

≥ 20.1 dB

8 to 11 GHz

≥ 16.5 dB

Mechanical Data

Number of matings

Weight

500

0.0372 kg

Environmental Data

Operating temperature

2011/65/EU (RoHS)

-65 °C to 165 °C

compliant

Material Data

Interface - N Quick-mate plug (male)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Material

Copper Beryllium Alloy

Brass

PFA / PTFE

Surface Plating

SUCOPRO Plating

SUCOPLATE (R) Plating

Interface - N jack (female)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Material

Copper Beryllium Alloy

Brass

PFA / PTFE

Surface Plating

SUCOPRO Plating

SUCOPLATE (R) Plating
