831704C1.BL

Description
Basic/snap action switch SNSW 5A .110 PLAIN 79253326
CategoryMechanical and electronic products    switch    Basic/quick switch
File Size485KB,9 Pages
ManufacturerCrouzet
Download Datasheet Parametric View All

831704C1.BL Overview

Basic/snap action switch SNSW 5A .110 PLAIN 79253326

831704C1.BL Parametric

Parameter NameAttribute value
MakerCrouzet
Product CategoryBasic/snap-action switch
Shipping restrictionsMouser does not currently sell this product.
typeSubminiature
Contact formSPDT
switch functionON - (OFF), OFF - (ON)
ActuatorLever
Current rating5 A
Voltage ratingAC250 VAC
Voltage ratingDC4 VDC
work force0.6 N
Termination typeSolder Pin
InstallThrough Hole
IP ratingIP67
lighting color-
range of working temperature- 20 C to + 125 C
illuminationNon-Illuminated
Lamp type-
Installation stylePCB Mount
Maximum operating temperature+ 125 C
Minimum operating temperature- 20 C
Factory packaging quantity1
02/11/2015
www.crouzet.com

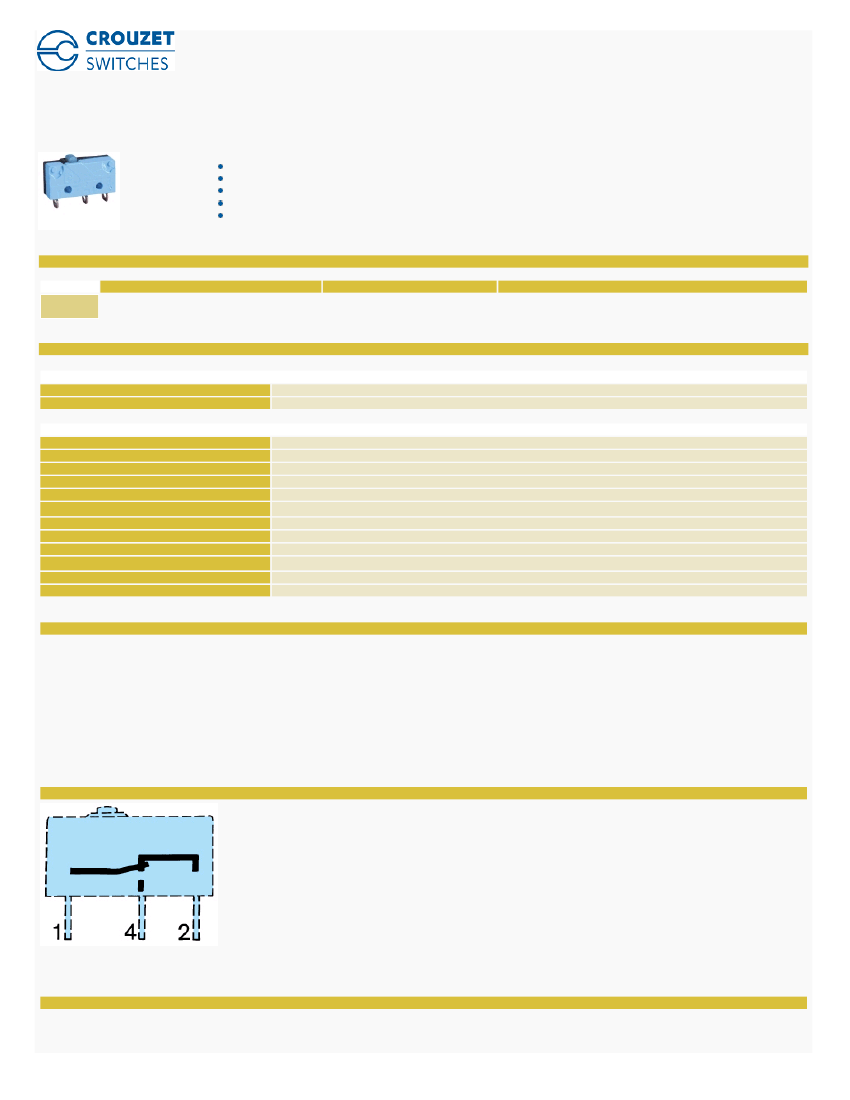

V4 83170 Low force 831704 Part number made to order
Nominal ratings 0.1 A to 10 A / 250 VAC
Minimum rating 1 mA / 4 VDC
Operating temperature up to +125 °C
Conforming to standards EN 61058 and UL 1054
Choice of actuators with 2 possible fixing positions
Part numbers
Type
MADE TO
ORDER
Low force 831704
Function
I (changeover)
Connections
X1S - X2 - X2S - X3 - X3S
Specifications
Electrical characteristics
Rating nominal / 250 VAC (A)
Rating thermal / 250 VAC (A)
5
6
Mechanical characteristics
Maximum operating force (N)
Min. Release force (N)
Maximum total travel force (N)
Max. permitted overtravel force (N)
Maximum rest position (mm)
Operating position (mm)
Max. differential travel mm
Min. overtravel (mm)
Ambient operating temperature (°C)
Mechanical life (operations)
Contact gap (mm)
Weight (g)
0,6
0,1
1
10
9,2
8,4
±0,3
0,15
0,5
-20 →+125
3.10
7
0,4
1,7
Additional specifications
Components
Material
- Case : polyester UL 94 VO
- Button : Glass-filled polyamide
- Contacts : AgNi, gold-plated AgNi (dual-current)
- Terminals : cupro-nickel (except W7A5 in brass)
Levers
- Flat : stainless steel
- Roller : stainless steel, polyamide roller
Approvals
NF - UL - cUL
Principles

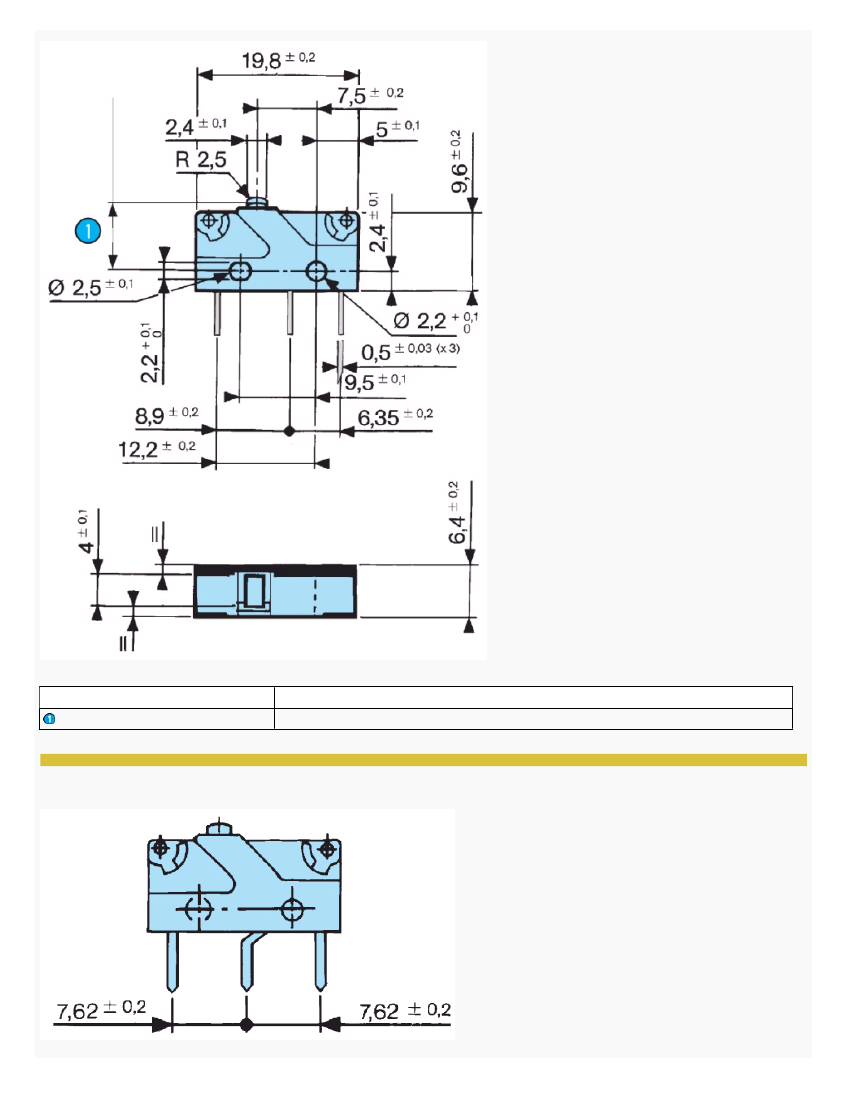

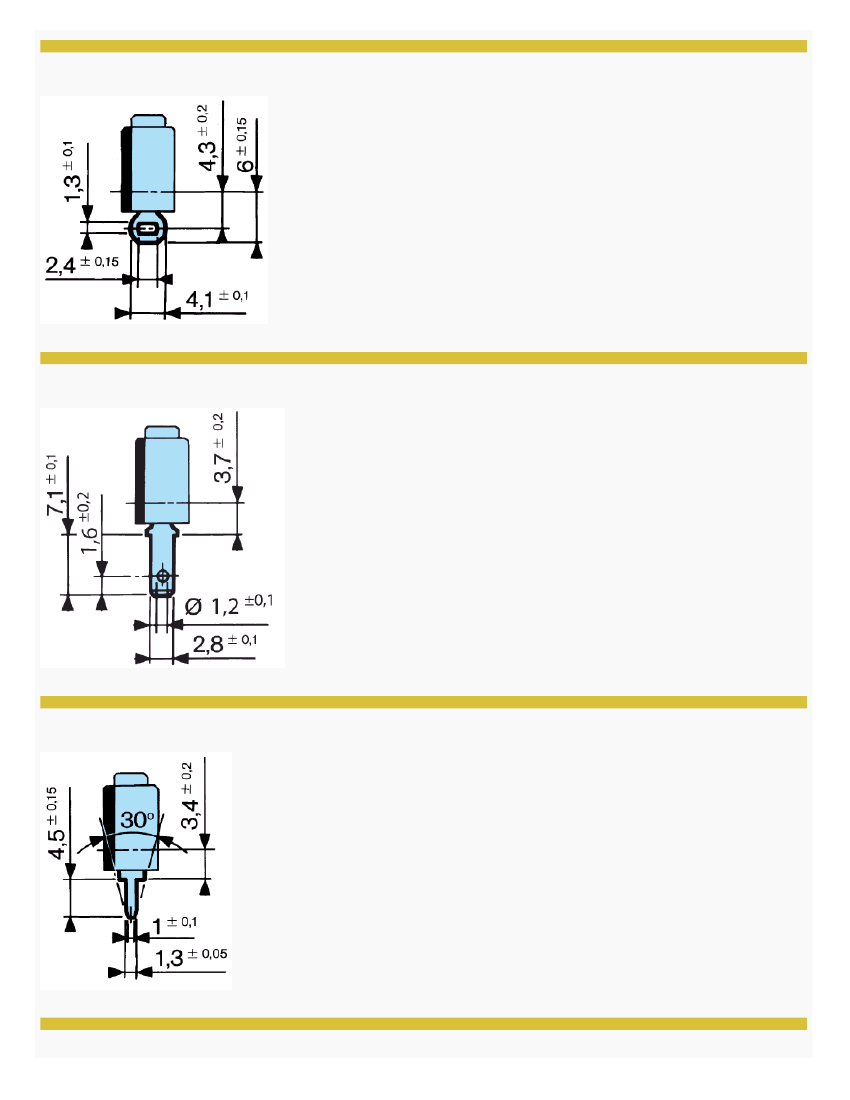

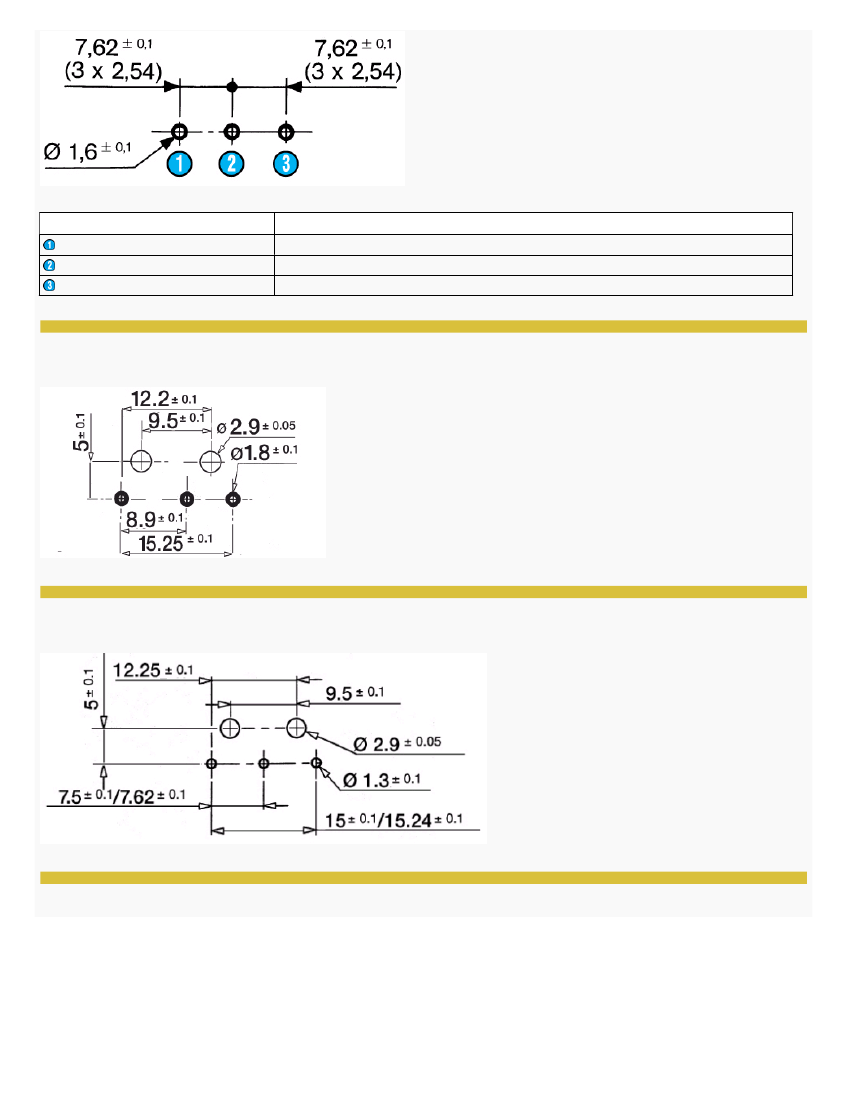

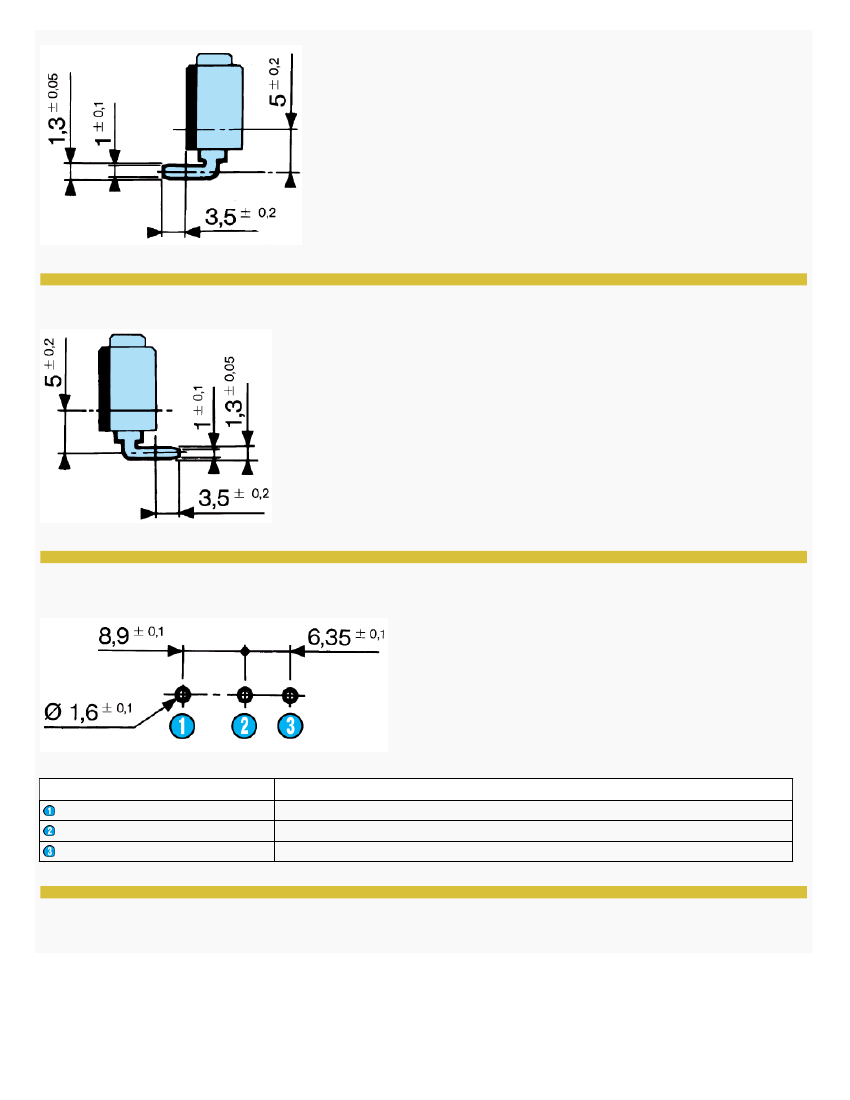

Dimensions (mm)
Product
83170
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
