AIIS-E730
I/O Card
32-channel Isolated Digital
Packing List
Before installation, please make sure that you have received
the following:
• AIIS-E730 card
• Quick Start User Manual
If anything is missing or damaged, contact your distributor or
sales representative immediately.
STARTUP MANUAL
Specifications
Isolated Digital Input
Number of Channel
Optical Isolation
Opto-isolator response time
Over-voltage Protect
Input Voltage
16 (bi-directional)
2,500 V
DC
25 μs
70 V
DC
VIH (max.) 30 V
DC
VIH (min.) 3 V
DC
VIL (max.) 1 V
DC
3 V
DC
0.5 mA (typical)
12 V
DC
3.1 mA (typical)
24 V
DC
6.6 mA (typical)
30 V
DC
9.73 mA (typical)
Input Current
Declaration of Conformity
FCC Class A
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential
area is likely to cause interference in which case the user is
required to correct interference at his own expense.
Digital Output
Number of Channels
Optical Isolation
Output Voltage
Sink/Source Current
16
2,500 V
DC
Open collector 5 to 40 V
DC
500 mA max./channel
General

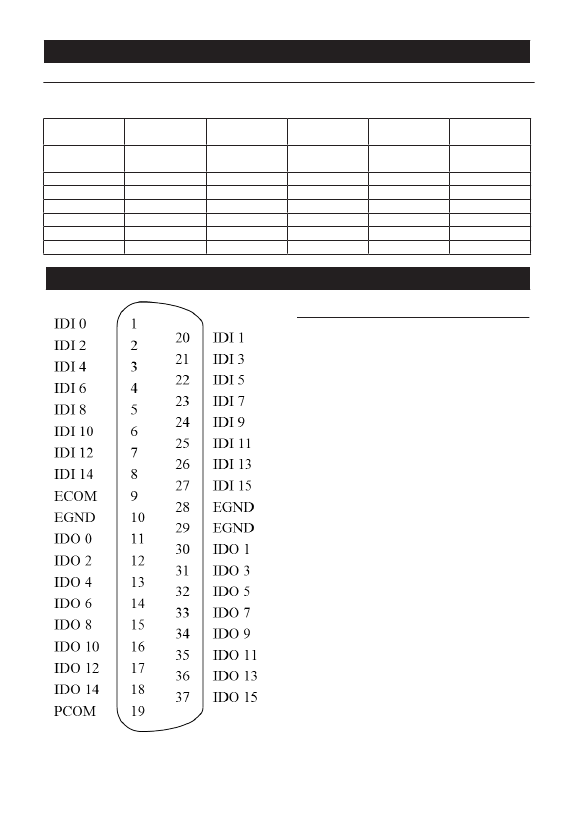

I/O Connector Type
Dimensions
Power Consumption
37-pin box header
96 mm x 102 mm (3.8” x 4.0”)
Typical
+3.3 V @ 265 mA
Max
+12 V @ 40 mA
+3.3 V @ 475 mA
CE
This product has passed the CE test for environmental
specifications when shielded cables are used for external
wiring. We recommend the use of shielded cables. This kind
of cable is available from Advantech. Please contact your
local supplier for ordering information.
+12 V @ 75 mA
Operation 0 ~ 50°C (32~ 122 °F )
Temperature
Relative Humidity
(refer to IEC 68 -2 - 1 ,2)
Storage
-20 ~ +70°C (-4 ~158°F)
5 ~ 95% RH non-condensing
(refer to IEC 60068-2-3)
CE/FCC
Overview
The AIIS-E730 offers isolated digital input channels as well
as isolated digital output channels with isolation protec-
tion up to 2,500 V
DC
, which makes them ideal for industrial
applications where high-voltage isolation is required. The
AIIS-E730 also features a Digital filter on each channel.
Certification
Notes
For more information on this and other Advantech products,
please visit our websites at:
http://www.advantech.com
For technical support and service:
http://www.advantech.com/support/
This startup manual is for AIIS-E730.
Part No: 2003F73000
1st Edition
January 2016
1 Startup Manual
Connections
Isolated Digital Input
Each of the 16 isolated digital input channels accept
voltage from 3 to 30 V for logic high, and 0 to 1 V for logic
low. All input channels share one external common. The
following figure shows how to connect an external input
source to the card's isolated inputs.
Isolated Digital Output
The AIIS-E730 provides 16 isolated DO channels. If the
external voltage (5 ~ 40V) is connected to each isolated
output channel (IDO) and its isolated digital output turns
on (500 mA per channel maximum), the card's current will
sink from the external voltage.
Startup Manual 3
