AMAX-4855
AMAX-4856
AMAX-4862

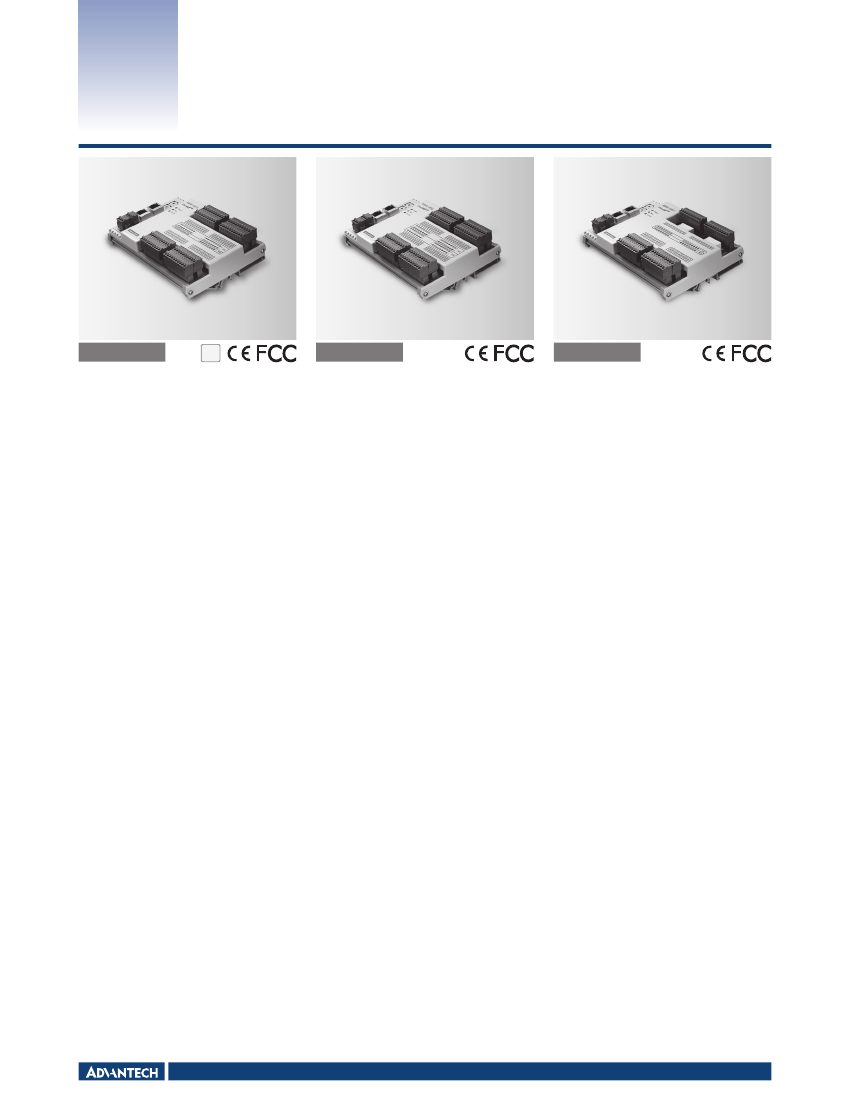

32-ch IDI & 16-ch PhotoMOS EtherCAT Remote I/O module
32-ch Isolated Digital Input and 32-ch Isolated Digital
Output EtherCAT Remote I/O Module
16-ch IDI & 16-ch Relay EtherCAT Remote I/O module
AMAX-4855
RoHS
COMPLIANT
2002/95/EC
AMAX-4856
AMAX-4862
Features
Suitable for EtherCAT networks
32-ch digital input and 16-ch PhotoMOS Relay output
(Form A)
1500 V
DC
optical isolation for relay outputs
Quick removable European type connector
LED indicators for I/O status
Supports EtherCAT Distributed Clock (DC) mode and
SyncManager mode
Two Rotary switches for up to 256 slave IDs
Features
Suitable for EtherCAT networks
32-ch digital input and 32-ch digital output with 2,500 V
DC
isolation
Wide input voltage range (10 ~ 30 V
DC
)
Wide output voltage range (5 ~ 40 V
DC
) and high output
current (350 mA/ch)
Quick removable European type connector
LED indicators for I/O status
Supports EtherCAT Distributed Clock (DC) mode and
SyncManager mode
Two Rotary switches for up to 256 slave IDs
Features
Suitable for EtherCAT networks
16-ch Isolated Digital Input and 16-ch Form A-type Relay
Output
High-voltage isolation on input channel (2,500 V
DC
)
Quick removable European type connector
LED indicators for I/O status
Supports EtherCAT Distributed Clock (DC) mode and
SyncManager mode
Two Rotary switches for up to 256 slave IDs
Introduction
The AMAX-4855 is an industrial EtherCAT slave module equipped
with the EtherCAT protocol. Its compact size and DIN-rail mount
kit can install easily in a cabinet. Euro type pluggable terminal
blocks and LED indicator help users to maintain and set up their
system. All digital input and PhotoMOS Relay Output channels
are protected by isolation circuits.
Introduction
The AMAX-4856 is an industrial EtherCAT slave module equipped
with the EtherCAT protocol. Its compact size and DIN-rail mount
kit can install easily in a cabinet. Euro type pluggable terminal
blocks and LED indicator help users to maintain and set up their
system. All digital input and digital output channels are protected
by 2,500 V
DC
isolation circuits.
Introduction
The AMAX-4862 is an industrial EtherCAT slave module equipped
with the EtherCAT protocol. Its compact size and DIN-rail mount
kit can install easily in a cabinet. Euro type pluggable terminal
blocks and LED indicator help users to maintain and set up their
system. All digital input channels are protected by 2,500 V
DC
isolation circuits.
Specifications
Specifications
Specifications
Communication
Interface
Data transfer medium
Distance between modules
Data transfer rates
Configuration
Communication Cycle Time
EtherCAT
Ethernet/EtherCAT cable (min. CAT
5), shielded
Max. 100 m (100BASE-TX)
100 Mbps
Not required
100us
Communication
Interfac
Data transfer medium
Distance between modules
Data transfer rates
Configuration
Communication Cycle Time
EtherCAT
Ethernet/EtherCAT cable (min. CAT
5), shielded
Max. 100 m (100BASE-TX)
100 Mbps
Not required
100us
Communication
Interface
Data transfer medium
EtherCAT
Ethernet/EtherCAT cable (min. CAT
5), shielded
Distance between modules
Max. 100 m (100BASE-TX)
Data transfer rates
100 Mbps
Configuration
Not required
Communication Cycle Time
100us
Digital Input
Channels
Input voltage
Isolation protection
32
Logic 0: 3 V max.
Logic 1: 10 V min. (30 V max.)
2,500 V
DC
Digital Input
Channels
Input voltage
Isolation protection
32
Logic 0: 3 V max.
Logic 1: 10 V min. (30 V max.)
2,500 V
DC
Digital Input
Channels
Input voltage
Isolation protection
16
Logic 0: 3 V max.
Logic 1: 10 V min. (30 V max.)
2,500 V
DC
PhotoMOS Relay Output
Channels
Relay type
Load Voltage
Load current
Peak load current
Isolation protection
Turn-on time
Turn-off time
16
PhotoMOS SPST(Form A)
60V (AC peak or DC)
1.2A
4A @100ms(1 pulse)
1,500 V
DC
1 ms typical
0.6 ms typical
Digital Output
Channels
Load voltage
Load current
32
5 ~ 40 V
DC
350mA/ch (sink) @ 25°C
250mA/ch (sink) @ 60°C
Isolation protection
2,500 V
DC
Opto-isolator Response Time
100us
Relay Output
Channels
Relay Type
Contact Rating (resistive)
Max. Switching Power
Max. Switching Voltage
Resistance
Operating Time
Releasing Time
Life Expectancy
16
Form A
2A @ 250 V
AC
, 2A @ 30 V
DC
500VA , 60W
270V AC, 125 V
DC
30mΩ max.
Max. 10ms
Max. 5ms
Mechanical 2 x 10
7
ops. at no load.
Electrical 3 x 10
4
ops. @2A/250V
AC
10-pin 3.81 mm terminal block * 6
(I/O)
3-pin 3.81 mm screw terminal block
(power)
RJ-45 * 2 (EtherCAT)
168 mm x 120 mm x 40 mm
-20 ~ 60°C (32 ~ 140°F)
-40 ~ 70°C (-40 ~ 158°F)
5 ~ 95% RH (non-condensing)
10 ~ 30 V
DC
Typical 85mA @24V;
Max. 130mA @24V
General
Connectors
10-pin 3.81 mm terminal block * 8
(I/O)
3-pin 3.81 mm screw terminal block
(power)
RJ-45 * 2 (EtherCAT)
168 mm x 120 mm x 40 mm
-20 ~ 60°C (32 ~ 140°F)
-40 ~ 70°C (-40 ~ 158°F)
5 ~ 95% RH (non-condensing)
10 ~ 30 V
DC
Typical 85mA @24V;
Max. 130mA @24V
General
Connectors
10-pin 3.81 mm terminal block * 8
(I/O)
3-pin 3.81 mm screw terminal block
(power)
RJ-45 * 2 (EtherCAT)
168 mm x 120 mm x 40 mm
-20 ~ 60°C (32 ~ 140°F)
-40 ~ 70°C (-40 ~ 158°F)
5 ~ 95% RH (non-condensing)
10 ~ 30 V
DC
Typical 85mA @24V;
Max. 130mA @24V
General
Connectors
Dimensions
Operating temperature
Storage temperature
Storage humidity
Power supply
Power Consumption
Dimensions
Operating temperature
Storage temperature
Storage humidity
Power supply
Power Consumption
Ordering Information
AMAX-4855-AE
96PSD-A40W24-MM
32-ch IDI & 16-ch PhotoMOS
EtherCAT Remote I/O module
DIN RAIL A/D 100-240V 40W 24V
Ordering Information
AMAX-4856-AE
96PSD-A40W24-MM
32-ch Isolated Digital Input and
32-ch Isolated Digital Output
EtherCAT Remote I/O Module
DIN RAIL A/D 100-240V 40W 24V
Dimensions
Operating temperature
Storage temperature
Storage humidity
Power supply
Power Consumption
Ordering Information
AMAX-4862-AE
96PSD-A40W24-MM
16-ch IDI & 16-ch Relay EtherCAT
Remote I/O module
DIN RAIL A/D 100-240V 40W 24V
Intelligent Motion Control and Machine Vision
All product specifications are subject to change without notice.
Last updated: 4-Dec-2017
