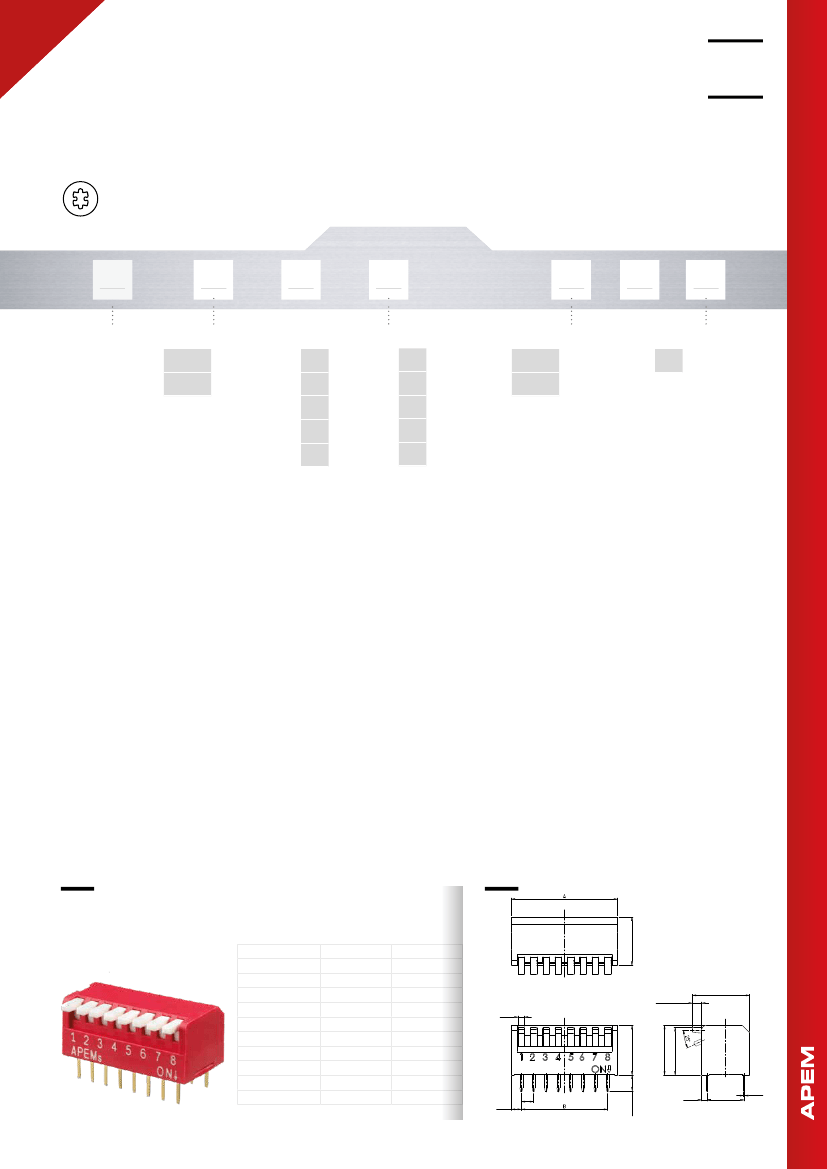

NDP series
Piano style • dual in line switches

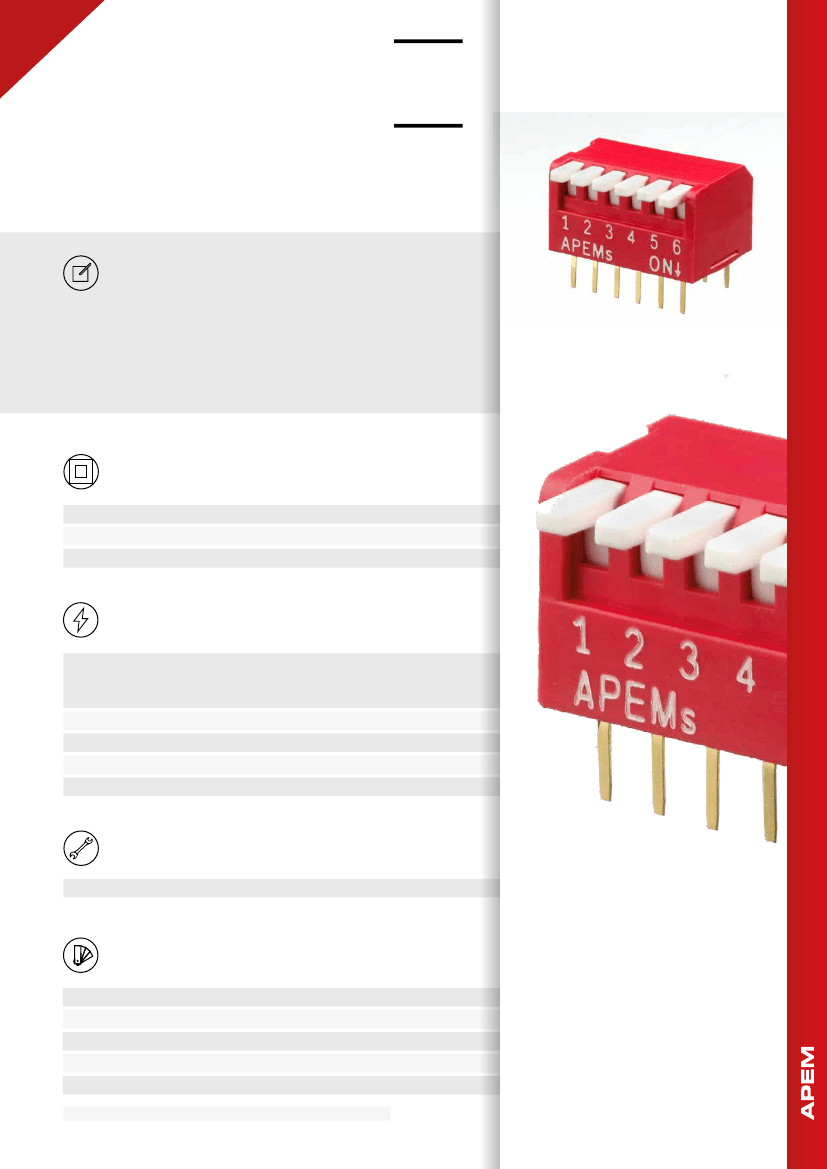

DISTINCTIVE FEATURES
2 to 12 Way
Self-cleaning wiping contacts
Gold plated terminals
Washable with tape seal
ENVIRONMENTAL SPECIFICATIONS
• Operating Temperature: -20 °C to +70 °C (-4 °F to +158 °F)
• Storage Temperature: -40 °C to +85 °C (-40 °F to +185 °F)
• Washable (with tape seal)
ELECTRICAL SPECIFICATIONS
• Max. Current/Voltage Rating:
- Switching: 25 mA 24 VDC
- Contact rating: 100 mA 50 VDC
• Initial Contact Resistance: 50 mΩ max
• Insulation Resistance: 100 MΩ min. at 500 VDC
• Dielectric Strength: 500 VAC min.
• Electrical Life: 2,000 cycles
MECHANICAL SPECIFICATIONS
• Operating force: 400 gf (3.92 N) max
MATERIALS
• Case & Actuator: PBT
• Base: PA66
• Contact: Gold plated
• Terminal: Gold plated brass
• Protection tape: Polyimide
The company reserves the right to change specifications without notice.
1
PANEL SWITCHES
PCB
18
P-
02
PCB SWITCHES
NDP series
Piano style • dual in line switches
PACKAGING
IC TUBE THROUGH-HOLE
Number of ways
2
3
4
5
6
7
8
9
10
12
No tape seal
70 pcs
50 pcs
39 pcs
32 pcs
27pcs
24 pcs
21 pcs
19 pcs
17 pcs
14 pcs
0.97
( .038)
PCB LAYOUT
THROUGH-HOLE
With tape seal
65 pcs
49 pcs
7.62
(0.30)
2.54 X P1
(0.10) x P1)
CIRCUIT
1,2,3,4,5,6,7,8,9,10,12 way only
2,3,4,5,6,7,8,9,10,12 way only
