CXB1304-0000-00PF0U0A30G datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> LED lighting> The LED emitter> High power LED - white> CXB1304-0000-00PF0U0A30G

Preview

CXB1304-0000-00PF0U0A30G: DescriptionHigh Power LED - White CXA GEN 2 WHITE; CategoryLED optoelectronic/LED LED lighting The LED emitter High power LED - white; File Size3MB，42 Pages; ManufacturerCree; Websitehttp://www.cree.com/; Environmental Compliance

Download Datasheet Parametric View All

CXB1304-0000-00PF0U0A30G Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CXB1304-0000-00PF0U0A30G	-	-	View	Buy Now

CXB1304-0000-00PF0U0A30G Overview

High Power LED - White CXA GEN 2 WHITE

CXB1304-0000-00PF0U0A30G Parametric

Parameter Name	Attribute value
Maker	Cree
Product Category	High Power LED - White
product	White CoB LEDs
Installation style	SMD/SMT
Package/box	COB - Chip-on-Board
lighting color	White (Warm White)
Wavelength/Color Temperature	3000 K
brightness	-
Luminous flux/radiant flux	475 lm
Color Rendering Index - CRI	90
display angle	115 deg
Lens color/type	Tinted, Clear
If - forward current	200 mA
Vf - forward voltage	18 V
length	13.35 mm
width	13.35 mm
high	1.7 mm
series	CXB1304
Encapsulation	Tray
Configuration	-
type	LED Array
Factory packaging quantity	100

Preview

Download Datasheet

View All

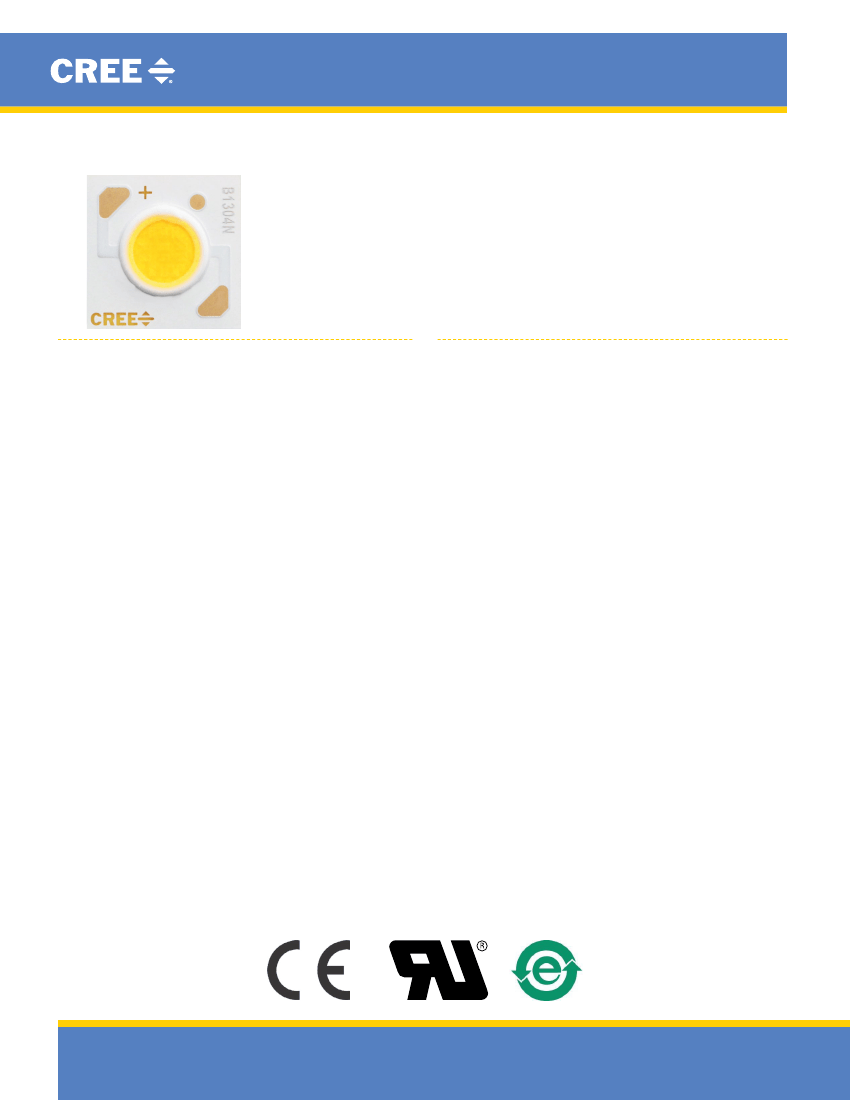

CLD-DS116 Rev 5C

Product family data sheet

Cree

XLamp

CXB1304 LED

ProDuCt DEsCriPtion

XLamp

CXA2 LED Arrays lead the industry in efficacy and

reliability for ceramic‑based COB LEDs. Cree CXA2 LEDs easily

deliver TM-21 lifetimes well beyond L90 60,000 hours under a

wide range of operating conditions. CXA2 LED Arrays share the

same physical design as XLamp CXA and CMA LED families,

allowing lighting manufacturers to leverage the existing optical,

mechanical and electrical design elements to accelerate time to

market without additional cost.

CXA2 Standard Density LeD Arrays are now available in two

different versions: Standard and eTone™ LEDs. The eTone

version delivers beautiful 90 CRI light quality at the same efficacy

as today’s standard 80 CRI LEDs.

fEaturEs

•

6‑mm optical source

Mechanical and optical design consistent with other CXA13

LeDs

Cree easyWhite

2‑, 3‑ and 5‑step binning

Premium Color 2‑ and 3‑step binning

Standard & Premium Color LeDs available in 70, 80, 90 and

95 CRI minimum options

eTone™ LeDs available in 90 CRI minimum option

Forward voltage options: 9‑V class, 18‑V class & 36‑V class

85 °C binning and characterization

Extremely uniform color over viewing angle

Top‑side solder connections

Thermocouple attach point

NEMA SSL‑3 2011 standard flux bins

RoHS and REACh compliant

recognized component (E349212)

WWW.CREE.Com/XLAmp

, Cree logo, XLamp

and EasyWhite

are registered trademarks and eTone™ is a trademark of Cree, Inc. UL

and the UR logo are registered trademarks of UL LLC.

Cree, Inc.

4600 Silicon Drive

Durham, NC 27703

USA Tel: +1.919.313.5300

XLamp

CXB1304 LED

taBLE of ContEnts

Characteristics ....................................................................................................................................................................................................... 3

Operating Limits ..................................................................................................................................................................................................... 4

Flux Characteristics, Order Codes & Bins ‑ Standard LEDs ‑ 9 V .........................................................................................................................

Flux Characteristics, Order Codes & Bins ‑ Standard LEDs, Premium Color ‑ 9 V ............................................................................................

Flux Characteristics, Order Codes and Bins ‑ eTone™ LEDs ‑ 9 V .....................................................................................................................

Flux Characteristics, Order Codes & Bins ‑ Standard LEDs ‑ 18 V.....................................................................................................................

Flux Characteristics, Order Codes & Bins ‑ Standard LEDs, Premium Color ‑ 18 V..........................................................................................

Flux Characteristics, Order Codes and Bins ‑ eTone™ LEDs ‑ 18 V ...................................................................................................................

Flux Characteristics, Order Codes & Bins ‑ Standard LEDs ‑ 36 V.....................................................................................................................

Flux Characteristics, Order Codes & Bins ‑ Standard LEDs, Premium Color ‑ 36 V..........................................................................................

Flux Characteristics, Order Codes and Bins ‑ eTone™ LEDs ‑ 36 V ...................................................................................................................

Relative Spectral Power Distribution ‑ Standard LEDs.......................................................................................................................................

Relative Spectral Power Distribution ‑ Standard LEDs, Premium Color............................................................................................................ 23

Relative Spectral Power Distribution ‑ eTone™ LEDs ......................................................................................................................................... 24

Electrical Characteristics .....................................................................................................................................................................................

Relative Luminous Flux ........................................................................................................................................................................................

Typical Spatial Distribution.................................................................................................................................................................................. 30

Performance Groups ‑ Brightness ...................................................................................................................................................................... 30

Performance Groups ‑ Chromaticity ................................................................................................................................................................... 31

Premium Color Performance Groups ‑ Chromaticity ......................................................................................................................................... 32

Cree easyWhite

Bins Plotted on the 1931 CIE Color Space ............................................................................................................................ 33

Cree Premium Color Bins Plotted on the 1931 CIE Color Space ...................................................................................................................... 34

Bin and Order Code Formats ............................................................................................................................................................................... 36

Mechanical Dimensions ...................................................................................................................................................................................... 37

Thermal Design

.................................................................................................................................................................................................... 38

Notes

.................................................................................................................................................................................................................... 40

Packaging ............................................................................................................................................................................................................. 41

, Cree logo, XLamp

and EasyWhite

are registered trademarks and eTone™

is a trademark of Cree, Inc. UL

and the UR logo are registered trademarks of UL LLC.
