10070D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Test and measurement> Test equipment accessories> The test probe> 10070D

10070D: DescriptionTest probe PASSIVE PROBE 20MHz 1:1; CategoryTest and measurement Test equipment accessories The test probe; File Size3MB，36 Pages; ManufacturerKeysight; Websitehttps://www.keysight.com; Environmental Compliance

Download Datasheet Parametric View All

10070D Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	10070D	-	-	View	Buy Now

10070D Overview

Test probe PASSIVE PROBE 20MHz 1:1

10070D Parametric

Parameter Name	Attribute value
Maker	Keysight
Product Category	test probe
Equipment type	Passive Probe
bandwidth	20 MHz
Voltage rating	300 V
Description/Function	Oscilloscope Probe
product	Passive Probe
Factory packaging quantity	1

Preview

Download Datasheet

View All

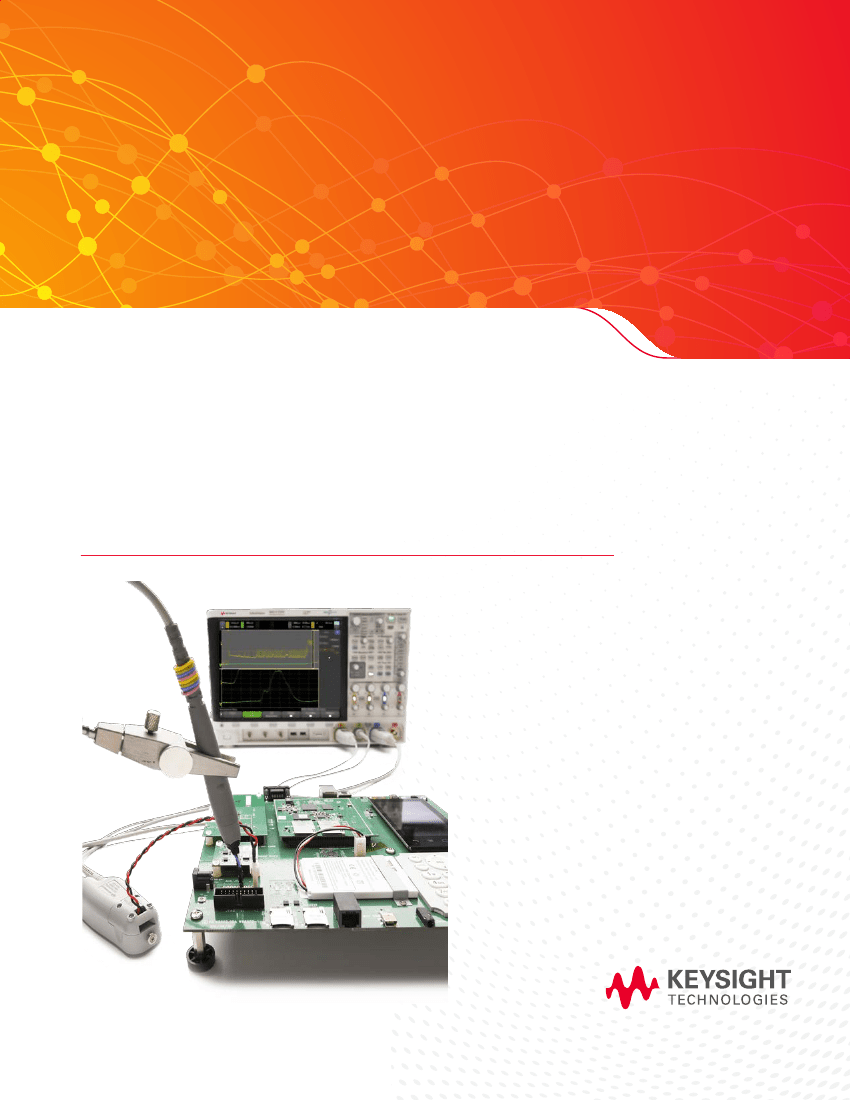

SELECTION GUIDE

InfiniiVision Oscilloscope

Probes and Accessories

For 1000 X-, 2000 X-, 3000A/T X-, 4000 X-, 6000 X-,

5000, 6000, and 7000 Series

Introduction

To achieve the best results from your scope, you need the right probes and accessories for your particular application. That is why

Keysight Technologies, Inc. offers a complete family of innovative probes and accessories for InfiniiVision oscilloscopes. For the most

up-to-date and complete information about Keysight’s accessories, please visit our Web site at:

www.keysight.com/find/probes

Table of Contents

Introduction..................................................................................................................................................02

Probe Compatibility Table ...........................................................................................................................03

Passive Probes .............................................................................................................................................05

Extreme Temperature Passive Probe ..........................................................................................................09

High-voltage Passive Probes ...................................................................................................................... 10

InfiniiMax Active Probes and Accessories................................................................................................... 11

InfiniiMode Active Probes and Accessories ................................................................................................ 13

High-voltage Differential Active Probes ..................................................................................................... 15

Single-ended Active Probes ........................................................................................................................ 19

Mixed Signal Oscilloscope Logic Probes.....................................................................................................21

Clamp-on Current Probes ...........................................................................................................................23

N7040A/41A/42A Rogowski Coil AC Current Probes .................................................................................27

High-sensitivity Current Probes ..................................................................................................................28

Wedge Probe Adapters ...............................................................................................................................30

Miscellaneous Accessories ..........................................................................................................................31

T2A Probe Interface Adapter ......................................................................................................................33

Recommended Probes for Low-/Mid-speed Bus Measurements ..............................................................34

Find us at

www.keysight.com

Page 2

Passive Probes

– Designed for optimal performance with your Keysight InfiniiVision Series oscilloscopes

– 1:1 and 10:1 attenuation ratio

– 20 to 700 MHz

Rugged, high-quality probes at a reasonable price

Keysight 10070-family passive probes are a great choice if you are looking for high quality at

a very reasonable price. These general-purpose probes are designed specifically to give you

optimal performance with your InfiniiVision Series oscilloscopes. Ruggedized for general-

purpose measurements, they feature a durable cable and a solid stainless steel probe body

encased with a hard, fracture-resistant plastic. They are designed and tested to ensure the

probes operate in the toughest of conditions

The N28xxA/B low-cost, general-purpose passive probes provide up to 500 MHz bandwidth

and feature a high input resistance of 10 MΩ for low probe loading. These probes provide a

10:1 attenuation ratio except for the N2889A, which provides a switch in the probe handle for

switching the attenuation ratio between 1:1 and 10:1. The N284xA and N2853A are the new

version of passive probes with improved frequency response over N2862B/63B/90A probes.

These probes can be used in place of existing N2862B/63B/90A for better performance. The

N2853A is a 10:1 passive probe with 2 m cable length for extended cable connection.

The N2873A/N2894A are 500-MHz/700 MHz 10:1 miniature passive probes that can be used

with all InfiniiVision Series. Compact 2.5-mm probe head diameter, low input capacitance,

and various fine-pitch probe tip accessories make the N2873A/N2894A passive probes ideal

for probing densely populated IC components or surface-mount devices used in today’s

high-speed digital applications. The N2894A provides 700 MHz system bandwidth when used

in conjunction with the 4000 X- and 6000 X-Series ≥ 1 GHz models. For more information

about N2870A Series passive probes and accessories, refer to Keysight’s literature number,

5990-3930EN.

The N2140A 200 MHz and N2142A 75 MHz low-cost passive probes are high-impedance

probes with switchable attenuation ratio (1:1 and 10:1). These are compatible with the Keysight

InfiniiVision EDUX1002A/G and DSOX1102A/G oscilloscopes or similar oscilloscopes with

1 Mohm BNC input.

Find us at

www.keysight.com

Page 5
