HCJV1-805UK datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> Modular connectors/Ethernet connector> HCJV1-805UK

Preview

HCJV1-805UK: DescriptionModular Connector/Ethernet ConnectorUnshielded 1x1 RJ45 Vertical NO LED; CategoryThe connector Modular connectors/Ethernet connector; File Size446KB，3 Pages; ManufacturerHALO Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

HCJV1-805UK Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HCJV1-805UK	-	-	View	Buy Now

HCJV1-805UK Overview

Modular Connector/Ethernet ConnectorUnshielded 1x1 RJ45 Vertical NO LED

HCJV1-805UK Parametric

Parameter Name	Attribute value
Maker	HALO Electronics
Product Category	Modular Connector/Ethernet Connector
product	Modular Jacks
USOC code	RJ45
Number of locations	8 Position
Number of ports	1 Port
Installation style	Mounting Peg
Termination type	Through Hole
shield	Unshielded
Current rating	1.5 A
Voltage rating	125 V
Minimum operating temperature	- 40 C
Maximum operating temperature	+ 85 C
series	HCJV1-UK
Encapsulation	Tray
Contact plating	Gold
Type	Female
Installation angle	Straight
Number of contacts	8 Contact
Flammability rating	UL 94 V-0
Operation cycle	750 Cycle
Factory packaging quantity	110

Preview

Download Datasheet

View All

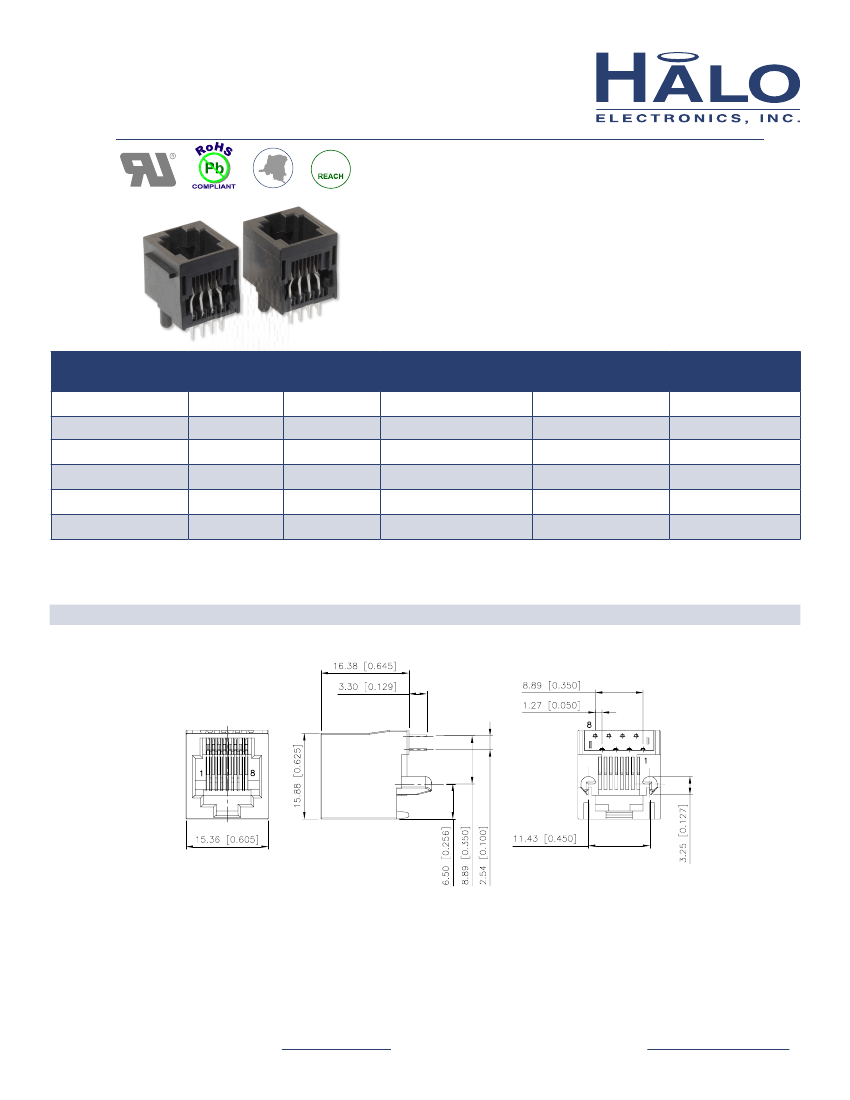

Unshielded Vertical 1x1 RJ45

8P/8C Vertical Unshielded RJ45 Ethernet Connectors

Conflict

FREE

ü

Product Features:

Unshielded RJ45 Connectors

Minimum of 750 Mating Cycles

Multiple Gold Contact Plating Options

DWV - 1000VAC Contact to Contact

Current Rating - 1.5A

Voltage Rating - 125V

UL94V-0 Flammability Rating

Part Number

HCJV1-802UK

HCJV1-804UK

HCJV1-805UK

HCJV1-812UK

HCJV1-814UK

HCJV1-815UK

Mechanical

A

B

Contact Gold

Plating (min)

6µ”

30µ”

50µ”

6µ”

30µ”

50µ”

Latch Orientation

Vertical - Top Entry

Operating

Temp Range

-40˚C to +85˚C

Panel Stops

No

Yes

Notes:

1. Shielded and alternate footprint variations available. Please contact the factory for additional information.

2. Part specific datasheets available upon request.

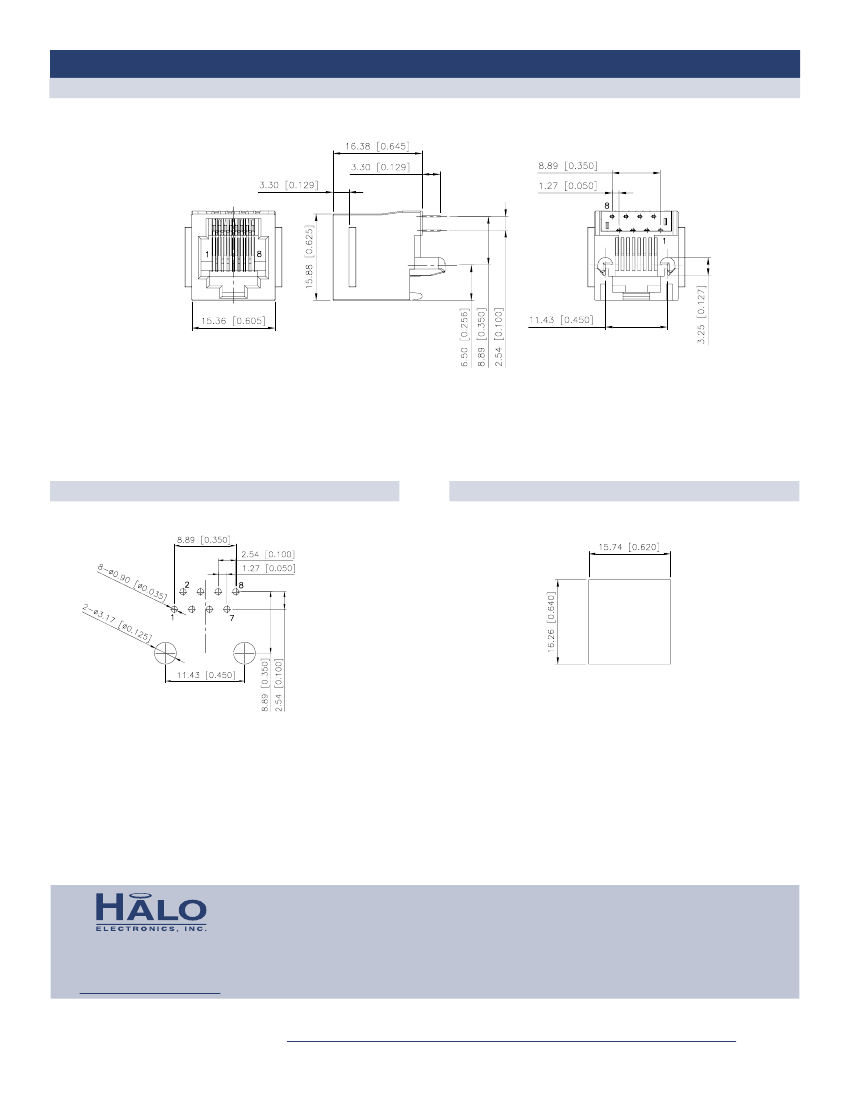

A - Mechanical (w/o panel stops)

DIMENSIONS: mm [inch]

TOLERANCE: .xx ±0.25 [0.010]

.x ±0.30 [0.012]

For additional information contact your

local representative,

or HALO’s support staff at (650) 903-3800 or

info@haloelectronics.com

HCJV1-805UK Related Products

	HCJV1-805UK	HCJV1-815UK	HCJV1-804UK	HCJV1-814UK	HCJV1-802UK	HCJV1-812UK
Description	Modular Connector/Ethernet ConnectorUnshielded 1x1 RJ45 Vertical NO LED	Modular Connector/Ethernet ConnectorUnshielded 1x1 RJ45 Vertical NO LED	Modular Connector/Ethernet ConnectorUnshielded 1x1 RJ45 Vertical NO LED	Modular Connector/Ethernet ConnectorUnshielded 1x1 RJ45 Vertical NO LED	Modular Connector/Ethernet ConnectorUnshielded 1x1 RJ45 Vertical NO LED	Modular Connector/Ethernet ConnectorUnshielded 1x1 RJ45 Vertical NO LED
Maker	HALO Electronics	HALO Electronics	HALO Electronics	HALO Electronics	HALO Electronics	HALO Electronics
Product Category	Modular Connector/Ethernet Connector	Modular Connector/Ethernet Connector	Modular Connector/Ethernet Connector	Modular Connector/Ethernet Connector	Modular Connector/Ethernet Connector	Modular Connector/Ethernet Connector
product	Modular Jacks	Modular Jacks	Modular Jacks	Modular Jacks	Modular Jacks	Modular Jacks
USOC code	RJ45	RJ45	RJ45	RJ45	RJ45	RJ45
Number of locations	8 Position	8 Position	8 Position	8 Position	8 Position	8 Position
Number of ports	1 Port	1 Port	1 Port	1 Port	1 Port	1 Port
Installation style	Mounting Peg	Mounting Peg	Mounting Peg	Mounting Peg	Mounting Peg	Mounting Peg
Termination type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
shield	Unshielded	Unshielded	Unshielded	Unshielded	Unshielded	Unshielded
Current rating	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A
Voltage rating	125 V	125 V	125 V	125 V	125 V	125 V
Minimum operating temperature	- 40 C	- 40 C	- 40 C	- 40 C	- 40 C	- 40 C
Maximum operating temperature	+ 85 C	+ 85 C	+ 85 C	+ 85 C	+ 85 C	+ 85 C
series	HCJV1-UK	HCJV1-UK	HCJV1-UK	HCJV1-UK	HCJV1-UK	HCJV1-UK
Encapsulation	Tray	Tray	Tray	Tray	Tray	Tray
Contact plating	Gold	Gold	Gold	Gold	Gold	Gold
Type	Female	Female	Female	Female	Female	Female
Installation angle	Straight	Straight	Straight	Straight	Straight	Straight
Number of contacts	8 Contact	8 Contact	8 Contact	8 Contact	8 Contact	8 Contact
Flammability rating	UL 94 V-0	UL 94 V-0	UL 94 V-0	UL 94 V-0	UL 94 V-0	UL 94 V-0
Operation cycle	750 Cycle	750 Cycle	750 Cycle	750 Cycle	750 Cycle	750 Cycle
Factory packaging quantity	110	100	110	100	110	100
