REVISIONS
H
1.94 0.077
8.89 0.350
1.27 0.050
0.41 0.016
REV
DESCRIPTION, ECN, EAR NO.
DATE
APP'D
A
B
PROPOSAL DRAWING
PROPOSAL DRAWING
JUN18/15 Lawrence
MAY0818 Lawrence
1
13.35 0.526
1
1.20 0.047
14.58 0.574
SEE NOTE 2
4.45 0.175
2
2
3.14 0.123
4.34 0.171
5.40 0.213
16.08 0.633
9.20 0.362
8 0.315
15.20 ±0.10 0.598 ±0.004
3
PCB
CONNECTOR
15.34 0.604
REF. 1 0.039
KAPTON
1. MATERIALS:
HOUSING: HIGH TEMPERATURE ENGINEERING THERMOPLASTIC,
FLAMMABILITY RATING UL94 V-0, COLOUR: BLACK
CONTACTS: PHOSPHOR BRONZE
PLATING: SELECTIVE GOLD PLATING ON MATING SURFACES;
100u"[2.54 MICRONS]MIN. MATTE TIN ON SOLDER TAILS
50u"[1.27 MICRONS]MIN. NICKEL UNDERPLATING OVERALL
SHIELD: STAINLESS STEEL WITH MATTE TIN PLATING
3
4
2 0.079
3 0.118
4
1.27 0.050
8.89 0.350
+0.05
+0.002
0.76 - 0.02 0.030 - 0.001
1 0.039
1 0.039
2. COPLANARITY SPECIFICATION:
WITH THE MODULAR JACK SITTING ON A LEVEL SURFACE, THE
MAXIMUM GAP BETWEEN THE LEVEL SURFACE AND ALL TERMINAL
TAILS AND BOTH FITTING NAILS IS 0.10[.004].
AMPHENOL PART NUMBER: RJE23-188-3X1X-X
GOLD PLATING OPTION
1= 6u" [0.15 MICRONS] GOLD PLATING
2= 15u" [0.38 MICRONS] GOLD PLATING
3= 30u" [0.76 MICRONS] GOLD PLATING
4= 50u" [1.27 MICRONS] GOLD PLATING
MODIFIER CODE
5= WITH KAPTON TAPE
6= WITHOUT KAPTON TAPE
RECOMMENDED P.C.B LAYOUT
COMPONENT SIDE OF BOARD
TOLERANCE: +/- 0.05[0.002]
R0 . 2
5 0.0
10
16.60 0.654
5
PCB
5
15.10 0.594
PACKAGING OPTION
BLANK= STANDARD (TRAY WITHOUT MYLAR)
T= TAPE AND REEL
UNLESS SPECIFIED OTHERWISE
PRIMARY UNITS
SECONDARY
DRAWN
MILLIMETERS
CHECKED
INCHES
M.E. APP'D
Q.A. APP'D
DWG APPR.
ENG. REL. NO.
REF.
THIRD
ANGLE
PROJECTION
Justin Feng
L.Chan
JUN18/15
JUN18/15
Amphenol Canada Corp.
www.amphenolcanada.com
6
6
REFERENCE IN PARENTHESES
PANEL
RECOMMENDED PANEL CUTOUT
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION AND SUCH INFORMATION MAY NOT BE DISCLOSED TO OTHERS FOR ANY PURPOSE OR USED FOR MANUFACTURING
PURPOSES WITHOUT WRITTEN PERMISSION FROM AMPHENOL CANADA CORP.
A
B
C
D
GENERAL TOLERANCES FOR MM
1 DECIMAL PLACE
2 DECIMAL PLACES
3 DECIMAL PLACES
ANGULAR DEGREES
0.38
0.25
0.XXX
1.5
TITLE:

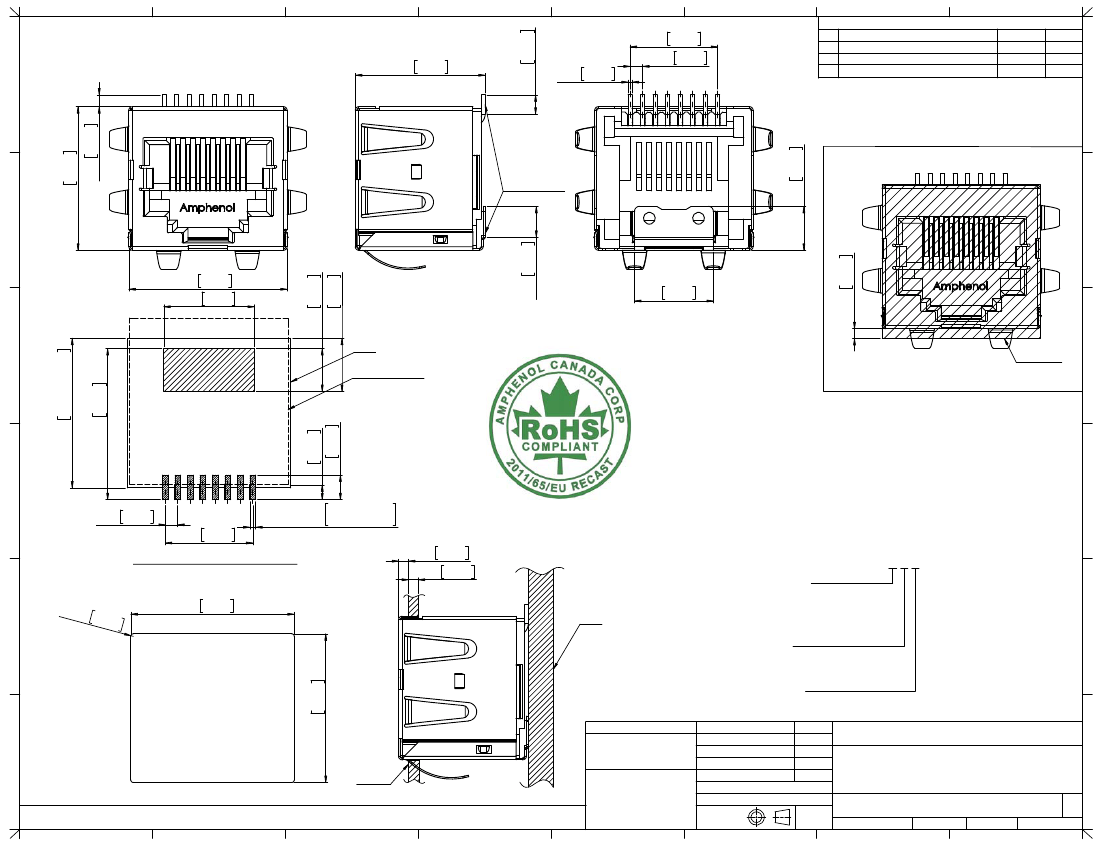

RJ45 SINGLE PORT MODULAR JACK,
TOP ENTRY, 8P8C, SURFACE MOUNT,
SHIELD WITH TABS-RoHS COMPLIANT
DWG. NO.
DO NOT
SCALE
DRAWING
REV
P-RJE23-188-3X1X-X
CODE ID NO.
B
SHEET
03554
DWG SIZE:
G
C
SCALE:
5:1
H
1
OF 1
E
F
