34_SK-50-0-51/199_NE

Description
RF Adapters - Within Series
CategoryThe connector    The connector
File Size105KB，1 Pages
ManufacturerHUBER+SUHNER
Download Datasheet Parametric View All

34_SK-50-0-51/199_NE Overview

RF Adapters - Within Series

34_SK-50-0-51/199_NE Parametric

Parameter NameAttribute value
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Adapter typeSK-SK
Other featuresSTANDARDS: MIL-STD-348A/323
Body/casing typeJACK-JACK
Characteristic impedance50 Ω
Connector typeRF CONNECTOR ADAPTER
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE-FEMALE
Contact materialNOT SPECIFIED
Contact styleCOAX
Coupling typeTHREADED
DIN complianceNO
Durability500 Cycles
Filter functionNO
IEC complianceNO
insulator materialPPO PPE
MIL complianceYES
Installation methodSTRAIGHT
Maximum operating frequency40 GHz
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
Panel mountingYES
reliabilityCOMMERCIAL
voltage standing wave ratio1.42
Base Number Matches1

Preview

Download Datasheet

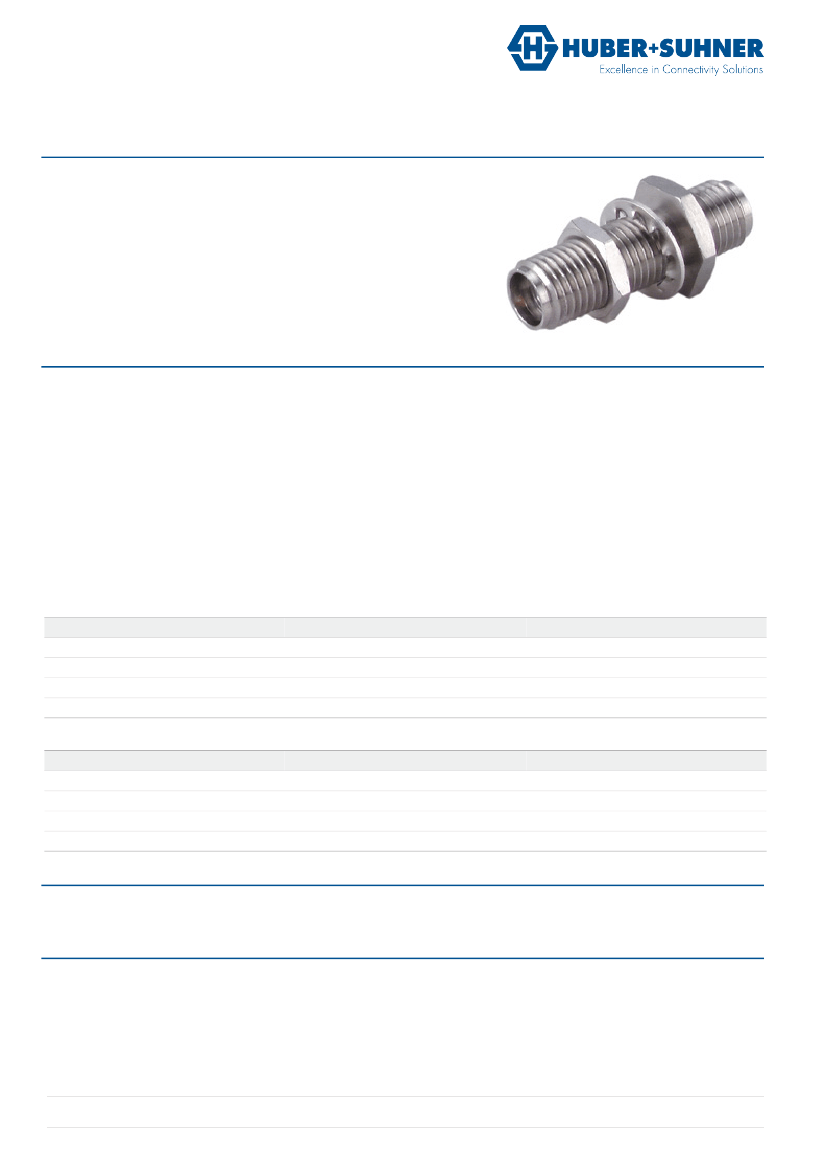

Data Sheet
Within Series Adaptor
34_SK-50-0-51/199_N
Description
Bulkhead adaptor jack/jack
SK jack (female) / SK jack (female)
For Test & Measurement applications
Precision adaptor
Interface standard
Series SK - MIL-STD-348A/323
Technical Data
Electrical Data
Impedance
Interface frequency max.
VSWR
50 Ω
40 GHz
DC - 40 GHz
≤ 1.02 + 0.01 f (GHz)
Mechanical Data
Number of matings
Weight
500
0.0042 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-40 °C to 125 °C
compliant
Material Data
Interface - SK jack (female)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Brass
Stainless Steel
Stainless Steel
PPE (Polyphenylene ether, PPO)
Surface Plating
Gold Plating (Nickel underplated)
Interface - SK jack (female)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Brass
Stainless Steel
Stainless Steel
PPE (Polyphenylene ether, PPO)
Surface Plating
Gold Plating (Nickel underplated)
Related Documents
Outline drawing
Mounting hole
DOU-00013638
DOU-00008731
Ordering Information
Single package
34_SK-50-0-51/199_NE
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000194214 S / PDO F / date of publication: 17.11.2015 17:14:52 / uncontrolled copy
Page 1/1
