33_PC24-SK-50-2/199_NE Overview

RF Adapters - Between Series

33_PC24-SK-50-2/199_NE Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Adapter typePC2.4-SK
Other featuresSTANDARD: IEC 60169-38
Body/casing typePLUG-JACK
Characteristic impedance50 Ω
Connector typeRF CONNECTOR ADAPTER
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE-FEMALE
Contact materialBERYLLIUM COPPER
Coupling typeTHREADED
DIN complianceNO
Filter functionNO
IEC complianceYES
insulator materialPPO PPE
MIL complianceYES
Maximum operating frequency40 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
voltage standing wave ratio1.06
Base Number Matches1

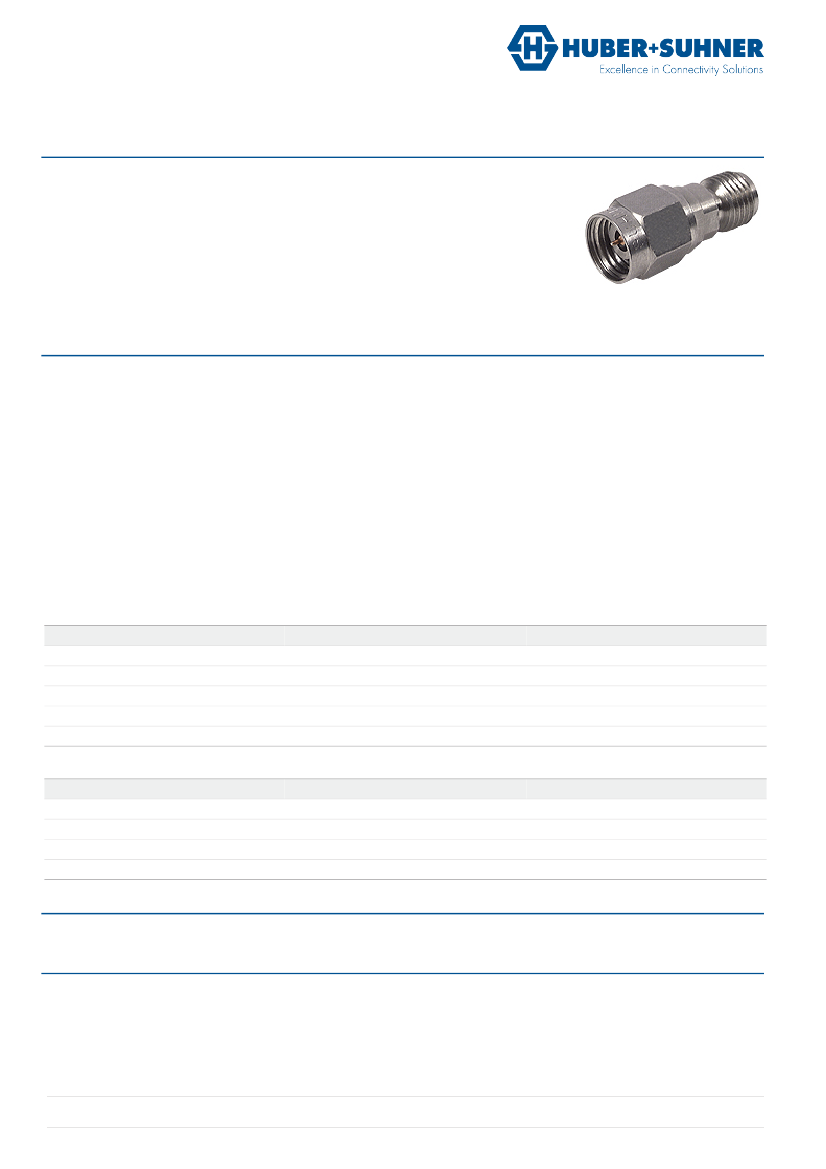

Data Sheet
Between Series Adaptor
33_PC24-SK-50-2/199_N
Description
Adaptor plug/jack
PC 2.4 plug (male) / SK jack (female)
For Test & Measurement applications
Precision adaptor
Interface standards
Series PC 2.4 - IEC 60169-38
Series SK - MIL-STD-348A/323
Technical Data
Electrical Data
Impedance
Interface frequency max.
Frequency range
Return loss
Electrical length
50 Ω
40 GHz
DC to 40 GHz
≥ 25 dB
16.1 mm
Mechanical Data
Number of matings
Weight
500
0.0045 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-40 °C to 125 °C
compliant
Material Data
Interface - PC 2.4 plug (male)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Coupling nut
Material
Copper Beryllium Alloy
Stainless Steel
Stainless Steel
PPE (Polyphenylene ether, PPO)
Stainless Steel
Surface Plating
SUCOPRO Plating
Interface - SK jack (female)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Stainless Steel
Stainless Steel
PPE (Polyphenylene ether, PPO)
Surface Plating
SUCOPRO Plating
Related Documents
Outline drawing
DOU-00048046
Ordering Information
Single package
33_PC24-SK-50-2/199_NE
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000195304 W / PDO G / date of publication: 17.11.2015 17:14:57 / uncontrolled copy
Page 1/1
