5222117-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5222117-1

5222117-1: DescriptionRF Adapters - Within the Series BULKHEAD JK ADAPTER; CategoryThe connector The connector; File Size970KB，35 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

5222117-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5222117-1	-	-	View	Buy Now

5222117-1 Overview

RF Adapters - Within the Series BULKHEAD JK ADAPTER

5222117-1 Parametric

Parameter Name	Attribute value
Brand Name	TE Connectivity
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	7 weeks
Adapter type	BNC-BNC
Body/casing type	JACK-JACK
Characteristic impedance	75 Ω
Connector type	RF CONNECTOR ADAPTER
Contact to complete cooperation	NOT SPECIFIED
Contact material	NOT SPECIFIED
Contact style	COAX
Dielectric withstand voltage	1500VAC V
Durability	500 Cycles
insulator material	POLYMETHYLPENTENE
Installation method	STRAIGHT
Maximum operating frequency	2 GHz
Maximum operating temperature	85 °C
Minimum operating temperature	-65 °C
reliability	COMMERCIAL
Base Number Matches	1

Preview

Download Datasheet

View All

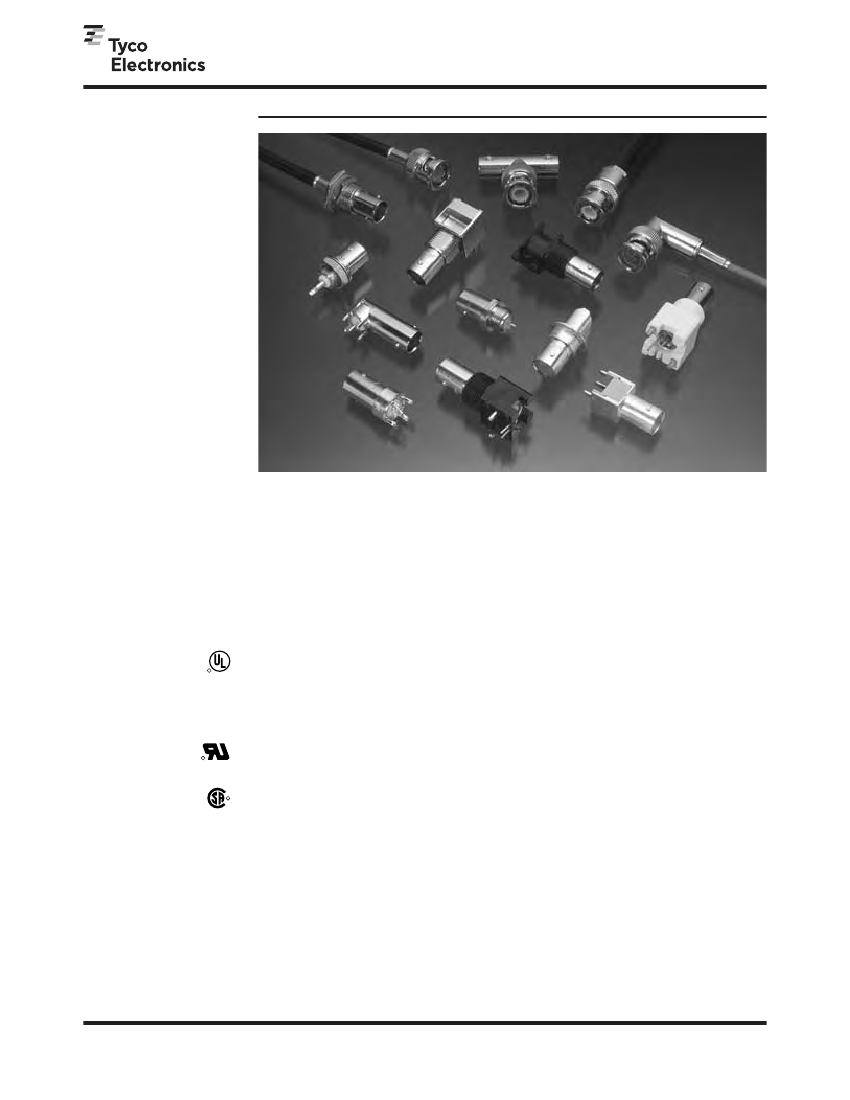

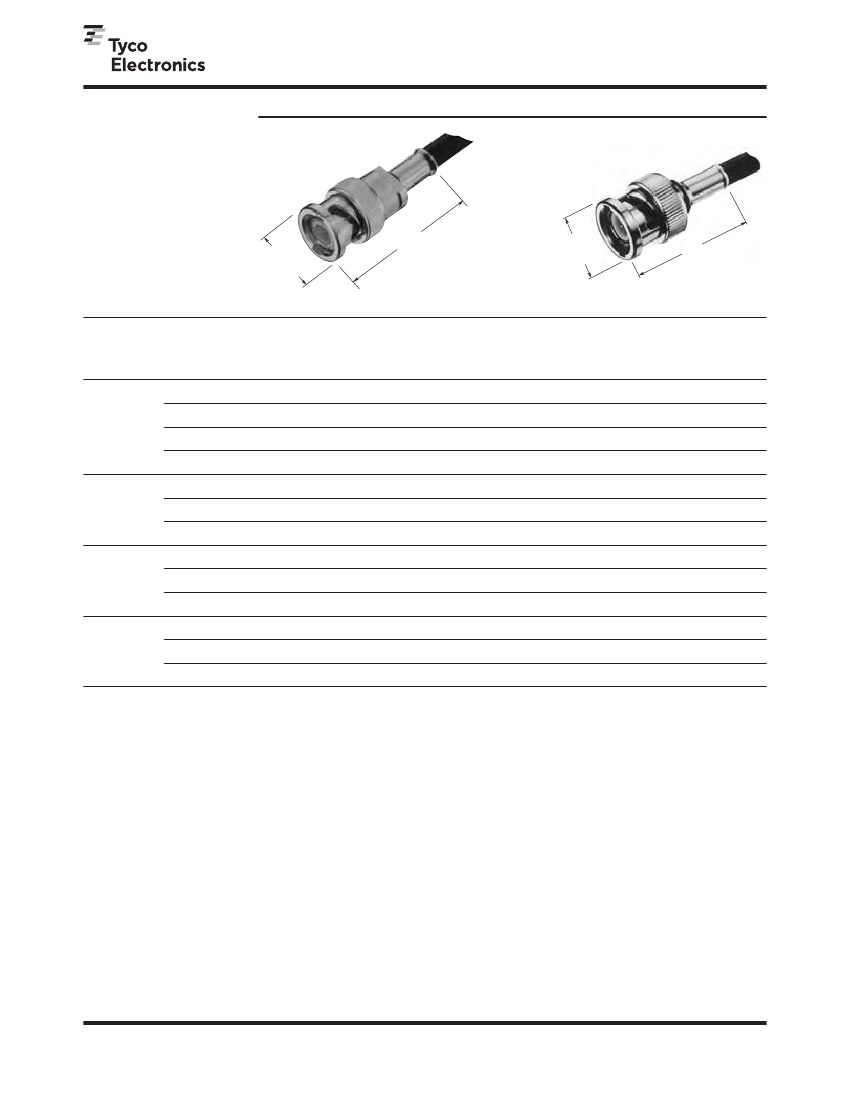

RF Coax Connectors

BNC Connectors (50 ohm/75 ohm)

Product Facts

■

Bayonet lock coupling for

quick connect/disconnect

Various connectors available

in 50 and 75 ohm versions

Fully intermateable with

comparable BNC UG/U

connectors

Full range of Hex Crimp

and O Crimp Products for

common coaxial cables.

Low VSWR

Single crimp connectors

offer one crimping operation

for fast application

Twist-on connectors require

no special tooling for

application to the cable

Field serviceable (Category

A) connectors qualified to

MIL-C-39012

Field replaceable (Category

C) plugs with captivated

center contact

Field replaceable plugs can

be terminated with industry

standard tooling

Tarnish resistant Nickel

finish available

Choice of different dielectrics

Listed under the Component

Program of Underwriters

Laboratories Inc.,

File No. E81956

■

The Tyco Electronics BNC

RF connector family with

bayonet locking coupling

provides highly reliable,

quick connect/disconnect

coaxial connections.

Exclusive single and

O crimp terminations allow

positive insulation grip

and require no soldering,

providing terminations at

a very low overall applied

cost.

Available in both 50 and 75

ohm versions, these con-

■

PC Board soldered

connectors are recognized

under the Component

Program of Underwriters

Laboratories Inc.,

File No. E81956

nectors feature numerous

styles including cable plugs

and jacks, adapters and

printed circuit board con-

nectors. In addition to a

variety of crimp type termi-

nations, connectors are fur-

nished in field replaceable

and twist-on styles. These

connectors accept a wide

range of coaxial cables and

are intermateable with

industry standard connec-

tors designed to MIL-C-

39012 specifications.

Tyco Electronics can also

supply low cost alternatives

with an extensive commer-

cial type product line. A

lower cost consumer series

product offers the capability

to supply center contacts in

strip form and allow for auto-

mated center contact crimp

technology. All connectors

are designed around the

mil-specifications, but utilize

low-cost materials, offering

comparable mechanical

and electrical performance.

■

Certified by Canadian

Standards

Association

File No. LR 7189
