82_MBX-50-0-3/111_NM datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 82_MBX-50-0-3/111_NM

Preview

82_MBX-50-0-3/111_NM: DescriptionRF Connector/Coaxial Connector; CategoryThe connector The connector; File Size103KB，1 Pages; ManufacturerHUBER+SUHNER; Environmental Compliance

Download Datasheet Parametric Compare View All

82_MBX-50-0-3/111_NM Overview

RF Connector/Coaxial Connector

82_MBX-50-0-3/111_NM Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	HUBER+SUHNER
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.236 inch
subject depth	0.197 inch
body length	0.236 inch
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact style	COAX
Coupling type	SNAP
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
insulator material	LIQUID CRYSTAL POLYMER
MIL compliance	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of ports	1
Maximum operating frequency	6 GHz
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Panel mounting	NO
reliability	COMMERCIAL
Shell material	BRASS
Terminal length	0.132 inch
Termination type	SOLDER
Total number of contacts	1

Preview

Download Datasheet

View All

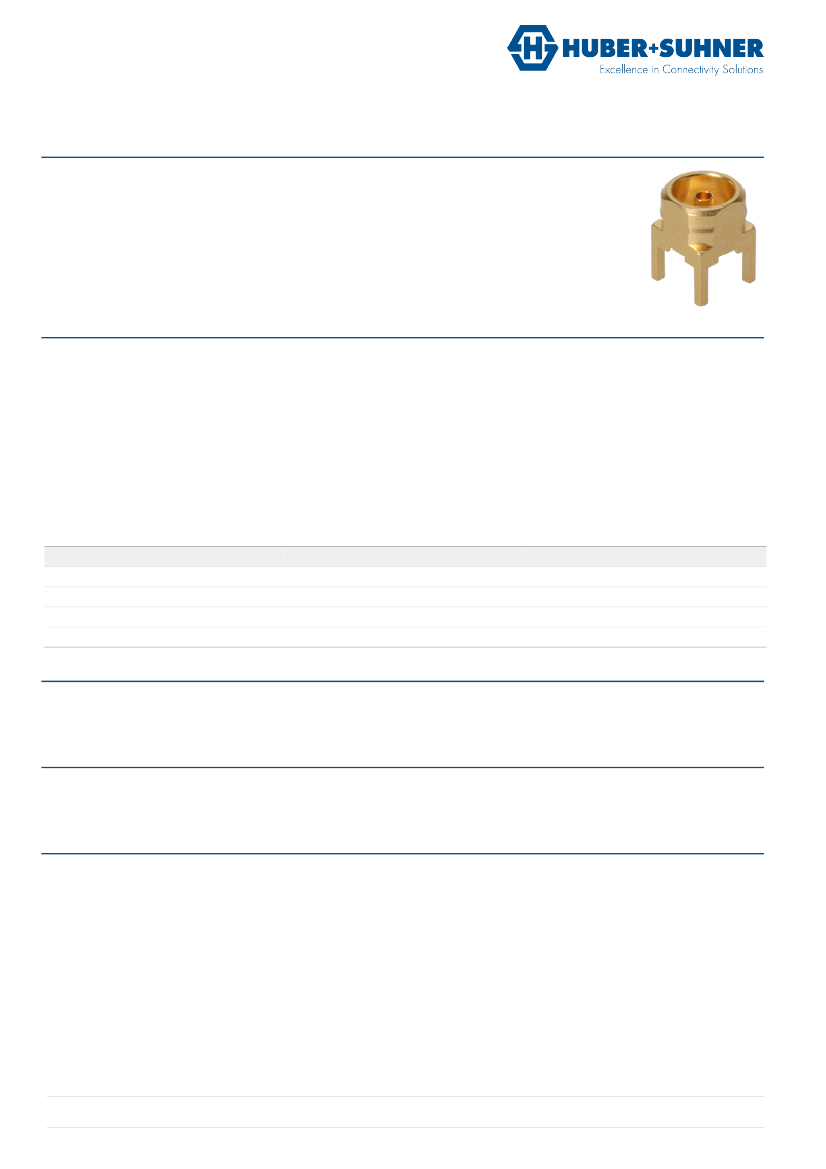

Data Sheet

Coaxial PCB Connector

82_MBX-50-0-3/111_N

Description

Straight PCB jack

Interface Standards

HUBER+SUHNER MBX

Technical Data

Electrical Data

Impedance

Interface frequency max.

50 Ω

6 GHz

Mechanical Data

Board mounting type

Weight

through holes

0.000725 kg

Environmental Data

Operating temperature

2011/65/EU (RoHS)

-55 °C to 155 °C

compliant

Material Data

Piece Parts

Centre contact

Outer contact

Body

Insulator

Material

Brass

LCP (Liquid crystal polymer)

Surface Plating

SUCOPRO Plating

82_MBX-50-0-3/111_NM Related Products

	82_MBX-50-0-3/111_NM	82_MBX-50-0-3/111_NE	82_MBX-50-0-3/111_NH
Description	RF Connector/Coaxial Connector	RF Connectors / Coaxial Connectors	RF Connector/Coaxial Connector
Is it Rohs certified?	conform to	conform to	conform to
Maker	HUBER+SUHNER	HUBER+SUHNER	HUBER+SUHNER
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
body width	0.236 inch	0.236 inch	0.236 inch
subject depth	0.197 inch	0.197 inch	0.197 inch
body length	0.236 inch	0.236 inch	0.236 inch
Body/casing type	JACK	JACK	JACK
Characteristic impedance	50 Ω	50 Ω	50 Ω
Connector type	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact style	COAX	COAX	COAX
Coupling type	SNAP	SNAP	SNAP
DIN compliance	NO	NO	NO
Durability	500 Cycles	500 Cycles	500 Cycles
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
insulator material	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER
MIL compliance	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of ports	1	1	1
Maximum operating frequency	6 GHz	6 GHz	6 GHz
Maximum operating temperature	155 °C	155 °C	155 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell material	BRASS	BRASS	BRASS
Terminal length	0.132 inch	0.132 inch	0.132 inch
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	1	1	1
