TECHNICAL DATA SHEET
1/3

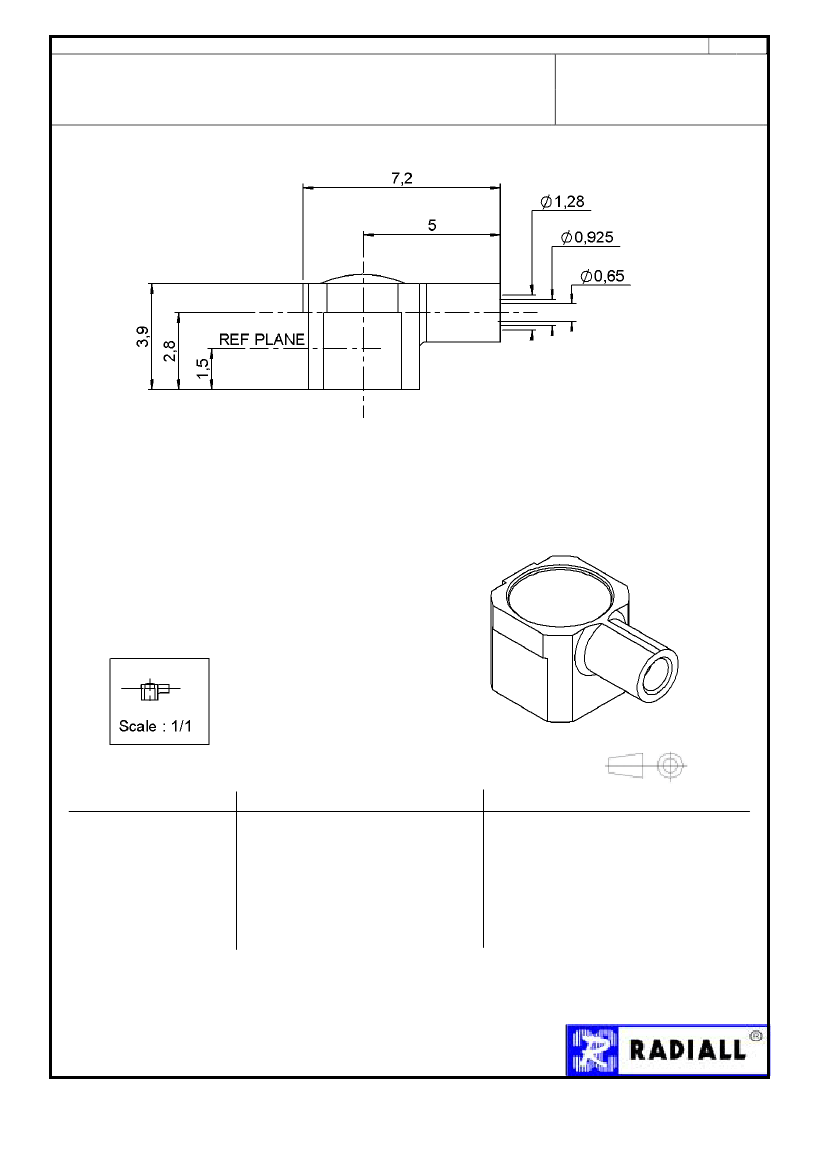

RIGHT ANGLE PLUG CRIMP TYPE
CABLE 1/50 S-BR + 1/75 S-BR
R209.351.020
Series :
MMS
All dimensions are in mm.
.
pn
.
ao
COMPONENTS
BODY
CENTER CONTACT
OUTER CONTACT
INSULATOR
GASKET
OTHERS PARTS
-
-
MATERIALS
ZINC ALLOY
BRASS
-
PTFE
-
-
-
-
NICKEL 2
NICKEL 2
-
PLATING
(µm)
-
-
-
Issue : 0704 F
In the effort to improve our products, we reserve the right to make changes judged to be
necessary.
TECHNICAL DATA SHEET
2/3
RIGHT ANGLE PLUG CRIMP TYPE
CABLE 1/50 S-BR + 1/75 S-BR
R209.351.020
Series :
MMS
PACKAGING
SPECIFICATION
Standard
1000
Unit
‘W’ option
Other
Contact us
ELECTRICAL CHARACTERISTICS
Impedance
50
Ω
Frequency
0-6
GHz
VSWR
* + 0,0000
x F(GHz) Maxi
Insertion loss
0.2
√F(GHz)
dB Maxi
RF leakage
-(
NA
- F(GHz)) dB Maxi
Voltage rating
50
Veff Maxi
Dielectric withstanding voltage
250
Veff mini
Insulation resistance
500
MΩ mini
Stripping
CABLE ASSEMBLY
a
2,10
b
1,90
c
0,00
d
0,00
e
3,10
f
0,00
mm
Assembly instruction
:
Recommended cable(s)
50 VMTX
75 VMTX
Characteristics indicated on this data sheet are those that can be
achieved with the highest performance cable. Intrinsic limitations of
the cable may diminish the performance of the assembly
MECHANICAL CHARACTERISTICS
Center contact retention
Axial force – Mating end
Axial force – Opposite end
Torque
8
N mini
8
N mini
NA
N.cm mini
Cable retention
- pull off
- torque
15
N mini
NA
N.cm
TOOLING
Part Number
.
Description
.
Hexagon
.
Recommended torque
Mating
Panel nut
Clamp nut
A/F clamp nut
Mating life
Weight
NA
NA
NA
0,0000
N.cm
N.cm
N.cm
mm
OTHER CHARACTERISTICS
*50 Ohms:1.2 à 2GHz, 75 Ohms:1.14 à 1Ghz
50
Cycles mini
0,2850
g
ENVIRONMENTAL
Operating temperature
Hermetic seal
Panel leakage
-40/+90
° C
NA
Atm.cm3/s
NA
Issue : 0704 F
In the effort to improve our products, we reserve the right to make changes judged to be
necessary.
TECHNICAL DATA SHEET
3/3
RIGHT ANGLE PLUG CRIMP TYPE
CABLE 1/50 S-BR + 1/75 S-BR
COMPONENTS
Cap
Insulator
Body
R209.351.020
Series :
MMS
e
a

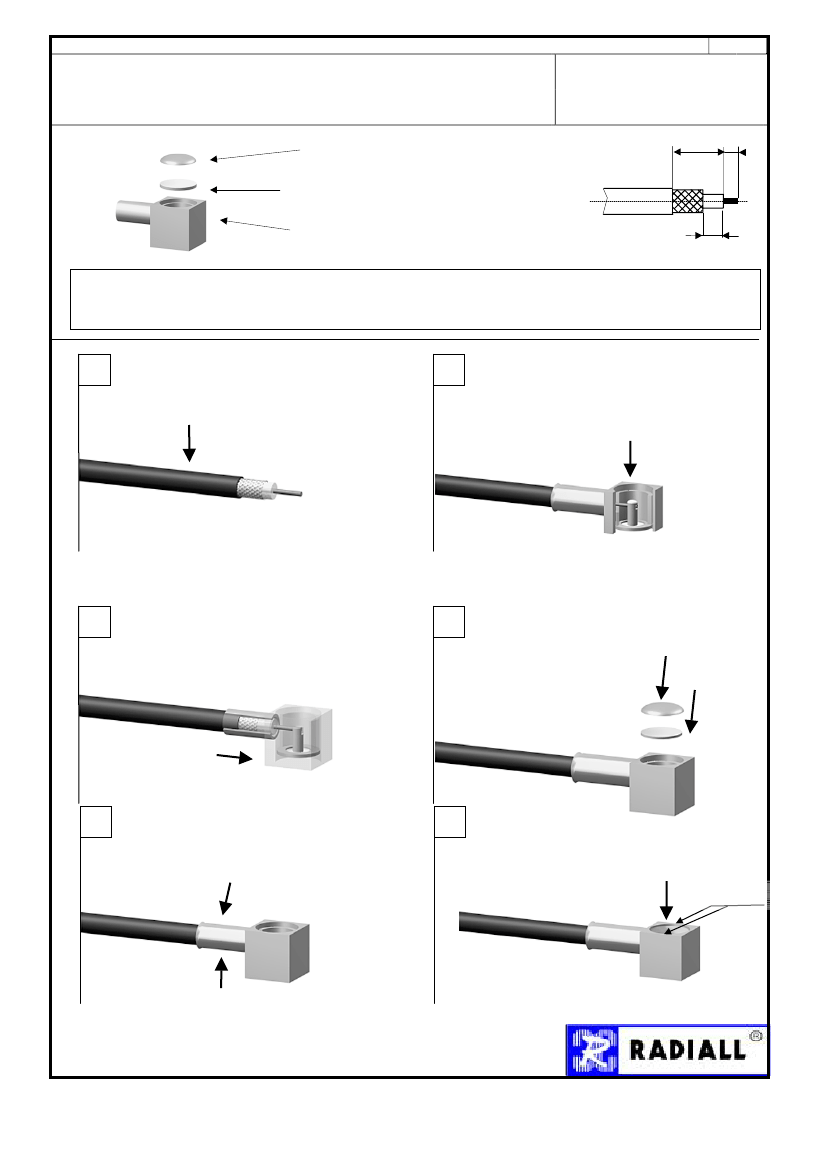

STRIPPING DIMENSIONS
b
« Procedure interne.Seuls les connecteurs cablés par RADIALL sont garantis. »
« Internal procedure.Only plugs assembled by RADIALL are under garantee »
1
Strip the cable.
4
Solder the inner conductor.
1
1
2
Introduce the cable into the body until contact with the body
shoulder.
5
Place the insulator into the body.
Place the cap into the body.
2
1
1
3
Crimp the body on the cable.
6
Press on the cap flush or slightly below the surface of the
body assembly and make two indents to complete
immobilization of the cap.
1
1
2 indents
Issue : 0704 F
In the effort to improve our products, we reserve the right to make changes judged to be
necessary.
