Subminiature microSwitcheS - Double break
83132 / 83133 / 83134
›
Double-break flexible leaf snap-action mechanism
›
Side, rear or on front face terminals
›
Momentary or maintained action (option)
›
Very long life
›
Ratings from 1 mA 4 Vc to 6 A 250 Va
›
Operating temperature -40 °C up to +150 °C
›
Wide choice of actuators on 2 symmetric fixing positions

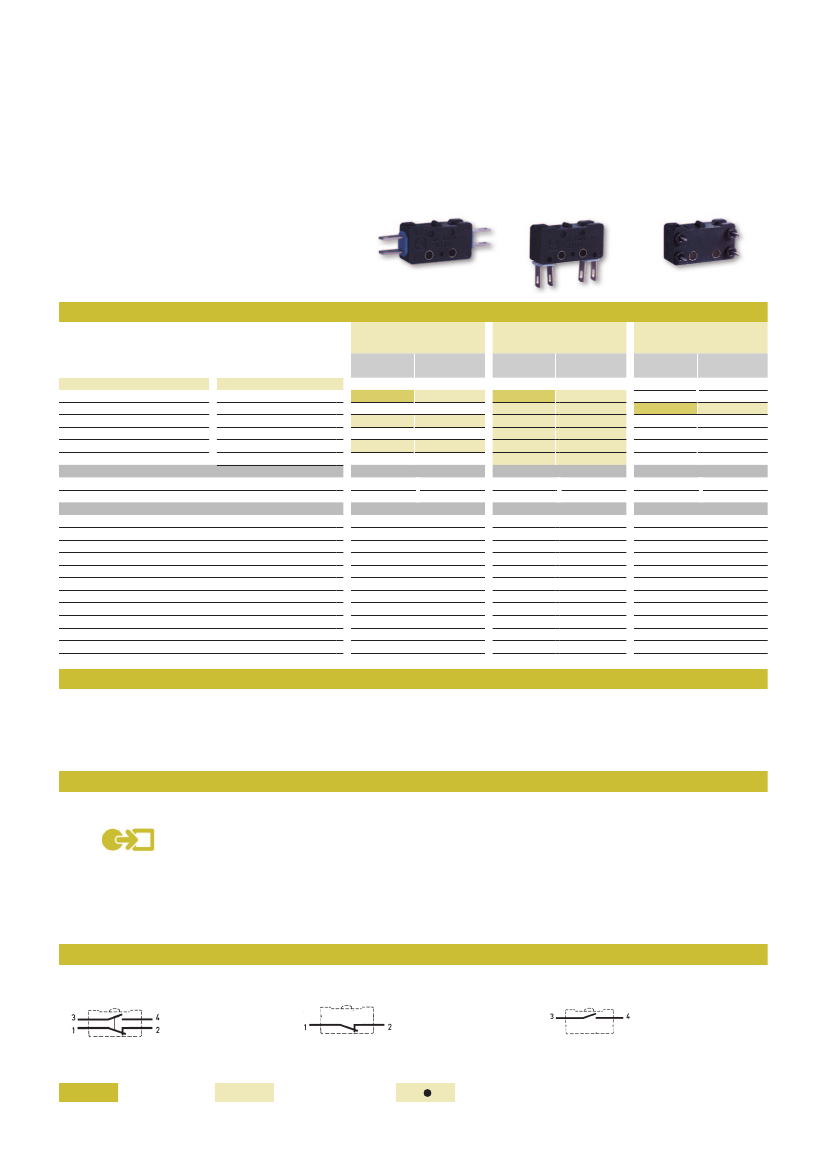

Main specifications
Side outputs
83132
Standard
Function
Connections
I (changeover)
W2
I (changeover)
X1
R (normally closed)
W2
R (normally closed)
X1
C (normally open)
W2
C (normally open)
X1
Electrical characteristics
Rating nominal / 250 V AC (A)
Rating thermal / 250 V AC (A)
Mechanical characteristics
Maximum operating force (N)
Min. Release force (N)
Max. Allowable overtravel force (N)
Rest position max. (mm)
Operating position (mm)
Differential travel (mm)
Min. overtravel (mm)
Ambient operating temperature (°C)
Mechanical life (operations)
Contact gap (mm)
Weight (g)
83132030
-
83132032
-
83132040
-
6
11
1.6
0.4
10
8.45
7.7
±0.2
0.35
±0.1
0.27
-40
➞
+125
10
7
0.3 x 2
1.8
Dual-current
(DORE)
83132053
-
●
Rear outputs
83133
Standard
83133035
83133045
83133042
●
Front face outputs
83134
Standard
-
83134001
-
-
-
-
6
11
1.6
0.4
10
8.10
7.35
±0.25
0.35
±0.1
0.27
-40
➞
+125
10
7
0.3 x 2
1.8
Dual-current
(DORE)
-
83134003
-
-
-
-
5*
Dual-current
(DORE)
83133073
83133052
83133210
●
●
●
-
●
83133050
●
-
5*
6
11
5*
1.6
0.4
10
8.45
7.7
±0.2
0.35
±0.1
0.27
-40
➞
+125
10
7
0.3 x 2
1.8
Additional specifications
- Case, Button: PA66 GF (UL 94-V0 / GWFI 960 °C / GWIT 775 °C)
- Moving blade: beryllium copper
- Contacts: silver, gold-plated silver (dual-current)
- Terminals: copper nickel
- Levers: stainless steel, polyamide roller
- Degree of protection: IP40 (mechanism)
- Proof tracking index: PTI 400
- Recommanded min actuating speed: 0.01 mm/s
Note: fixing holes are fitted with metal inserts
Product adaptations
›
Maintained action variants (bistable reset switch), with or without lever
›
2 or 3-pole assembly with single actuator. Optional mounting on metal plate (8331)
›
Special levers: special shapes and lengths
›
Plunger with ball (Ø 5 mm) for lateral approach from any direction
›
High operating temperature: max +150 °C
›
Applications in irradiated environment
›
Higher operating force: max 2.6 N
›
Larger overtravel: min 0.5 mm (SP4225)
›
Added overtravel and/or adjustable fixing by threaded barrel (see 83528 and 8354 Series)
›
cURus and NF approved versions up to 480 Va
Principles
Double break snap-action switch
Changeover - SPDT (form Za)
Normally closed - SPST-NC (form Y)
Normally open - SPST-NO (form X)
Both circuits must be used at same polarity
Standard product
Product made to order
Contact us
|
www.crouzet-switches.com
|2
|
microswitches
|
06/2016
Curves
Operating curve for types 83132 - 83133 - 83134
1
2
10
7
5
2
10
6
5
2
10
5
5
2
10
4
0,1 0,2 0,5 1 2
6
3
{
~
L = 5 ms
R
cos
ϕ
=
0,8
4
30V
250V~
5
B
C
D
E
F
Number of cycles
Resistive circuit
Inductive circuit
Mechanical life limit
Current in Amps
* Dual-current models are designed to operate equally well on low-current (1 mA 4 V minimum recommended) or medium-current (5 A maximum) circuits.
However, a given product should only be used to switch one type of circuit during its working life.

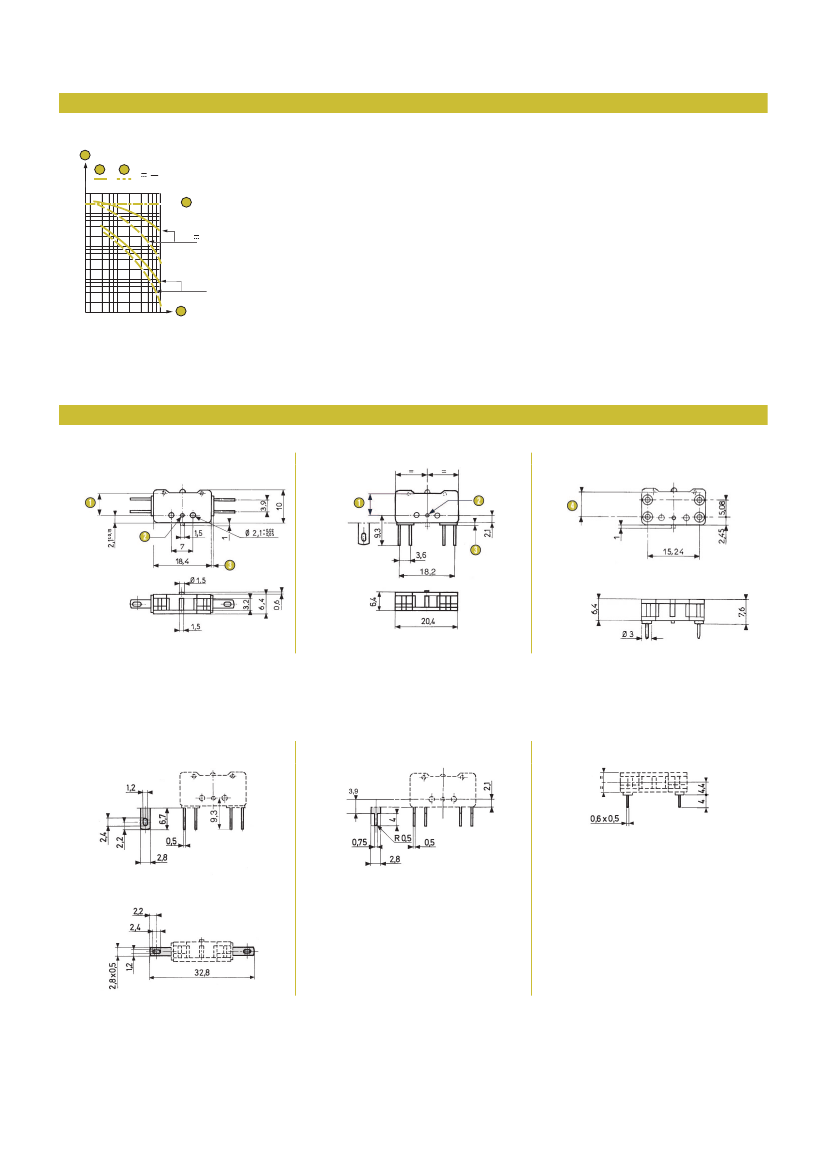

Dimensions
Product
83132
83133
83134
B
Total travel position = 7.35 max.
C
Ø1.5, depth 0.7
D
2 PTFE plates, thickness 0.8
E
Total travel position = 7 max.
Connections
W2 solder or quick-connect 2.8 x 0.5
(83132 - 83133)
X1 for PCB, straight output (83133)
X1 for PCB, straight output (83134)
|
www.crouzet-switches.com
|4
|
microswitches
|
06/2016

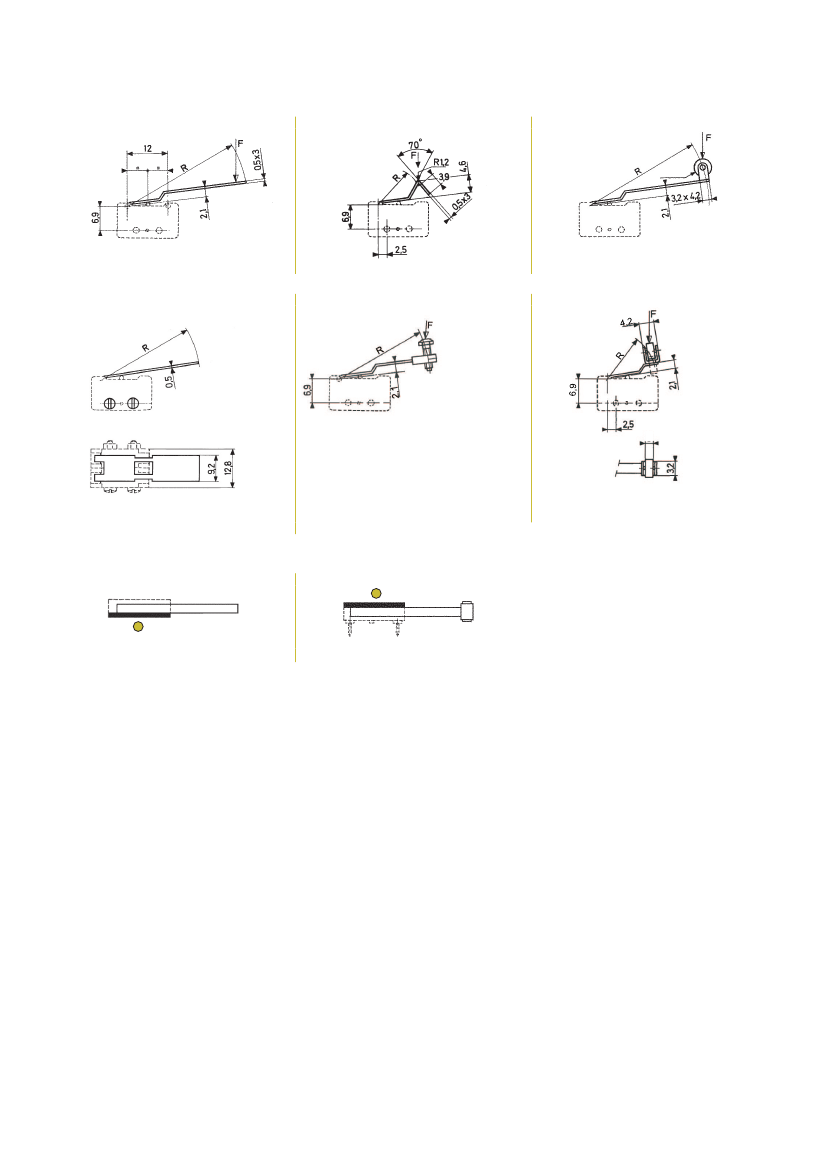

Actuators and mounting accessories
Part numbers for
standard actuators
Actuators
70514175
Flat
54A
R14.75
70514194
Flat
54A
R35.75
70514181
Roller
54E
R7.5
70514182
Roller
54E
R14.1
70514183
Roller
54E
R34.4
Operating position
Operating force max.
Release force min.
Pretravel max.
Differential travel
Total travel max.
mm
N
N
mm
mm
mm
83132
83133
9.5
±0.8
0.8
0.16
2.15
1
±0.3
2.8
83134
9.2
±0.8
83132
83133
10
±1.5
83134
9.7
±0.15
83132
83133
14.2
±0.3
83134
13.9
±0.3
83132
83133
15.5
±0.8
83134
15.2
±0.8
83132
83133
16.1
±1.4
0.34
0.06
5.15
2.1
±0.65
6.8
1.6
0.32
1.1
0.5
±0.15
1.45
0.8
0.17
2.05
0.95
±0.3
2.7
83134
15.8
±1.4
0.34
0.07
4.9
2
±0.6
6.6
Part numbers for
standard actuators
70514559
Folded
54B
R13.17
70514125
2-pole
54A2
R30
70514188
Adjustable
54D
R27.1
70514178
Transverse Roller
54EL
R7.5
70514179
Transverse Roller
54EL
R14.1
70514280
Side fixing plate
54Y
stainless steel
(16 x 8 x 0,4 mm)
Actuators
Operating position
Operating force max.
Release force min.
Pretravel max.
Differential travel
Total travel max.
mm
N
N
mm
mm
mm
83132
83133
83134
±0.8
12.4
±0.8
12.7
0.85
0.18
2.05
0.95
±0.3
2.7
83132
83133
8.8
±0.8
0.8
0.16
4.3
2
±0.55
5.75
83132
83132
83133
83134
83133
83134
±1.2
12.3-17.3
±1.2
14.2
±0.3
12.6-17.6
13.9
±0.3
0.43
1.6
0.08
0.32
3.9
1.1
±0.5
1.8
0.5
±0.15
5.2
1.45
83132
83133
83134
±0.8
15.6
15.3
±0.8
0.75
0.15
2.25
1
±0.35
3
Always supplied
separately
Unless mentioned specifically, the levers are mounted in the position illustrated on the dimension diagrams (standard mounting).
We recommend that these levers are assembled in our workshops.
83132/133/134 microswitches with referenced actuators
Lever
(standard mounting = on left)
STANDARD
83132
83133
83134
83132
83133
83134
Mounting
IW2 Standard
IW2 Standard
IX1
Standard
IX1
Standard
On right
IW2
IW2
IX1
IX1
Standard
Standard
Standard
Standard
On right
54A
R14.75
70514175
83132039
83133015
83133174
83134004
83134005
83132090
●
●
83134046
●
R35.75
70514194
83132045
83133038
83133062
83134016
83134012
●
●
83133173
●
●
54A2
R30
70514125
●
83133301
83133306
-
-
●
●
●
-
-
54B
R13.17
70514559
83132087
83133171
83133212
83134002
83134007
●
●
●
83134028
●
54D
R27.1
70514188
83132076
83133118
83133120
●
●
●
●
●
●
●
54E
R14.1
70514182
83132003
83133002
83133119
83134011
83134006
●
83133122
●
83134014
●
54EL
R34.4
70514183
83132005
83133003
●
83134009
●
●
●
●
●
●
R7.5
70514178
●
83133058
●
●
●
●
●
●
●
●
R14.1
70514179
83132054
83133059
●
●
●
●
●
●
●
●
R7.5
70514181
83132033
83133004
●
83134015
●
●
●
●
●
●
DUAL-CURRENT
Installation recommendations
See “Basic technical concepts”
For 83133 and 83134: to ensure protection against electric shock after installation in the application, please consult us when conductive parts
are located in the immediate proximity of the side walls of the switch housing.
How to order
Use the 8 digit part numbers when they are defined
Other cases, precise: Type of microswitch - Function - Connection -Contact* - UL approval* - Actuator* - Fixing position* - Adaptation*
* if needed
Example: 83133 I W2 DORE UL 54E R7.5
Standard product
Product made to order
Contact us
|
www.crouzet-switches.com
|5
|
microswitches
|
06/2016

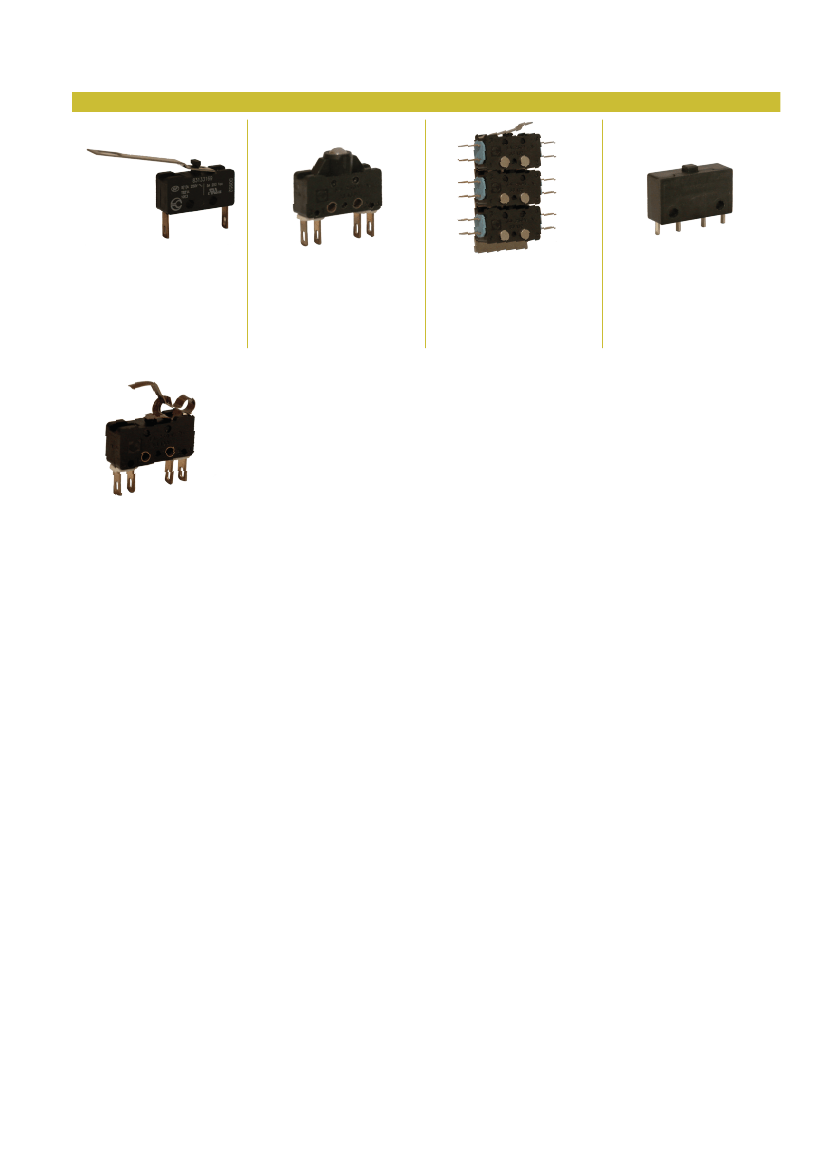

Examples of special adaptations
Maintained action variant
(bistable reset switch) for level
regulation. Has lever with hole
for push-pull actuation by a rod
with 2 stops
Plunger with ball (Ø 5 mm)
for lateral approach from any
direction
3 pole assembly (3PDT) on
metal plate: 833162
«US format»: housing with 1/2’’
(12.7 mm) mounting hole pitch
(831337)
Flexible pre-armed lever:
provides both precise operating
position and extra-long
overtravel (5 mm)
