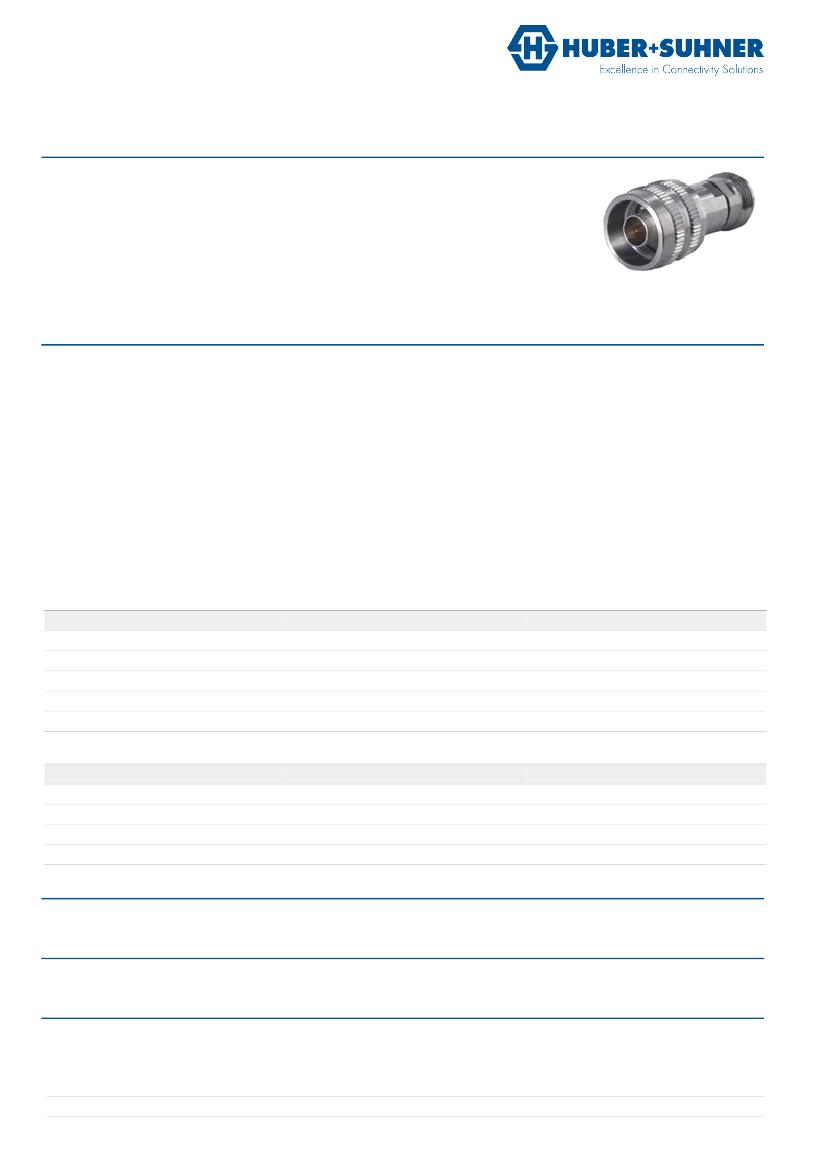

Data Sheet
Within Series Adaptor
33_N-50-0-52/199_U
Description
Adaptor plug/jack
N-precision plug (male) / N-precision jack (female)
For Test & Measurement applications
Quick-screw coupling mechanism, with reduced number of turns
Precision adaptor
Interface standard
Series N-precision - IEC 60169-16_MIL-STD-348A/402_CECC 22210
Technical Data
Electrical Data
Impedance
Interface frequency max.
VSWR
Electrical length
50 Ω
18 GHz
DC - 18 GHz
≤ 1.03 + 0.01 f (GHz)
35.62 mm
Mechanical Data
Number of matings
Weight
500
0.0455 kg
Environmental Data
Operating temperature
2011/65/EC (RoHS)
-55 °C to 70 °C
compliant
Material Data
Interface - N-precision plug (male)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Coupling nut
Material
Copper Beryllium Alloy
Stainless Steel
Stainless Steel
Air Dielectric - Bead - PPH
Stainless Steel
Surface Plating
Gold Plating (without Nickel underplating)
Interface - N-precision jack (female)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Stainless Steel
Stainless Steel
Air Dielectric - Bead - PPH
Surface Plating
Gold Plating (without Nickel underplating)
Related Documents
Outline drawing
DOU-00013715
Ordering Information
Single package
33_N-50-0-52/199_UE
Remarks
Operating specification acc. IEEE Std 287: temperature 13 °C to 33 °C
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, AS/EN9100, ISO/TS 16949 and IRIS.
Waiver: Fact and figures herein are for information only and do not represent any warranty of any kind.
www.hubersuhner.com
Document: DOC-0000194301 X / PDO I / date of publication: 18.11.2016 18:46:56 / uncontrolled copy
Page 1/1
