34_SHV-50-0-1/133_NE

Description
RF Adapters - Within Series
CategoryThe connector    The connector
File Size120KB,1 Pages
ManufacturerHUBER+SUHNER
Download Datasheet Parametric View All

34_SHV-50-0-1/133_NE Overview

RF Adapters - Within Series

34_SHV-50-0-1/133_NE Parametric

Parameter NameAttribute value
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
Adapter typeSHV-SHV
Other featuresSTANDARDS: IEC 60169; MIL-STD-348A/314
Body/casing typeJACK-JACK
Characteristic impedance50 Ω
Connector typeRF CONNECTOR ADAPTER
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE-FEMALE
Contact materialNOT SPECIFIED
Coupling typeSNAP
DIN complianceNO
Filter functionNO
IEC complianceYES
insulator materialPFA/PTFE
MIL complianceYES
Maximum operating frequency0.3 GHz
OptionsGENERAL PURPOSE
Panel mountingYES
Base Number Matches1

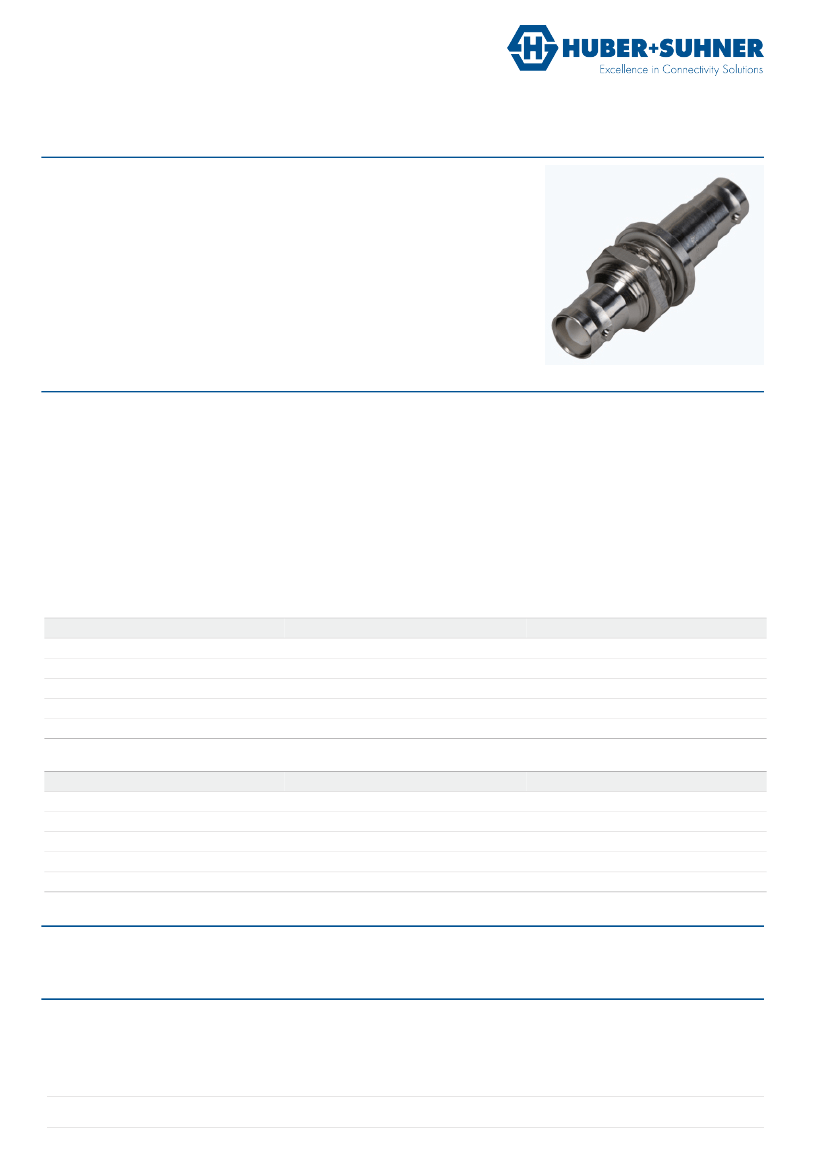

Data Sheet
Within Series Adaptor
34_SHV-50-0-1/133_N
Description
Bulkhead adaptor jack/jack
SHV jack (female) / SHV jack (female)
Interface standard
Series SHV - IEC 60498_MIL-STD-348A/314
Technical Data
Electrical Data
Impedance
Interface frequency max.
50 Ω
0.3 GHz
Mechanical Data
Number of matings
Weight
500
0.0261 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-65 °C to 165 °C
compliant
Material Data
Interface - SHV jack (female)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Gasket
Material
Brass
Brass
Brass
PFA / PTFE
VMQ (Silicone rubber)
Surface Plating
Gold Plating (Nickel underplated)
SUCOPLATE (R) Plating
SUCOPLATE (R) Plating
Interface - SHV jack (female)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Gasket
Material
Brass
Brass
Brass
PFA / PTFE
VMQ (Silicone rubber)
Surface Plating
Gold Plating (Nickel underplated)
SUCOPLATE (R) Plating
SUCOPLATE (R) Plating
Related Documents
Catalogue drawing
Mounting hole
DCA-00013635
DOU-00008751
Ordering Information
Single package
34_SHV-50-0-1/133_NE
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000194210 P / PDO D / date of publication: 28.08.2015 17:13:57 / uncontrolled copy
Page 1/1
