SST-20-W Product Datasheet
SST-20-W
Specialty White LED
Table of Contents
General Considerations . . . .2
Binning Structure . . . . . . . . . .3
Chromaticity Bin Kit Codes .5
Ordering Information . . . . . .6
Optical and Electrical
Characteristics . . . . . . . . . . . . .7
Soldering Profile . . . . . . . . . 10
Precautions for Use . . . . . . . 11
Mechanical Dimensions . . 12
Reel & Box Packaging . . . . 14
Change History . . . . . . . . . . 17
Features:
•
High Brightness Cool White LED with maximum output in excess of 900 lm
•
Available in 5000K, 5700K and 6500K, 70 CRI (typical) color points
•
Compact monolithic emitter ideal for directional lighting applications with high
uniformity
•
Binned at 85 °C
•
Typical efficacy 180 lm/W at 350 mA, Tj 85 °C
•
Maximum drive current: 3 A
•
Available with 2 industry standard soldering footprint configurations
•
High thermal conductivity package - junction thermal resistance of only 3.5 ° C/W
•
Available with 120° viewing angle
•
8000V HBM ESD rating per JEDEC/ESDA STANDARD JS-001
•
Electrically isolated thermal path
•
RoHS and REACH compliant
Applications
•
Horticulture grow lights
•
Automotive light bars, spotlight
accessories , headlights
•
Bicycle lights
•
Flashlight
•
Torch
•
Portable lighting
1
PDS-002946 Rev 04
© 2018 Luminus Devices, Inc. - All Rights Reserved
Luminus Devices, Inc.
•
T
408.708.7000 • www.luminus.com
1145 Sonora Ct., Sunnyvale, CA 94086 USA
SST-20-W Product Datasheet
General Considerations
Environmental Considerations:
As a leading provider of solid-state Lighting solutions, Luminus implements strict substance control policies to ensure all of its products
are environmentally friendly. As all Luminus LEDs, the SST-20-W series are compliant with the Restriction of Hazardous Substances
Directive (RoHS) and REACH directives from the European Community.
Product Testing:
Every SST-20-W LED is fully production tested to ensure it meets the high quality standards customers have come to expect from
Luminus products. Devices are binned to correlated values at 1500 mA, 20 msec pulse condition at Tj = 85°C . Current and temperature
curves are provided in this document allowing users to predict the LED performance and characteristics under their own driving and
thermal conditions.
Reliability:
Luminus SST-20-W LED series are required to pass a rigorous suite of environmental and mechanical stress tests, including mechanical
shock, vibration, temperature cycling and humidity. These tests ensure that the devices deliver high performance and achieve reliable
long term operation in the automotive and other demanding environments. Please contact Luminus for further information.
2
PDS-002946 Rev 04
© 2018 Luminus Devices, Inc. - All Rights Reserved
Luminus Devices, Inc.
•
T
408.708.7000 • www.luminus.com
1145 Sonora Ct., Sunnyvale, CA 94086 USA
SST-20-W Product Datasheet
Flux Binning Structure
SST-20-W LEDs are binned for luminous flux based on I
f
= 1500 mA and 85
0
C junction temperature (Tj) conditions.
Flux Bin (FF)
L5
L4
L3
L2
K5
K4
K3
K2
J5
1
Min. Flux (lm)
1500 mA, 85
0
C
620
585
560
530
505
475
445
415
390
Max. Flux (lm)
1500 mA, 85
0
C
665
620
585
560
530
505
475
445
415
Min. Flux (lm)
350 mA, 25
0
C
200
189
180
172
163
153
143
134
125
Correlated
Minimum
Luminous Flux (lm) @ 85
0
C
2
350 mA
182
172
164
155
148
139
130
122
114
700 mA
335
316
302
286
272
256
240
224
210
2000 mA
771
727
696
659
628
591
553
516
485
3000 mA
1000
944
903
855
814
766
718
669
629
Note 1: Luminus maintains a +/- 6% tolerance on flux measurement.
Note 2: Correlated flux values at 350 mA, 700 mA, 2000 mA and 3000 mA are for reference only.
Forward Voltage Binning Structure
SST-20-W LEDs are binned for forward voltage based on I
f
= 1500 mA and 85
0
C junction temperature (Tj) .conditions.
Voltage Bin
3
VH
VJ
VK
VL
Minimum Voltage (V)
2.5
2.7
2.9
3.1
Maximim Voltage (V)
2.7
2.9
3.1
3.3
Note 3: Individual voltage bins are not orderable.
3
PDS-002946 Rev 04
© 2018 Luminus Devices, Inc. - All Rights Reserved
Luminus Devices, Inc.
•
T
408.708.7000 • www.luminus.com
1145 Sonora Ct., Sunnyvale, CA 94086 USA
SST-20-W Product Datasheet
Chromaticity
Bin Definitions
CCT
Bin
code
CIE-X
0.295
AA
7500
AH
0.292
0.2984
0.3009
0.298
0.295
0.3009
0.3037
0.3048
BA
6500
BH
0.313
0.3144
0.3068
0.3068
0.3144
0.3161
0.3093
0.3215
CA
5700
CH
0.329
0.329
0.3222
0.3222
0.329
0.329
0.3231
0.3371
DA
5000
DH
0.3451
0.344
0.3366
0.3366
0.3366
0.3366
0.3366
CIE-Y
0.297
0.306
0.3133
0.3042
0.288
0.297
0.3042
0.2937
0.3207
0.329
0.3186
0.3113
0.3113
0.3186
0.3059
0.2993
0.335
0.3417
0.33
0.3243
0.3243
0.33
0.318
0.312
0.349
0.3554
0.3427
0.3369
0.3369
0.3428
0.3307
0.3245
DE
DB
CE
CB
BE
BB
AE
AB
Bin
code
CIE-X
0.292
0.2895
0.2962
0.2984
0.2895
0.287
0.2937
0.2962
0.3028
0.3115
0.313
0.3048
0.3005
0.3099
0.3115
0.3028
0.3207
0.329
0.329
0.3215
0.3196
0.329
0.329
0.3207
0.3376
0.3463
0.3451
0.3371
0.3381
0.348
0.3463
0.3376
CIE-Y
0.306
0.3135
0.322
0.3133
0.3135
0.321
0.3312
0.322
0.3304
0.3391
0.329
0.3207
0.3415
0.3509
0.3391
0.3304
0.3462
0.3538
0.3417
0.335
0.3602
0.369
0.3538
0.3462
0.3616
0.3687
0.3554
0.349
0.3762
0.384
0.3687
0.3616
DF
DC
CF
CC
BF
BC
AF
AC
Bin
code
CIE-X
0.2984
0.2962
0.3028
0.3048
0.2962
0.2937
0.3005
0.3028
0.3115
0.3205
0.3213
0.313
0.3099
0.3196
0.3205
0.3115
0.329
0.3376
0.3371
0.329
0.329
0.3381
0.3376
0.329
0.3463
0.3551
0.3533
0.3451
0.348
0.3571
0.3551
0.3463
CIE-Y
0.3133
0.322
0.3304
0.3207
0.322
0.3312
0.3415
0.3304
0.3391
0.3481
0.3373
0.329
0.3509
0.3602
0.3481
0.3391
0.3538
0.3616
0.349
0.3417
0.369
0.3762
0.3616
0.3538
0.3687
0.376
0.362
0.3554
0.384
0.3907
0.376
0.3687
DG
DD
CG
CD
BG
BD
AG
AD
Bin
code
CIE-X
0.2984
0.3048
0.3068
0.3009
0.3037
0.3009
0.3068
0.3093
0.313
0.3213
0.3221
0.3144
0.3144
0.3221
0.3231
0.3161
0.329
0.3371
0.3366
0.3290
0.329
0.3366
0.3361
0.3290
0.3451
0.3533
0.3515
0.3440
0.344
0.3515
0.3495
0.3429
CIE-Y
0.3133
0.3207
0.3113
0.3042
0.2937
0.3042
0.3113
0.2993
0.329
0.3373
0.3261
0.3186
0.3186
0.3261
0.312
0.3059
0.3417
0.349
0.3369
0.3300
0.33
0.3369
0.3245
0.3180
0.3554
0.362
0.3487
0.3427
0.3428
0.3487
0.3339
0.3307
4
PDS-002946 Rev 04
© 2018 Luminus Devices, Inc. - All Rights Reserved
Luminus Devices, Inc.
•
T
408.708.7000 • www.luminus.com
1145 Sonora Ct., Sunnyvale, CA 94086 USA
SST-20-W Product Datasheet
(Part #)
Product Datasheet

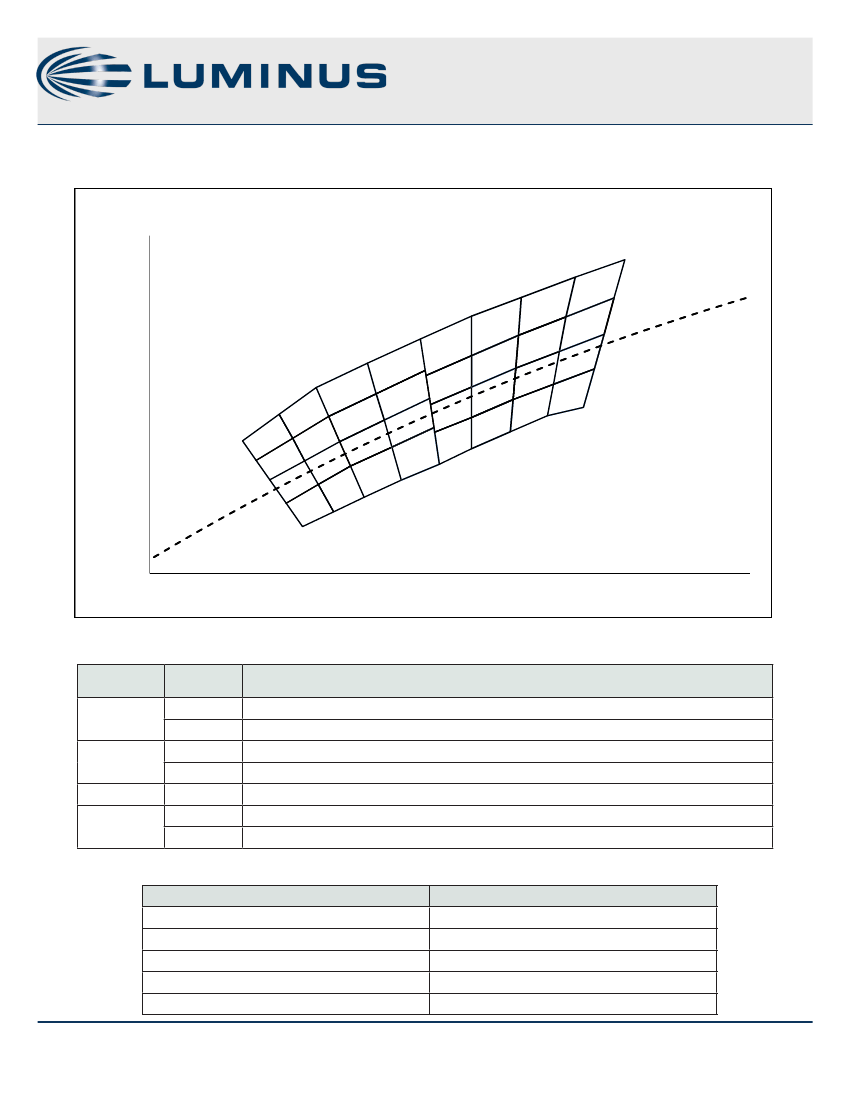

SST-20-W Cool White Color Space
Plotted on the ANSI 1931 Curve
0.390
5000K
DF
5700K
CF
6500K
7500K
BE
AF
AE
AC
AB
AA
AH
.L
B.B
us
oC
0.370
DE
DC
DB
CC
DA
CD
DH
CG
DG
DD
CE
BF
BC
BD
BG
CB
CA
CH
0.350
CIEY
0.330
BB
BA
BH
AD
AG
0.310
0.290
0.270
0.270
0.290
0.310
CIEX
0.330
0.350
0.370
Chromaticity Bin Kit Codes
CCT
5000K
5700K
6000K
6500K
Bin Kit
501
502
571
572
600
651
652
Chromaticity Bins
DA, DB, DC, DD, DE, DF, DG, DH
DA, DB, DC, DD
CA, CB, CC, CD, CE, CF, CG, CH
CA, CB, CC, CD
AA, AB, AC, AD, AE, AF, AG, BH, BA, BB, BC, BD, BE, BF, BG, BH, CA, CB, CC, CD, CE, CF, CG, CH
BA, BB, BC, BD, BE, BF, BG, BH
BA, BB, BC, BD
CRI Code
Definitions
CRI Code
S
E
F
G
H
5
PDS-002946 Rev 04
© 2018 Luminus Devices, Inc. - All Rights Reserved
