5906_SMA-50-010/19-_NE

Description
Attenuator-Interconnect
CategoryWireless rf/communication    Radio frequency and microwave
File Size105KB,2 Pages
ManufacturerHUBER+SUHNER
Environmental Compliance
Download Datasheet Parametric View All

5906_SMA-50-010/19-_NE Overview

Attenuator-Interconnect

5906_SMA-50-010/19-_NE Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerHUBER+SUHNER
package instructionROHS COMPLIANT PACKAGE
Reach Compliance Codecompliant
Other featuresSMA-F, I/P POWER-MAX(PEAK)=500W
Nominal attenuation6 dB
Characteristic impedance50 Ω
structureCOAXIAL
Maximum input power (CW)40 dBm
JESD-609 codee4
Maximum operating frequency18000 MHz
Minimum operating frequency
Maximum operating temperature125 °C
Minimum operating temperature-65 °C
RF/Microwave Device TypesFIXED ATTENUATOR
Terminal surfaceGold (Au)
Maximum voltage standing wave ratio1.4
Base Number Matches1

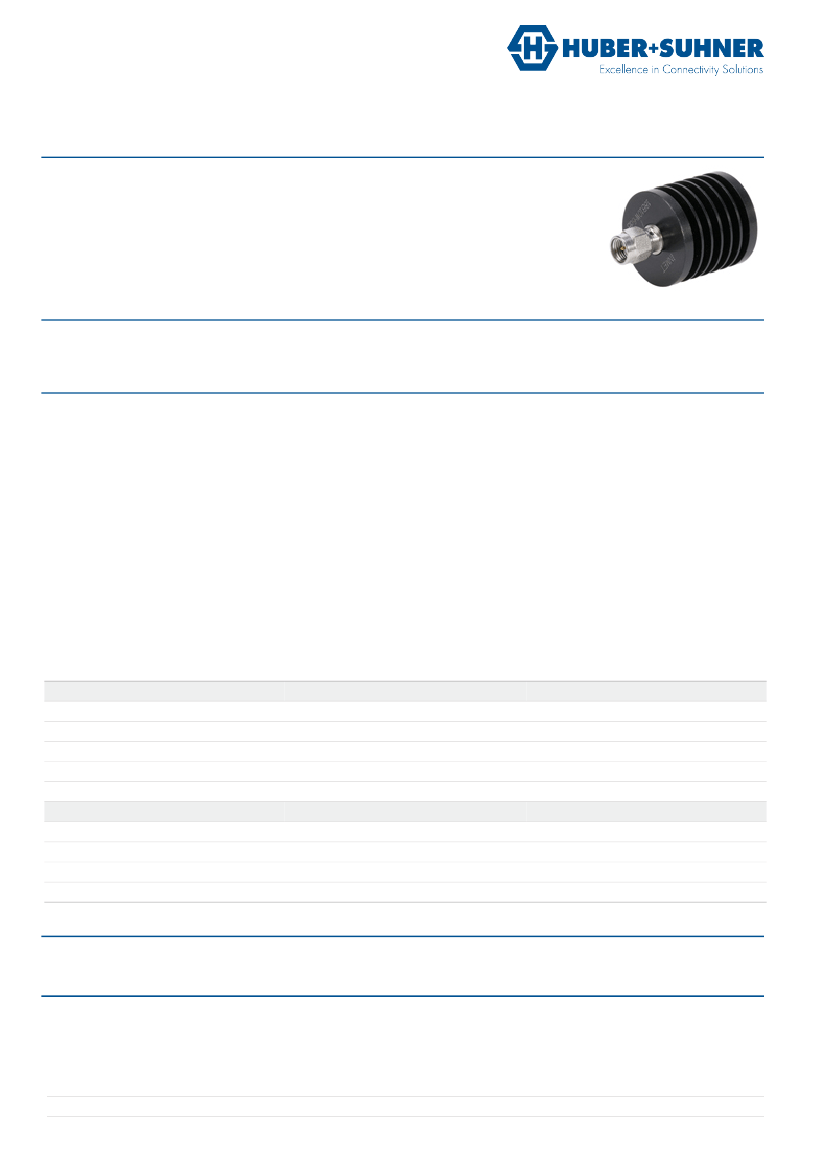

Data Sheet
RF Attenuator
5906_SMA-50-010/19-_N
Description
Standard Attenuator, Medium Power
Product Configuration
Connector (side 1 / side 2)
Interface Standards
SMA plug (male) / SMA jack (female)
IEC 60169-15_MIL-STD-348A/310_CECC 22110
Technical Data
Electrical Data
Nominal impedance
Nominal attenuation
Frequency range
Frequency sub range (GHz)
Attenuation deviation (±dB)
VSWR max.
Power rating
50 Ω
6 dB
DC to 18 GHz
DC to 6
0.3
1.2
6 to 12.4
0.3
1.3
12.4 to 18
0.5
1.4
10 Watt average power up to 25 ˚C ambient temperature, linearly derated to 2 Watt at 125 ˚C ambient
temperature.
500 Watt peak power, 5 µs pulse, 0.05 % duty cycle
Mechanical Data
Weight
0.025 kg
Environmental Data
Operating temperature
2011/65/EC (RoHS)
-65 °C to 125 °C
compliant
Material Data
Piece Part (side 1)
Centre contact
Outer contact
Body
Insulator
Coupling nut
Piece Part (side2)
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Stainless Steel
Aluminium
PTFE (Polytetrafluoroethylene)
Stainless Steel
Material
Copper Beryllium Alloy
Stainless Steel
Aluminium
PTFE (Polytetrafluoroethylene)
Passivated (Plating)
Surface Plating
Gold Plating
Passivated (Plating)
Anodized
Surface Plating
Gold Plating
Passivated (Plating)
Anodized
Related Documents
Outline drawing
DOU-00121742
Ordering Information
Single packaging
5906_SMA-50-010/19-_NE
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, AS/EN9100, ISO/TS 16949 and IRIS.
Waiver: Fact and figures herein are for information only and do not represent any warranty of any kind.
www.hubersuhner.com
Document: DOC-0000280295 J / PDO F / date of publication: 01.02.2017 18:48:30 / uncontrolled copy
Page 1/1
