0981 ENC 100 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Modular connectors/Ethernet connector> 0981 ENC 100

0981 ENC 100: DescriptionModular Connector/Ethernet Connector; CategoryThe connector Modular connectors/Ethernet connector; File Size458KB，2 Pages; ManufacturerLumberg Automation; Websitehttp://www.lumberg-automation.com; Environmental Compliance

Download Datasheet Parametric View All

0981 ENC 100 Overview

Modular Connector/Ethernet Connector

0981 ENC 100 Parametric

Parameter Name	Attribute value
Maker	Lumberg Automation
Product Category	Modular Connector/Ethernet Connector
product	Adapters
USOC code	RJ45
Number of locations	4 Position
Number of ports	1 Port
Installation style	Cable
shield	Shielded
Current rating	1.5 A
Voltage rating	60 V
color	Black
Minimum operating temperature	0 C
Maximum operating temperature	+ 70 C
Contact plating	Gold
Type	Female / Female
Shell material	Polyamide (PA)
Installation angle	Right Angle
Number of contacts	4 Contact
Installation direction	Right Angle
coding	D Coded
Factory packaging quantity	1

Preview

Download Datasheet

View All

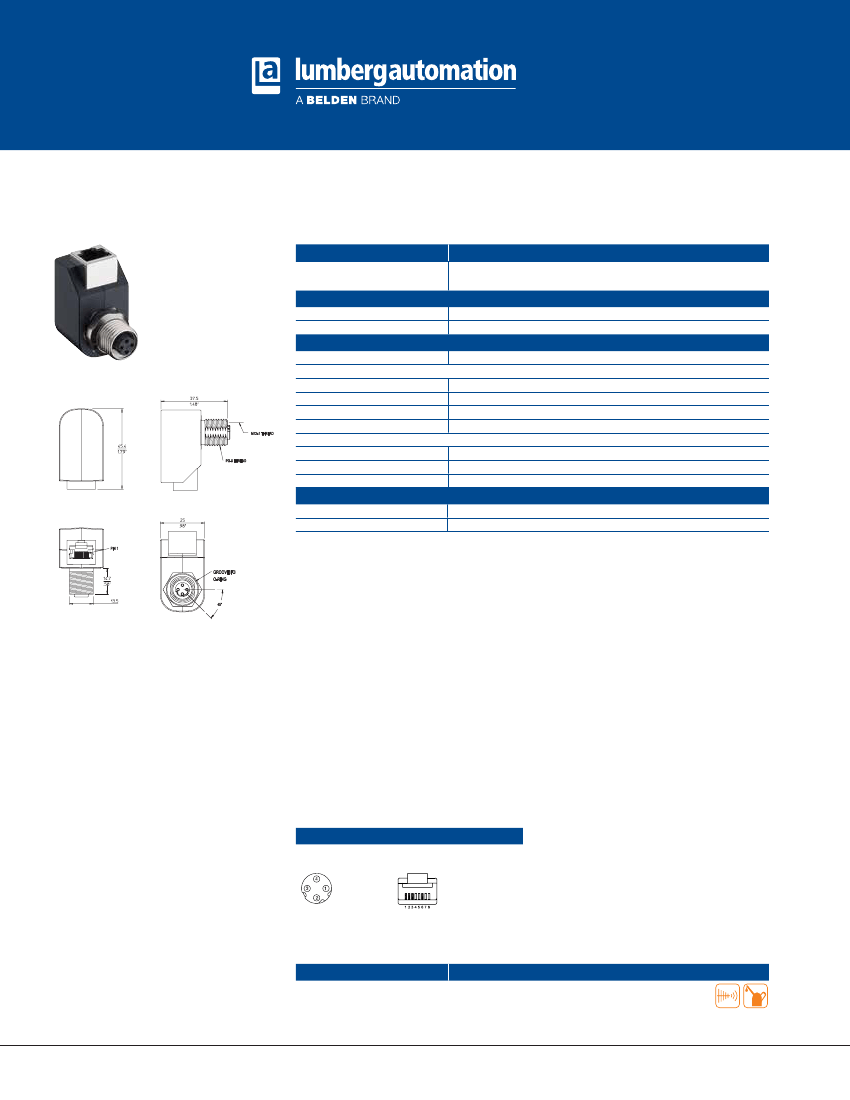

Industrial Ethernet Panel-Mount Adaptors for PROFINET or EtherNet/IP Applications

Type

Product description

Environmental

Degree of protection

Operating temperature range

Materials

Housing

Contacts

Housing

insert

O-ring

Contacts

Housing

Insert

Electrical

Nominal current

Nominal voltage

0981 ENC 100

RJ45/M12 adaptor, female receptacle connector M12, D coding, chassis side thread

PG 9, RJ45 female connector, 90 degree.

IP 20 / IP 67

0°C (32°F) to +70°C (+158°F)

M12

CuZn, pre-nickeled and gold-plated

CuZn, nickel-plated

PUR, self extinguishing

FKM

RJ45

CuSn, pre-nickeled and gold-plated

CuZn, tin-plated

PA GF

1.5 A

max. 60 V

The application of these products in harsh environments should always be checked before use.

Specifications subject to alteration.

Pin assignment

M12 Socket

1 = TD+

2 = RD+

3 = TD-

4 = RD-

5 = shield

RJ45 Jacket

1 = TD+

2 = TD-

3 = RD+

4 = n.c.

5 = n.c.

6 = RD-

7 = n.c.

8 = n.c.

Part number

0981 ENC 100

Order number

63484

1.800.Belden1 |

www.lumberg-automationusa.com

800-235-3361 or 1-800-BELDEN1

www.lumberg-automationusa.com

PROFINET-ETHERNET_IP-ETHERNET-CON-SOLUTIONS_CA_V2_ICOS_LUM_0415_A_AG
