32_MMBX-50-0-15/111_NY

Description
RF Adapters - Within Series
CategoryThe connector    The connector
File Size113KB,1 Pages
ManufacturerHUBER+SUHNER
Environmental Compliance
Download Datasheet Parametric View All

32_MMBX-50-0-15/111_NY Overview

RF Adapters - Within Series

32_MMBX-50-0-15/111_NY Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
Adapter typeMMBX-MMBX
Body/casing typePLUG-PLUG
Characteristic impedance50 Ω
Connector typeRF CONNECTOR ADAPTER
Contact point genderMALE-MALE
Contact styleCOAX
Coupling typeSNAP
Filter functionNO
insulator materialPOLYTETRAFLUORO ETHYLENE
Installation methodSTRAIGHT
Maximum operating frequency12.4 GHz
Maximum operating temperature155 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
Panel mountingNO
voltage standing wave ratio1.81
Base Number Matches1

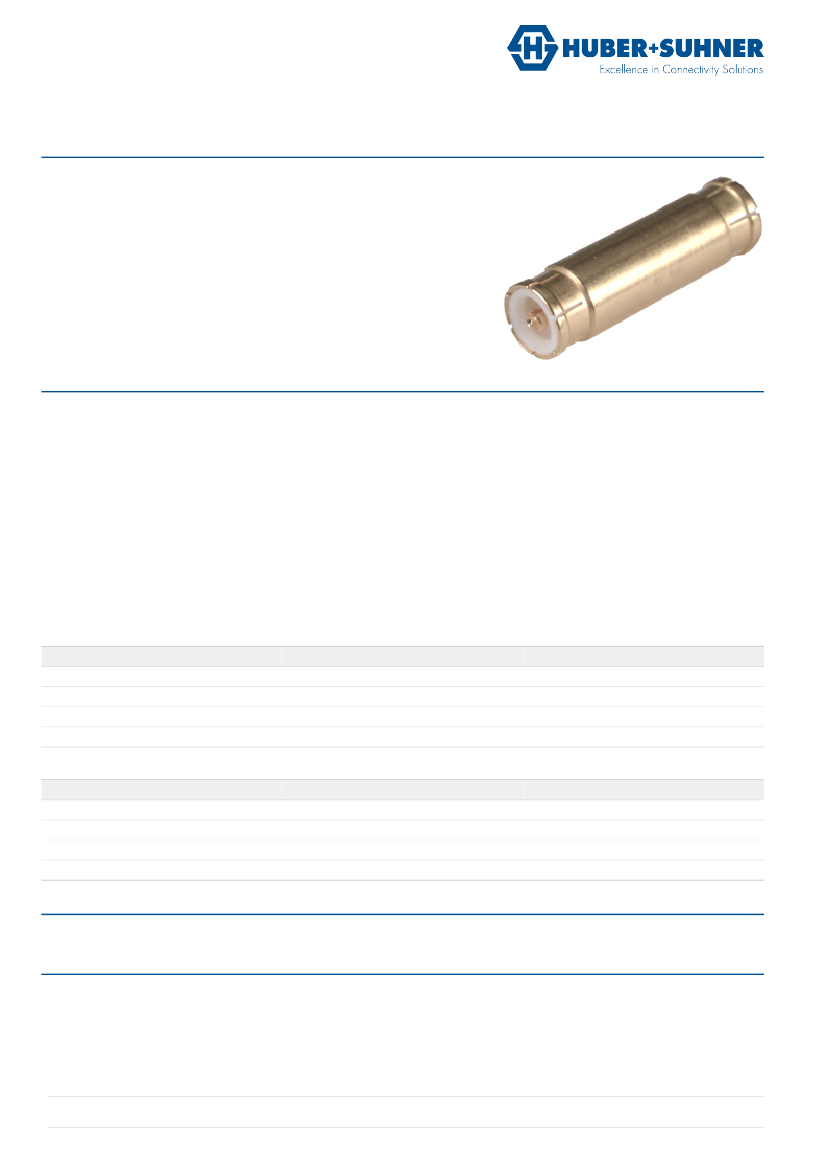

Data Sheet
Within Series Adaptor
32_MMBX-50-0-15/111_N
Description
Adaptor plug/plug
MMBX plug (male) / MMBX plug (male)
Slide - snap interface
Interface standard
Series MMBX - SUHNER-MMBX
Technical Data
Electrical Data
Impedance
Interface frequency max.
Frequency range
Return loss
50 Ω
12.4 GHz
DC to 2.5 GHz
≥ 26 dB
2.5 to 6 GHz
≥ 21 dB
6 to 12.4 GHz
≥ 12 dB
Mechanical Data
Number of matings
Weight
100
0.0005 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-55 °C to 155 °C
compliant
Material Data
Interface - MMBX plug (male)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Bronze
Bronze
PTFE (Polytetrafluoroethylene)
Surface Plating
SUCOPRO Plating
SUCOPRO Plating
SUCOPRO Plating
Interface - MMBX plug (male)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Bronze
Bronze
PTFE (Polytetrafluoroethylene)
Surface Plating
SUCOPRO Plating
SUCOPRO Plating
SUCOPRO Plating
Related Documents
Outline drawing
DOU-00091115
Ordering Information
Tray package
32_MMBX-50-0-15/111_NY
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000254031 M / PDO I / date of publication: 12/4/2014 4:37:55 PM / uncontrolled copy
Page 1/1
