WGKVA160PJ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Military specifications/military types> Rectangular military specifications connector> WGKVA160PJ

Preview

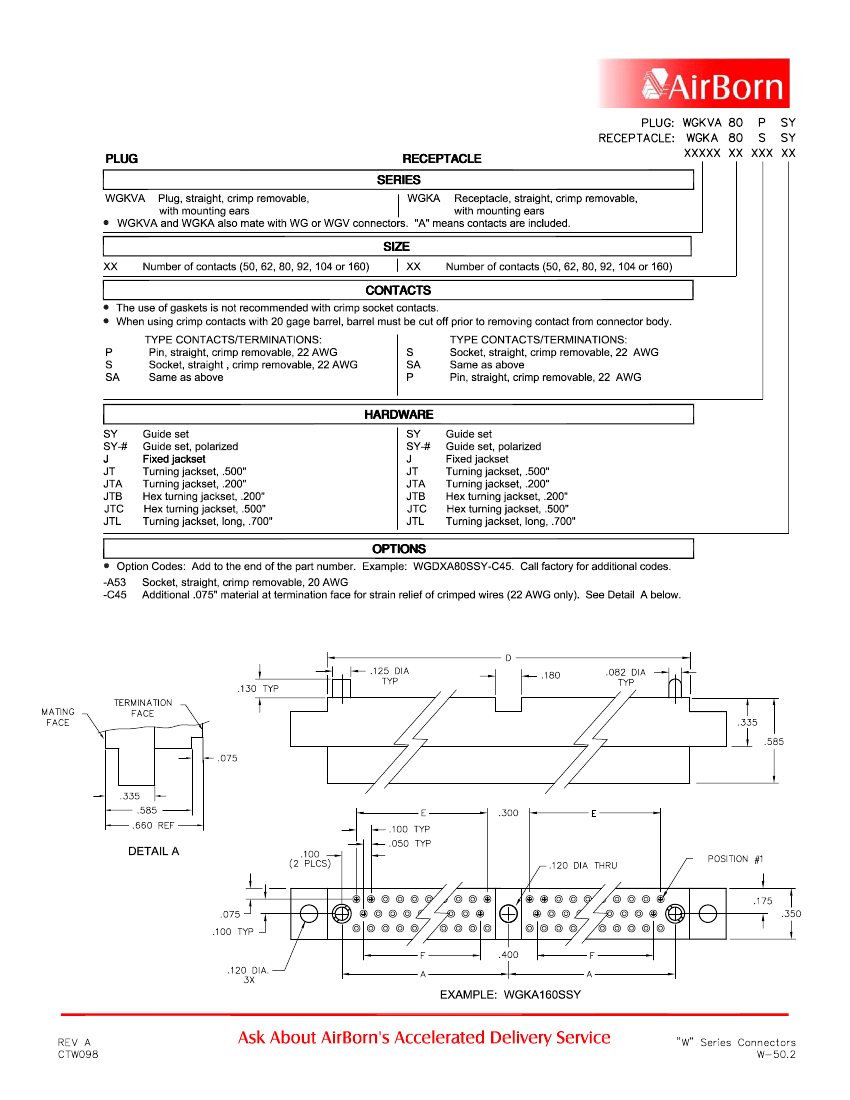

WGKVA160PJ: DescriptionRectangular Mil-Spec Connector 3Row Straight Plug I/O; CategoryThe connector Military specifications/military types Rectangular military specifications connector; File Size385KB，2 Pages; ManufacturerAirBorn

Download Datasheet Parametric Compare View All

WGKVA160PJ Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	WGKVA160PJ	-	-	View	Buy Now

WGKVA160PJ Overview

Rectangular Mil-Spec Connector 3Row Straight Plug I/O

WGKVA160PJ Parametric

Parameter Name	Attribute value
Maker	AirBorn
Product Category	Rectangular Mil-Spec Connector
Shipping restrictions	Mouser does not currently sell this product.
product	I/O Connectors
Number of locations	160 Position
Number of rows	3 Row
Termination type	Crimp
Installation style	Cable mount
Contact type	Pin (Male)
Contact plating	Gold
MIL type	MIL-DTL-55302
series	WG
Installation angle	Straight
Current rating	5 A
Shell material	Polyphenylene Sulfide (PPS)
Voltage rating	333 V
Contact material	Copper Alloy
Pitch	2.54 mm
Insulation resistance	5000 MOhms
Maximum operating temperature	+ 125 C
Minimum operating temperature	- 65 C
Factory packaging quantity	1

Preview

Download Datasheet

View All

WGKVA160PJ Related Products

	WGKVA160PJ	WGKVA104PJ	WGKVA92PJ	WGKVA62PJ	WGKVA50PJ
Description	Rectangular Mil-Spec Connector 3Row Straight Plug I/O	Rectangular Mil-Spec Connector 3Row Straight Plug I/O	Rectangular Mil-Spec Connector 3Row Straight Plug I/O	Rectangular Mil-Spec Connector 3Row Straight Plug I/O	Rectangular Mil-Spec Connector 3Row Straight Plug I/O
Maker	AirBorn	AirBorn	AirBorn	AirBorn	AirBorn
Product Category	Rectangular Mil-Spec Connector	Rectangular Mil-Spec Connector	Rectangular Mil-Spec Connector	Rectangular Mil-Spec Connector	Rectangular Mil-Spec Connector
Shipping restrictions	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.
product	I/O Connectors	I/O Connectors	I/O Connectors	I/O Connectors	I/O Connectors
Number of locations	160 Position	104 Position	92 Position	62 Position	50 Position
Number of rows	3 Row	3 Row	3 Row	3 Row	3 Row
Termination type	Crimp	Crimp	Crimp	Crimp	Crimp
Installation style	Cable mount	Cable mount	Cable mount	Cable mount	Cable mount
Contact type	Pin (Male)	Pin (Male)	Pin (Male)	Pin (Male)	Pin (Male)
Contact plating	Gold	Gold	Gold	Gold	Gold
MIL type	MIL-DTL-55302	MIL-DTL-55302	MIL-DTL-55302	MIL-DTL-55302	MIL-DTL-55302
series	WG	WG	WG	WG	WG
Installation angle	Straight	Straight	Straight	Straight	Straight
Current rating	5 A	5 A	5 A	5 A	5 A
Shell material	Polyphenylene Sulfide (PPS)	Polyphenylene Sulfide (PPS)	Polyphenylene Sulfide (PPS)	Polyphenylene Sulfide (PPS)	Polyphenylene Sulfide (PPS)
Voltage rating	333 V	333 V	333 V	333 V	333 V
Contact material	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy
Pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Insulation resistance	5000 MOhms	5000 MOhms	5000 MOhms	5000 MOhms	5000 MOhms
Maximum operating temperature	+ 125 C	+ 125 C	+ 125 C	+ 125 C	+ 125 C
Minimum operating temperature	- 65 C	- 65 C	- 65 C	- 65 C	- 65 C
Factory packaging quantity	1	1	1	1	1
