32_SMA-50-0-1/111_NE datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 32_SMA-50-0-1/111_NE

Preview

32_SMA-50-0-1/111_NE: DescriptionRF Adapters - Within Series; CategoryThe connector The connector; File Size101KB，2 Pages; ManufacturerHUBER+SUHNER; Environmental Compliance

Download Datasheet Parametric View All

32_SMA-50-0-1/111_NE Overview

RF Adapters - Within Series

32_SMA-50-0-1/111_NE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	HUBER+SUHNER
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Adapter type	SMA-SMA
Other features	STANDARDS: IEC 60169-15; MIL-STD-348A/310
Body/casing type	JACK-JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE-FEMALE
Contact material	BERYLLIUM COPPER
Contact style	COAX
Coupling type	THREADED
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	YES
insulator material	PFA/PTFE
JESD-609 code	e4
MIL compliance	YES
Installation method	STRAIGHT
Maximum operating frequency	18 GHz
Maximum operating temperature	165 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
Panel mounting	NO
reliability	COMMERCIAL
voltage standing wave ratio	1.14

Preview

Download Datasheet

View All

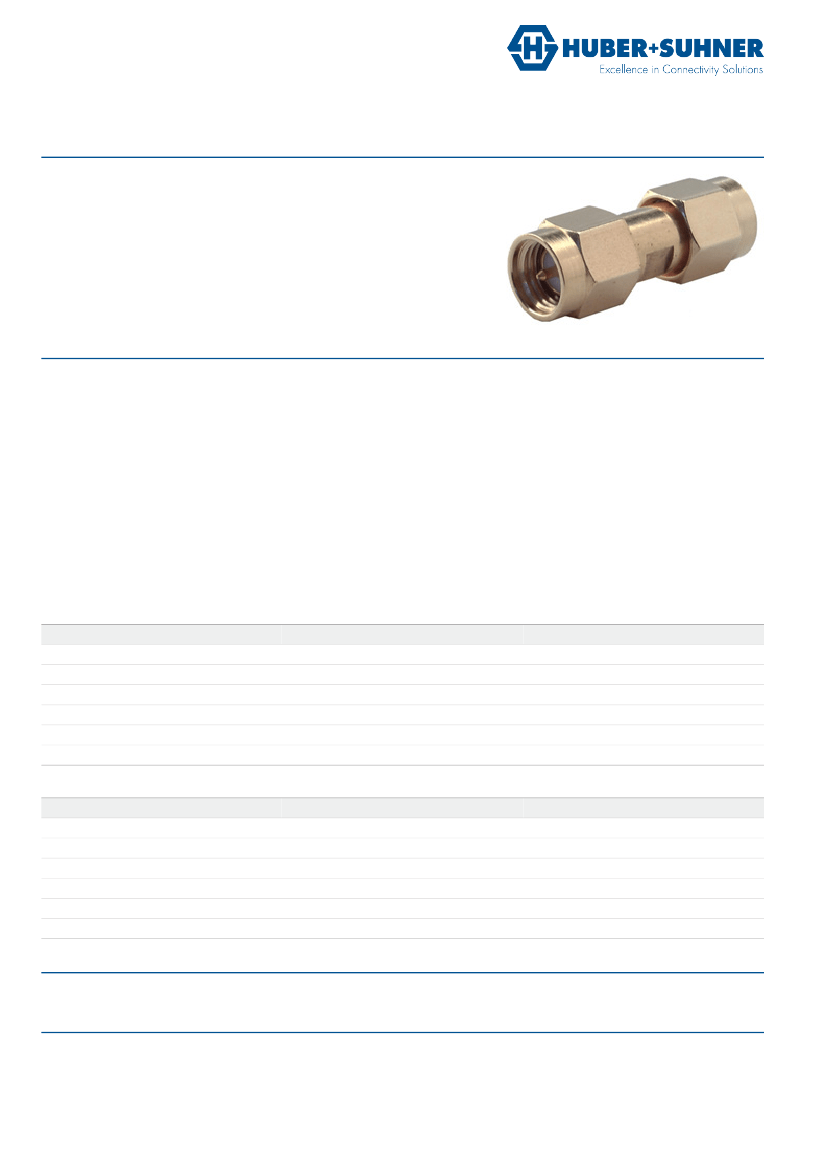

Data Sheet

Within Series Adaptor

32_SMA-50-0-1/111_N

Description

Adaptor plug/plug

SMA plug (male) / SMA plug (male)

Interface standard

Series SMA - IEC 60169-15_MIL-STD-348A/310_CECC 22110

Technical Data

Electrical Data

Impedance

Interface frequency max.

VSWR

Electrical length

50 Ω

18 GHz

DC - 18 GHz

≤ 1.05 + 0.005 f (GHz)

26.1 mm

Mechanical Data

Number of matings

Weight

500

0.0058 kg

Environmental Data

Operating temperature

2011/65/EU (RoHS)

-65 °C to 165 °C

compliant

Material Data

Interface - SMA plug (male)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Coupling nut

Gasket

Material

Copper Beryllium Alloy

PFA / PTFE

Bronze

VMQ (Silicone rubber)

Gold Plating (Nickel underplated)

Surface Plating

Gold Plating (Nickel underplated)

Interface - SMA plug (male)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Coupling nut

Gasket

Material

Copper Beryllium Alloy

PFA / PTFE

Bronze

VMQ (Silicone rubber)

Gold Plating (Nickel underplated)

Surface Plating

Gold Plating (Nickel underplated)
