32_MBX-50-0-3/111_NH datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 32_MBX-50-0-3/111_NH

Preview

32_MBX-50-0-3/111_NH: DescriptionRF Adapters - Within Series; CategoryThe connector The connector; File Size113KB，1 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric Compare View All

32_MBX-50-0-3/111_NH Overview

RF Adapters - Within Series

32_MBX-50-0-3/111_NH Parametric

Parameter Name	Attribute value
Maker	HUBER+SUHNER
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Adapter type	MBX-MBX
Body/casing type	PLUG-PLUG
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact point gender	MALE-MALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	PFA/PTFE/LCP
MIL compliance	NO
Maximum operating frequency	6 GHz
Options	GENERAL PURPOSE
Panel mounting	NO

Preview

Download Datasheet

View All

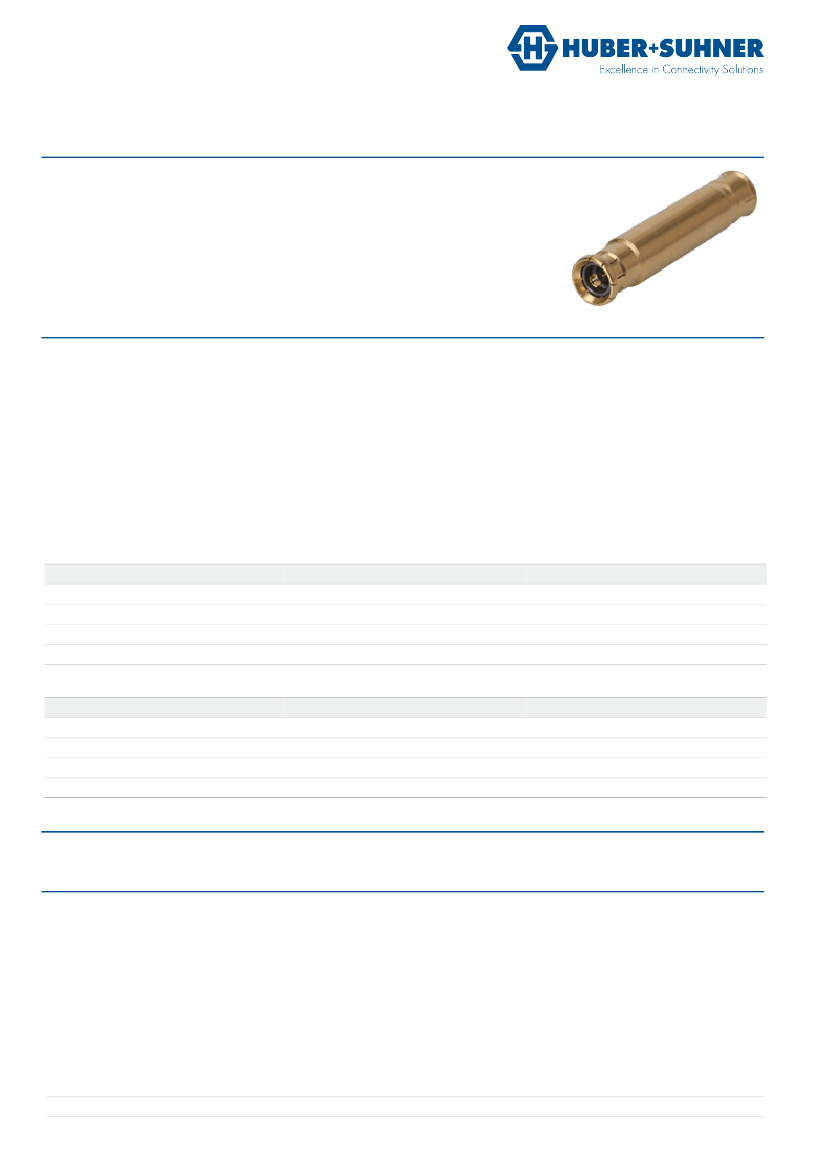

Data Sheet

Within Series Adaptor

32_MBX-50-0-3/111_N

Description

Adaptor plug/plug

MBX plug (male) / MBX plug (male)

Slide - snap interface

Interface standard

Series MBX - HUBER+SUHNER MBX

Technical Data

Electrical Data

Impedance

Interface frequency max.

50 Ω

6 GHz

Mechanical Data

Number of matings

Weight

100

0.001754 kg

Environmental Data

Operating temperature

2011/65/EC (RoHS)

-55 °C to 155 °C

compliant

Material Data

Interface - MBX plug (male)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Material

Copper Beryllium Alloy

Bronze

PFA / PTFE / LCP

Surface Plating

SUCOPRO Plating

Gold Plating

Interface - MBX plug (male)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Material

Copper Beryllium Alloy

Bronze

PFA / PTFE / LCP

Surface Plating

SUCOPRO Plating

Gold Plating

32_MBX-50-0-3/111_NH Related Products

	32_MBX-50-0-3/111_NH	32_MBX-50-0-3/111_NE
Description	RF Adapters - Within Series	RF Adapters - Within Series
Maker	HUBER+SUHNER	HUBER+SUHNER
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Adapter type	MBX-MBX	MBX-MBX
Body/casing type	PLUG-PLUG	PLUG-PLUG
Characteristic impedance	50 Ω	50 Ω
Connector type	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER
Contact point gender	MALE-MALE	MALE-MALE
Coupling type	SNAP	SNAP
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
insulator material	PFA/PTFE/LCP	PFA/PTFE/LCP
MIL compliance	NO	NO
Maximum operating frequency	6 GHz	6 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO
