HCJT2-804SK Overview

Modular Connector/Ethernet ConnectorShielded 1x2 Tab-Up RJ45 NO LED

HCJT2-804SK Parametric

Parameter Name	Attribute value
Maker	HALO Electronics
Product Category	Modular Connector/Ethernet Connector
product	Modular Jacks
USOC code	RJ45
Number of locations	8 Position
Number of ports	2 Port
Installation style	Mounting Peg
Termination type	Through Hole
shield	Shielded
Current rating	1.5 A
Voltage rating	125 V
Minimum operating temperature	- 40 C
Maximum operating temperature	+ 85 C
series	HCJT2
Encapsulation	Tray
Contact plating	Gold
Type	Female
Installation angle	Right Angle
Number of contacts	8 Contact
Flammability rating	UL 94 V-0
Operation cycle	750 Cycle
Factory packaging quantity	40

Preview

Download Datasheet

View All

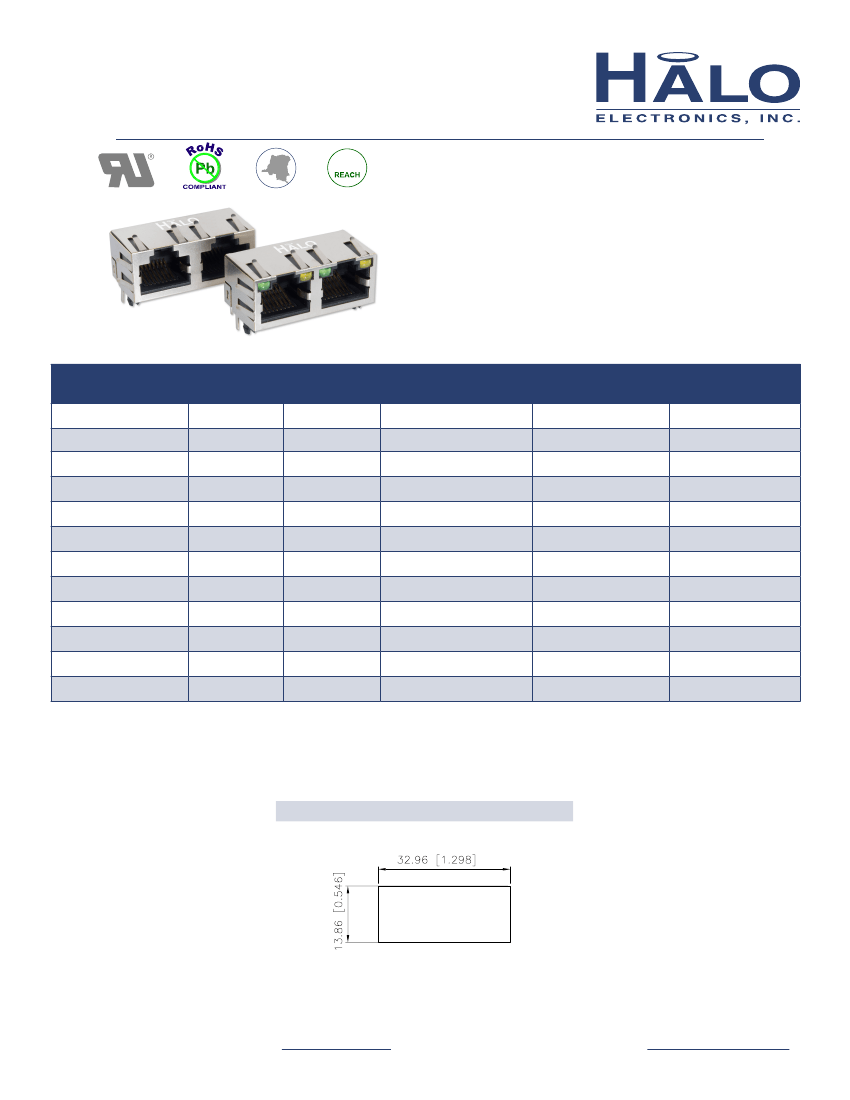

Shielded Ganged 1x2 RJ45

8P/8C Shielded Dual Port Tab-Up RJ45 Ethernet Connectors

Conflict

FREE

Product Features:

Shielded RJ45 1x2 Connectors

Minimum of 750 Mating Cycles

Multiple Gold Contact Plating Options

DWV - 1500VAC Contact to Shield

Current Rating - 1.5A

Voltage Rating - 125V

UL94V-0 Flammability Rating

Part Number

HCJT2-802SK

HCJT2-804SK

HCJT2-805SK

HCJT2-802SK-L11

HCJT2-804SK-L11

HCJT2-805SK-L11

HCJT2-802SK-L12

HCJT2-804SK-L12

HCJT2-805SK-L12

HCJT2-802SK-L21

HCJT2-804SK-L21

HCJT2-805SK-L21

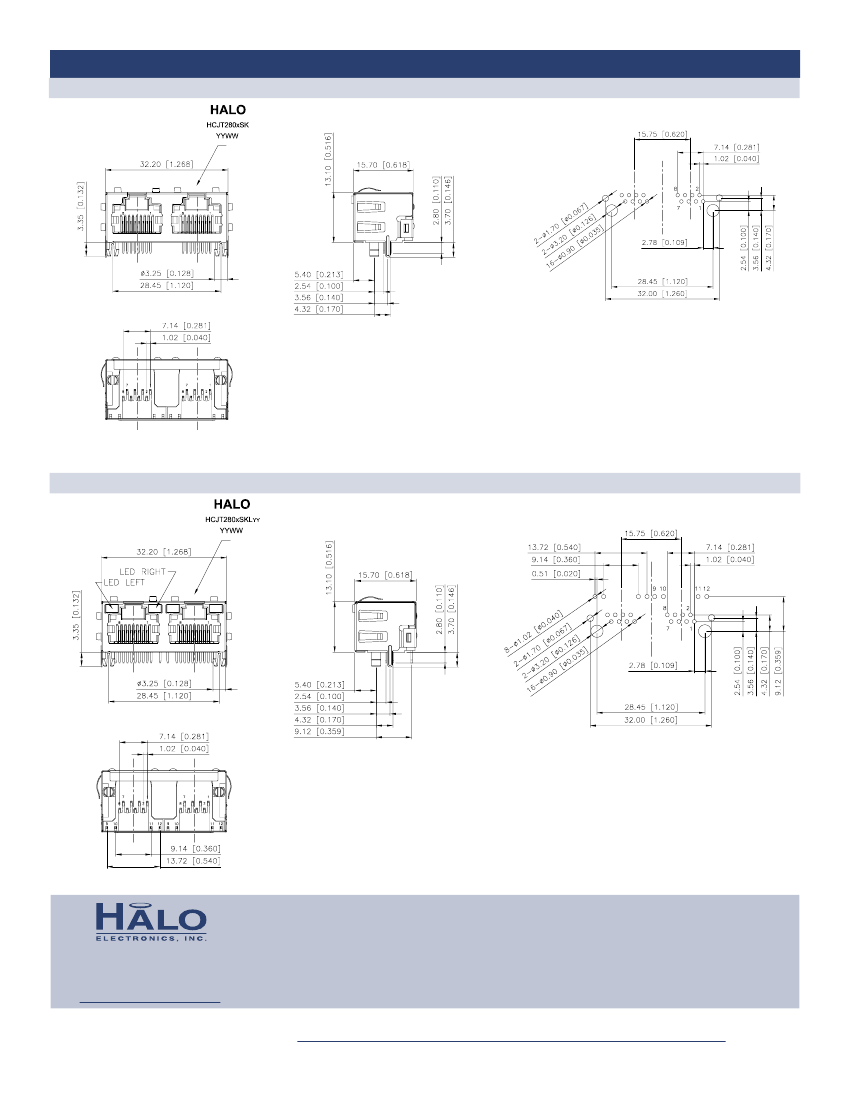

Mechanical

Contact Gold

Plating (min)

6µ”

30µ”

50µ”

6µ”

30µ”

50µ”

6µ”

30µ”

50µ”

6µ”

30µ”

50µ”

Latch Orientation

Tab-Up

Operating

Temp Range

-40˚C to +85˚C

LED Color (L/R)

None

Green/Green

Green/Yellow

Yellow/Green

Notes:

1. Alternate footprint variations available. Please contact the factory for additional information.

2. Part specific datasheets available upon request.

Recommended Panel Cutout

For additional information contact your

local representative,

or HALO’s support staff at (650) 903-3800 or

info@haloelectronics.com
