32_MMBX-50-0-6/111_NE datasheet, PDF

Datasheet> All Categories > The connector> The connector> 32_MMBX-50-0-6/111_NE

32_MMBX-50-0-6/111_NE: DescriptionRF Adapters - Within Series; CategoryThe connector The connector; File Size115KB，1 Pages; ManufacturerHUBER+SUHNER; Environmental Compliance

Download Datasheet Parametric Compare View All

32_MMBX-50-0-6/111_NE Overview

RF Adapters - Within Series

32_MMBX-50-0-6/111_NE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	not_compliant
ECCN code	EAR99
Adapter type	MMBX-MMBX
Body/casing type	PLUG-PLUG
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE-MALE
Contact material	NOT SPECIFIED
Contact style	COAX
Coupling type	SNAP
DIN compliance	NO
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
insulator material	PFA/PTFE
MIL compliance	NO
Installation method	STRAIGHT
Maximum operating frequency	12.4 GHz
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Panel mounting	NO
reliability	COMMERCIAL
voltage standing wave ratio	1.81
Base Number Matches	1

Preview

Download Datasheet

View All

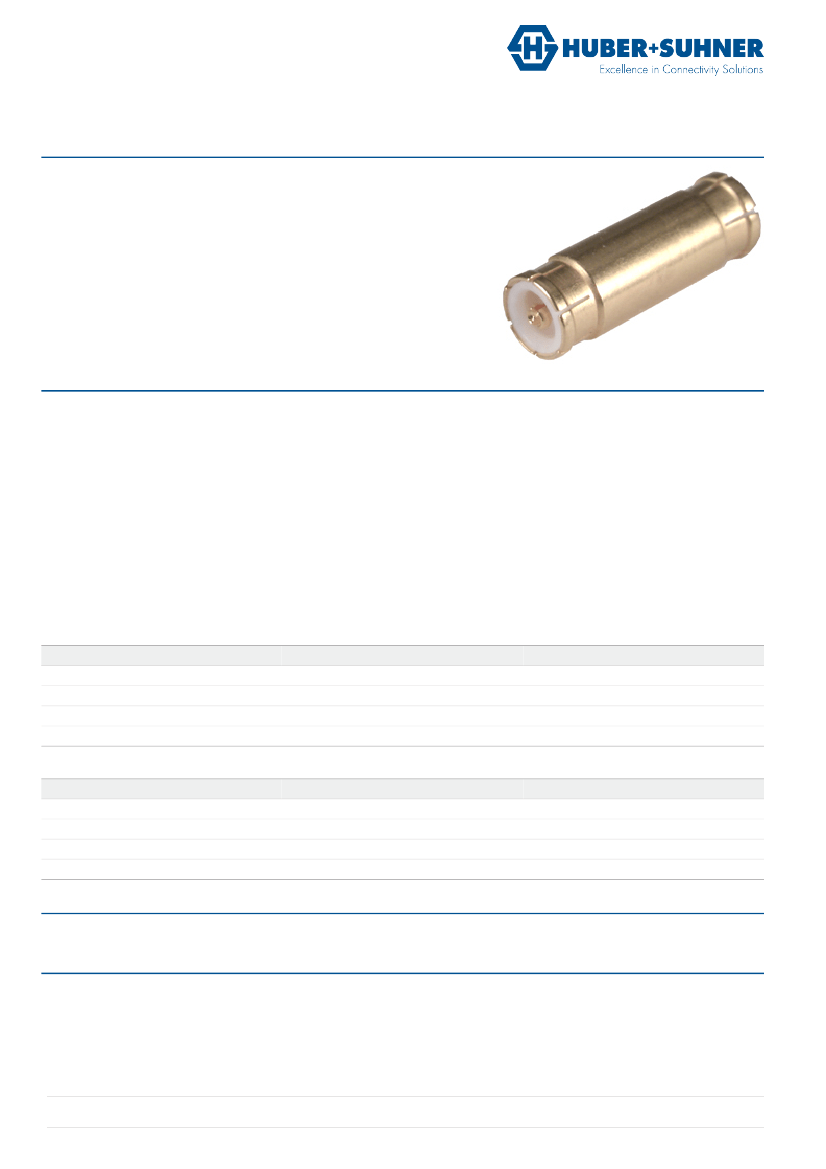

Data Sheet

Within Series Adaptor

32_MMBX-50-0-6/111_N

Description

Adaptor plug/plug

MMBX plug (male) / MMBX plug (male)

Slide - snap interface

Interface standard

Series MMBX - SUHNER-MMBX

Technical Data

Electrical Data

Impedance

Interface frequency max.

Frequency range

Return loss

50 Ω

12.4 GHz

DC to 2.5 GHz

≥ 26 dB

2.5 to 6 GHz

≥ 21 dB

6 to 12.4 GHz

≥ 12 dB

Mechanical Data

Number of matings

Weight

100

0.0007 kg

Environmental Data

Operating temperature

2011/65/EU (RoHS)

-55 °C to 155 °C

compliant

Material Data

Interface - MMBX plug (male)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Material

Copper Beryllium Alloy

Bronze

PFA / PTFE

Surface Plating

SUCOPRO Plating

Interface - MMBX plug (male)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Material

Copper Beryllium Alloy

Bronze

PFA / PTFE

Surface Plating

SUCOPRO Plating

32_MMBX-50-0-6/111_NE Related Products

	32_MMBX-50-0-6/111_NE	32_MMBX-50-0-6/111_NH
Description	RF Adapters - Within Series	RF Adapters - Within Series
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	not_compliant	compliant
Adapter type	MMBX-MMBX	MMBX-MMBX
Body/casing type	PLUG-PLUG	PLUG-PLUG
Characteristic impedance	50 Ω	50 Ω
Connector type	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER
Contact point gender	MALE-MALE	MALE-MALE
Contact material	NOT SPECIFIED	BERYLLIUM COPPER
Contact style	COAX	COAX
Coupling type	SNAP	SNAP
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
insulator material	PFA/PTFE	PFA/PTFE
MIL compliance	NO	NO
Installation method	STRAIGHT	STRAIGHT
Maximum operating frequency	12.4 GHz	12.4 GHz
Maximum operating temperature	155 °C	155 °C
Minimum operating temperature	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO
reliability	COMMERCIAL	COMMERCIAL
voltage standing wave ratio	1.81	1.81
Base Number Matches	1	1
