37_BMA-SMA-50-1/1--_UE

Description
RF Adapters - Between Series
CategoryThe connector    The connector
File Size125KB,2 Pages
ManufacturerHUBER+SUHNER
Environmental Compliance
Download Datasheet Parametric View All

37_BMA-SMA-50-1/1--_UE Overview

RF Adapters - Between Series

37_BMA-SMA-50-1/1--_UE Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
Adapter typeBMA-SMA
Other featuresSTANDARDS: IEC 60169-33; MIL 348A/321, VSWR MAX AT 9 GHZ
Body/casing typeJACK-JACK
Characteristic impedance50 Ω
Connector typeRF CONNECTOR ADAPTER
Contact point genderFEMALE-FEMALE
Contact styleCOAX
Coupling typeSLIDE ON-THREADED
Durability500 Cycles
Filter functionNO
insulator materialPFA/PTFE
Installation methodSTRAIGHT
Installation typePANEL
Maximum operating frequency18 GHz
Maximum operating temperature125 °C
Minimum operating temperature-65 °C
OptionsGENERAL PURPOSE
Panel mountingYES
voltage standing wave ratio1.22
Base Number Matches1

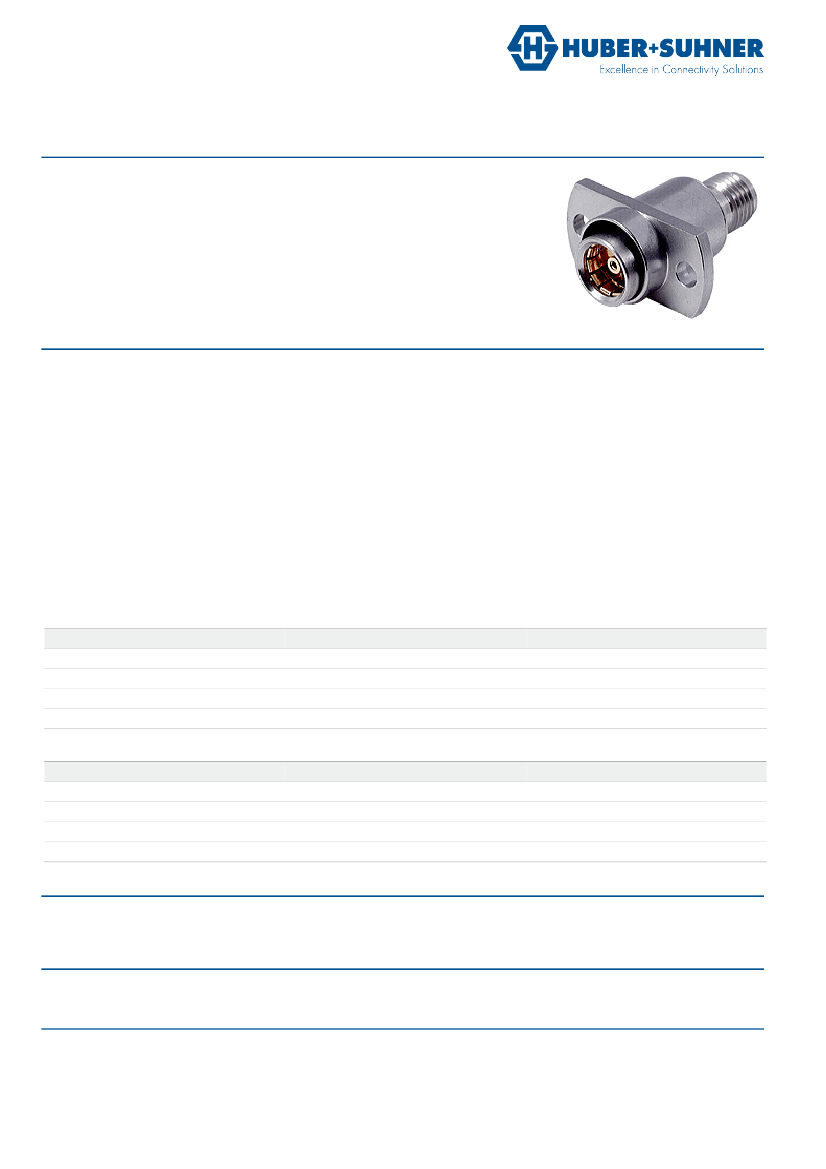

Data Sheet
Between Series Adaptor
37_BMA-SMA-50-1/1--_U
Description
Panel adaptor jack/jack, flange mount
BMA jack (female) / SMA jack (female)
Interface standards
Series BMA - IEC 60169-33_MIL-STD-348A/321
Series SMA - IEC 60169-15_MIL-STD-348A/310_CECC 22110
Technical Data
Electrical Data
Impedance
Interface frequency max.
VSWR
Frequency range
Return loss
50 Ω
18 GHz
DC - 9 GHz
≤ 1.07 + 0.017 f (GHz)
9 to 18 GHz
≥ 20.1 dB
Mechanical Data
Number of matings
Weight
500
0.0061 kg
Environmental Data
Operating temperature
2011/65/EC (RoHS)
-65 °C to 125 °C
compliant
Material Data
Interface - BMA jack (female)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Copper Beryllium Alloy
Stainless Steel
PFA / PTFE
Surface Plating
Gold Plating (without Nickel underplating)
Gold Plating (without Nickel underplating)
Interface - SMA jack (female)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Stainless Steel
Stainless Steel
PFA / PTFE
Surface Plating
Gold Plating (without Nickel underplating)
Related Documents
Outline drawing
Mounting hole
DOU-00014085
DOU-00008816
Ordering Information
Single package
37_BMA-SMA-50-1/1--_UE
Remarks
Impedance matching
DC to 9 GHz: VSWR <= 1.07 + 0.017 * f [GHz]
9 to 18 GHz: VSWR <= 1.22 / return loss >= 20.1 dB
Document: DOC-0000195110 V / PDO F / date of publication: 10.04.2017 18:47:37 / uncontrolled copy
Page 1/2
