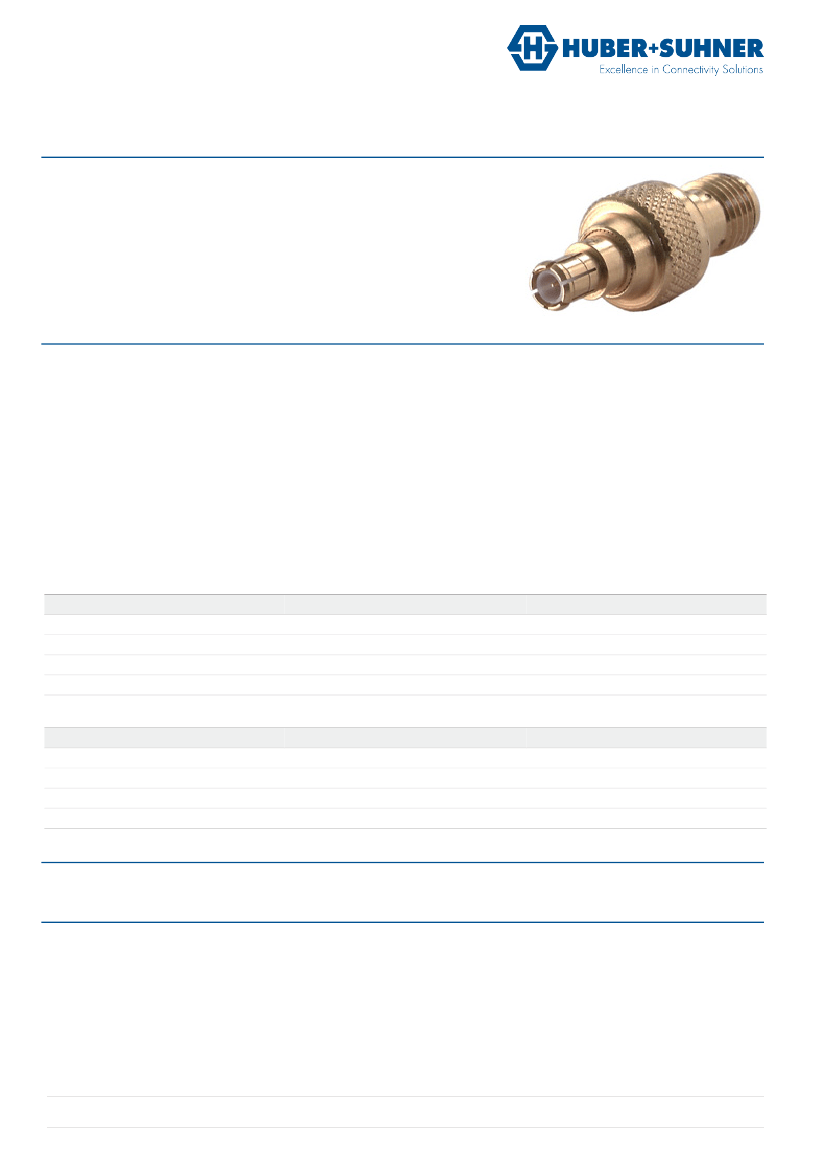

Data Sheet
Between Series Adaptor
33_MCX-SMA-50-1/111_U
Description
Adaptor plug/jack
MCX plug (male) / SMA jack (female)
Interface standards
Series MCX - IEC 60169-36_CECC 22220
Series SMA - IEC 60169-15_MIL-STD-348A/310_CECC 22110
Technical Data
Electrical Data
Impedance
Interface frequency max.
VSWR
50 Ω
6 GHz
DC - 6 GHz
≤ 1.03 + 0.03 f (GHz)
Mechanical Data
Number of matings
Weight
500
0.0048 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-55 °C to 125 °C
compliant
Material Data
Interface - MCX plug (male)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Brass
Copper Beryllium Alloy
Copper Beryllium Alloy
PFA / PTFE
Surface Plating
Gold Plating (without Nickel underplating)
Gold Plating (without Nickel underplating)
Gold Plating (without Nickel underplating)
Interface - SMA jack (female)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Copper Beryllium Alloy
Brass
PFA / PTFE
Surface Plating
Gold Plating (without Nickel underplating)
Gold Plating (without Nickel underplating)
Gold Plating (without Nickel underplating)
Related Documents
Catalogue drawing
DPA-00040831
Ordering Information
Single package
33_MCX-SMA-50-1/111_UE
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000195350 S / PDO G / date of publication: 14.09.2015 17:14:21 / uncontrolled copy
Page 1/1
