74029-8052

Description
High speed/module connector VHDM/HSD BP PWR 8DR STND 50 SAU 6CKT
CategoryThe connector    The connector
File Size34KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

74029-8052 Online Shopping

Suppliers Part Number Price MOQ In stock
74029-8052 - - View Buy Now

74029-8052 Overview

High speed/module connector VHDM/HSD BP PWR 8DR STND 50 SAU 6CKT

74029-8052 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time25 weeks 5 days
body width0.453 inch
subject depth0.596 inch
body length0.572 inch
Connector typeBOARD CONNECTOR
Contact arrangementS0P6
Contact to complete cooperationAU
Contact point genderFEMALE
Contact materialCOPPER ALLOY
Contact resistance3 mΩ
Contact styleBLADE PIN-SKT
Dielectric withstand voltage750VAC V
Durability200 Cycles
Insulation resistance10000000000 Ω
Insulator colorBLACK
insulator materialLIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number74029
Mixed contactsYES
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
Maximum operating temperature105 °C
Plating thickness50u inch
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.13 inch
Termination typePRESS FIT
Total number of contacts6
Base Number Matches1

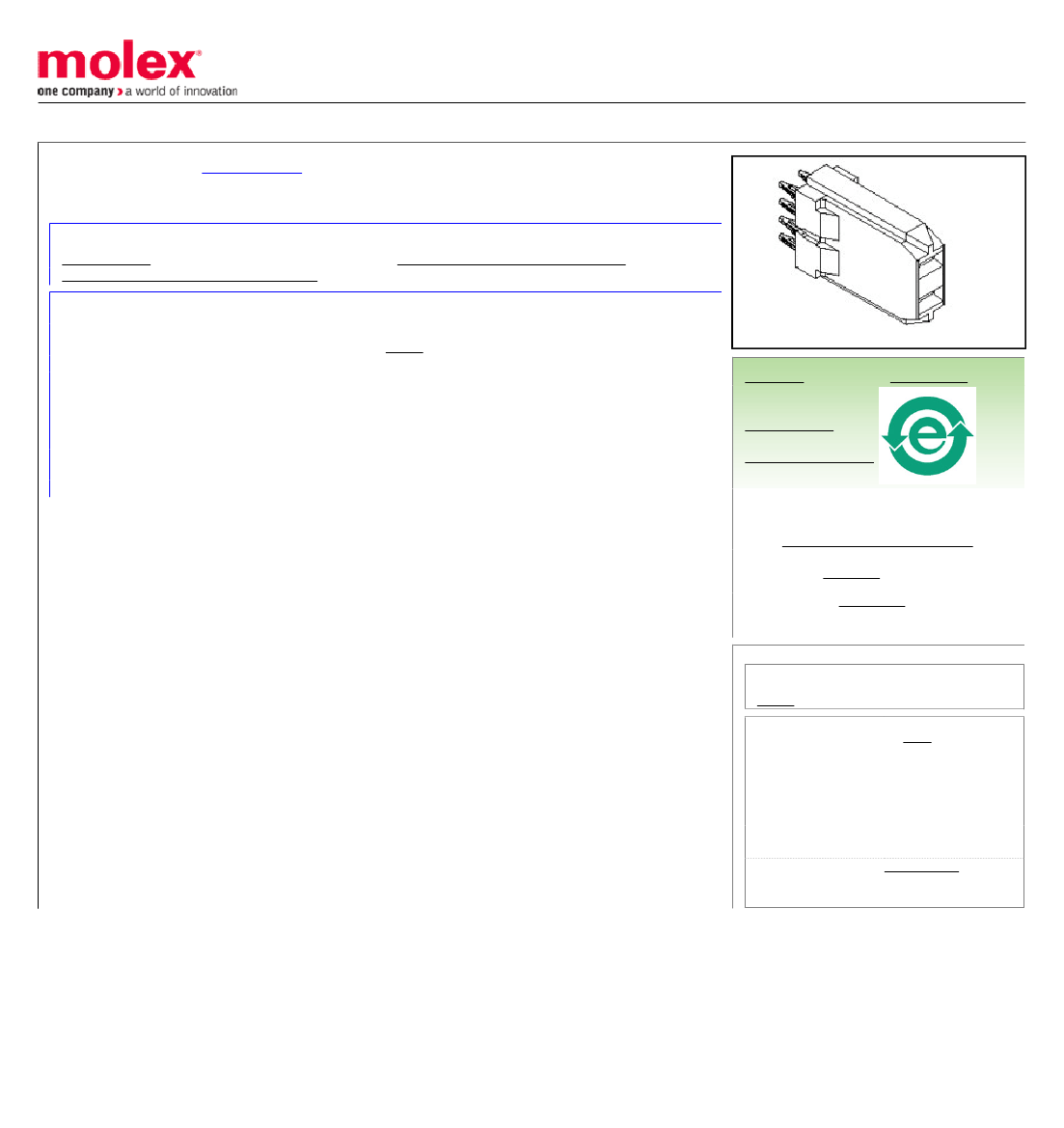

This document was generated on 02/03/2014
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
74029-8052
Active
VHDM/HSD BP Pwr 8 DR Stnd 50"SAu 6Ckt
Documents:
Drawing (PDF)
Product Specification PS-74031-999 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
UPC
Backplane Connectors
74029
822348084982
image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Low-Halogen
China RoHS
Series
Physical
Net Weight
3.042/g
Material Info
Reference - Drawing Numbers
Product Specification
PS-74031-999
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
74029Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Backplane 6 and 8- 0622020211
Row Power Module
Insertion Tool
This document was generated on 02/03/2014
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
