33_N-SMA-50-51/1--_UE

Description
RF Adapters - Between Series
CategoryThe connector    The connector
File Size130KB,2 Pages
ManufacturerHUBER+SUHNER
Download Datasheet Parametric View All

33_N-SMA-50-51/1--_UE Overview

RF Adapters - Between Series

33_N-SMA-50-51/1--_UE Parametric

Parameter NameAttribute value
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
Adapter typeN-SMA
Other featuresSTANDARDS: IEC 60169-16; MIL-STD-348A/304
Body/casing typePLUG-JACK
Characteristic impedance50 Ω
Connector typeRF CONNECTOR ADAPTER
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE-FEMALE
Contact materialNOT SPECIFIED
Coupling typeTHREADED
DIN complianceNO
Filter functionNO
IEC complianceYES
insulator materialPPH
MIL complianceYES
Maximum operating frequency18 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
voltage standing wave ratio1.15
Base Number Matches1

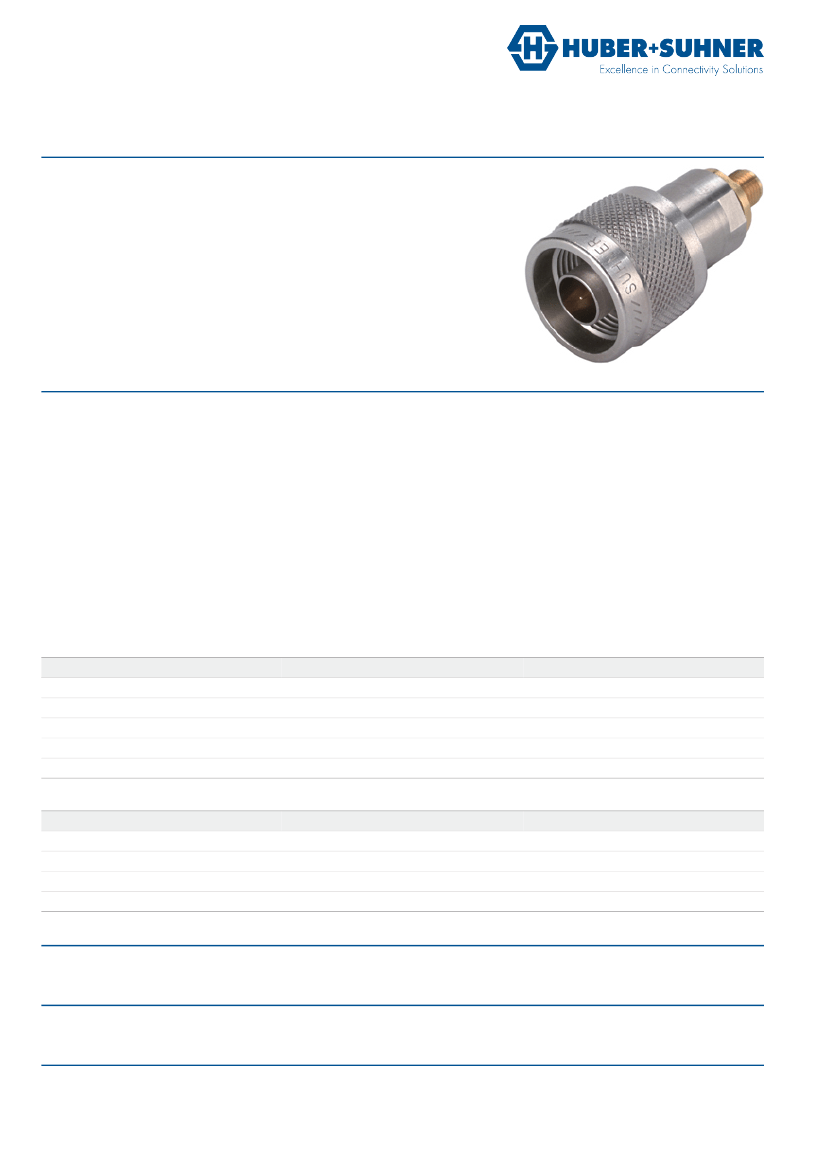

Data Sheet
Between Series Adaptor
33_N-SMA-50-51/1--_U
Description
Adaptor plug/jack
N-precision plug (male) / SMA-precision jack (female)
For Test & Measurement applications
Precision adaptor
Interface standards
Series N-precision - IEC 60169-16_MIL-STD-348A/402_CECC 22210
Series SMA-precision - IEC 60169-15_MIL-STD-348A/405_CECC 22110
Technical Data
Electrical Data
Impedance
Interface frequency max.
VSWR
Electrical length
50 Ω
18 GHz
DC - 18 GHz
≤ 1.025 + 0.007 f (GHz)
40.94 mm
Mechanical Data
Number of matings
Weight
500
0.0399 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-55 °C to 70 °C
compliant
Material Data
Interface - N-precision plug (male)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Coupling nut
Material
Copper Beryllium Alloy
Stainless Steel
Stainless Steel
Air Dielectric - Bead - PPH
Brass
SUCOPLATE (R) Plating
Surface Plating
Gold Plating (without Nickel underplating)
Interface - SMA-precision jack (female)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Copper Beryllium Alloy
Copper Beryllium Alloy
Air Dielectric - Bead - PPH
Surface Plating
Gold Plating (without Nickel underplating)
Gold Plating (without Nickel underplating)
Gold Plating (without Nickel underplating)
Related Documents
Catalogue drawing
DCA-00014311
Ordering Information
Single package
33_N-SMA-50-51/1--_UE
Remarks
Operating specification acc. IEEE Std 287: temperature 13 °C to 33 °C
Insertion loss: < 0.06 dB up to 18 GHz
Document: DOC-0000195316 Q / PDO I / date of publication: 12/4/2014 4:32:07 PM / uncontrolled copy
Page 1/2
