32_MBX-50-0-2/111_NH

Description
RF Adapters - Within Series
CategoryThe connector    The connector
File Size118KB,1 Pages
ManufacturerHUBER+SUHNER
Download Datasheet Parametric Compare View All

32_MBX-50-0-2/111_NH Overview

RF Adapters - Within Series

32_MBX-50-0-2/111_NH Parametric

Parameter NameAttribute value
MakerHUBER+SUHNER
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
Adapter typeMBX-MBX
Body/casing typePLUG-PLUG
Characteristic impedance50 Ω
Connector typeRF CONNECTOR ADAPTER
Contact point genderMALE-MALE
Coupling typeSNAP
DIN complianceNO
Filter functionNO
IEC complianceNO
insulator materialLCP/PFA/PTFE
MIL complianceNO
Maximum operating frequency6 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
Base Number Matches1

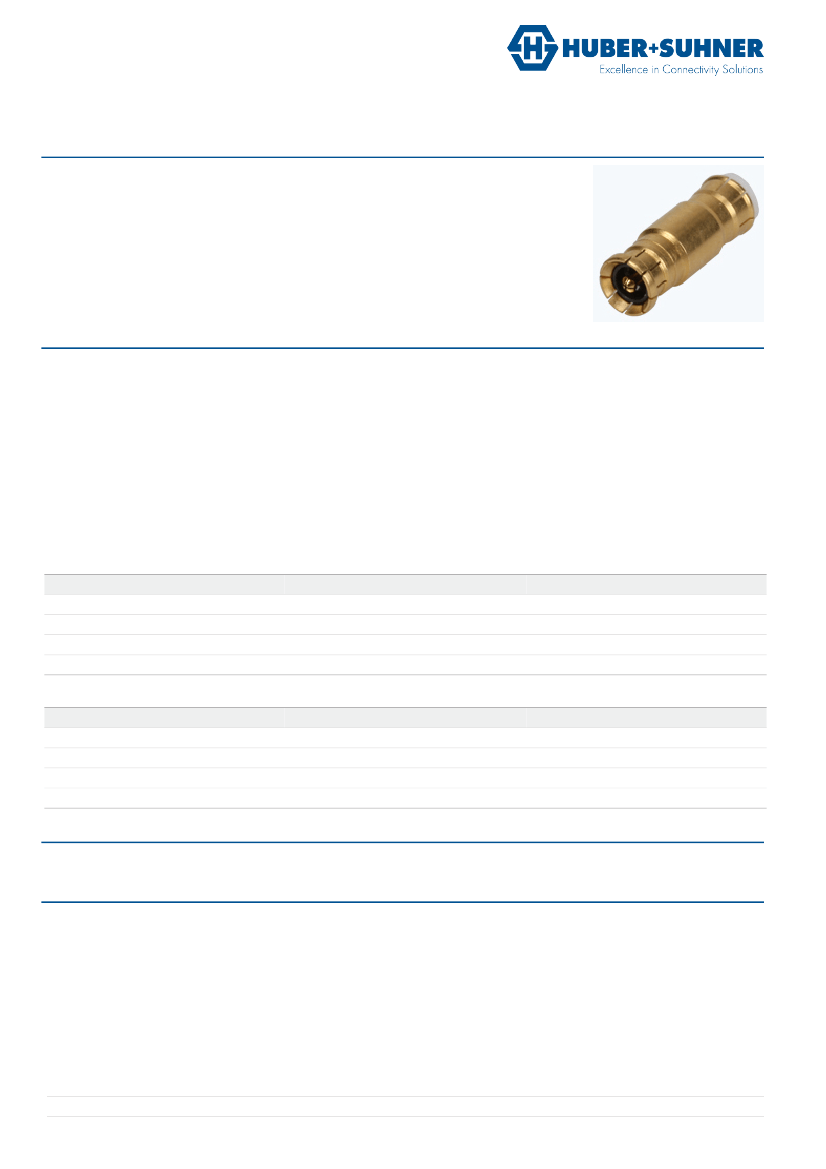

Data Sheet
Within Series Adaptor
32_MBX-50-0-2/111_N
Description
Adaptor plug/plug
MBX plug (male) / MBX plug (male)
Slide - snap interface
Interface standard
Series MBX - HUBER+SUHNER MBX
Technical Data
Electrical Data
Impedance
Interface frequency max.
50 Ω
6 GHz
Mechanical Data
Number of matings
Weight
100
0.000881 kg
Environmental Data
Operating temperature
2011/65/EC (RoHS)
-55 °C to 155 °C
compliant
Material Data
Interface - MBX plug (male)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Bronze
Bronze
PFA / PTFE / LCP
Surface Plating
SUCOPRO Plating
SUCOPRO Plating
Gold Plating
Interface - MBX plug (male)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Bronze
Bronze
PFA / PTFE / LCP
Surface Plating
SUCOPRO Plating
SUCOPRO Plating
Gold Plating
Related Documents
Outline drawing
DOU-00145547
Ordering Information
Bulk 100 pcs package
Single package
32_MBX-50-0-2/111_NH
32_MBX-50-0-2/111_NE
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, AS/EN9100, ISO/TS 16949 and IRIS.
Waiver: Fact and figures herein are for information only and do not represent any warranty of any kind.
www.hubersuhner.com
Document: DOC-0000331568 O / PDO F / date of publication: 01.02.2017 18:47:54 / uncontrolled copy
Page 1/1

32_MBX-50-0-2/111_NH Related Products

32_MBX-50-0-2/111_NH 32_MBX-50-0-2/111_NE
Description RF Adapters - Within Series RF Adapters - Within Series
Maker HUBER+SUHNER HUBER+SUHNER
package instruction ROHS COMPLIANT ROHS COMPLIANT
Reach Compliance Code compliant compliant
Adapter type MBX-MBX MBX-MBX
Body/casing type PLUG-PLUG PLUG-PLUG
Characteristic impedance 50 Ω 50 Ω
Connector type RF CONNECTOR ADAPTER RF CONNECTOR ADAPTER
Contact point gender MALE-MALE MALE-MALE
Coupling type SNAP SNAP
DIN compliance NO NO
Filter function NO NO
IEC compliance NO NO
insulator material LCP/PFA/PTFE LCP/PFA/PTFE
MIL compliance NO NO
Maximum operating frequency 6 GHz 6 GHz
Options GENERAL PURPOSE GENERAL PURPOSE
Panel mounting NO NO
Base Number Matches 1 1
