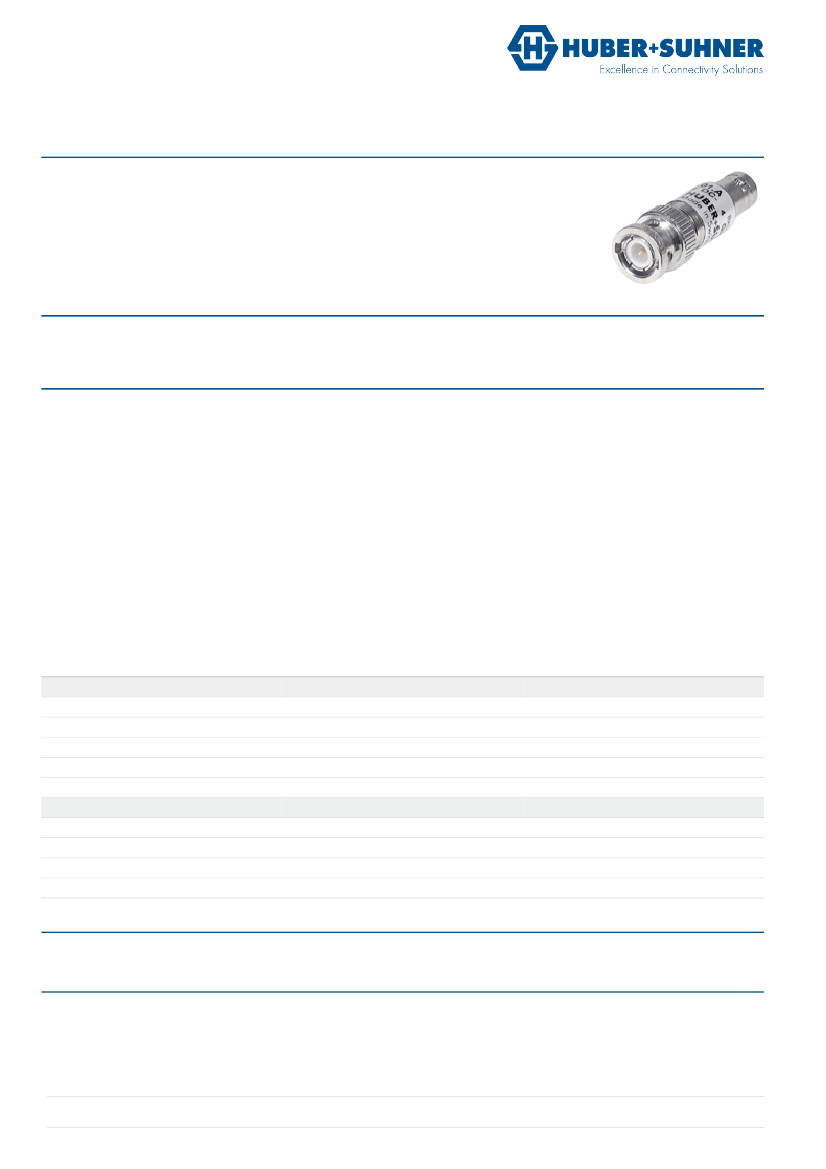

Data Sheet
RF Attenuator
6810.01.A
Description
Standard Attenuator, Low Power
Product Configuration
Connector (side 1 / side 2)
Interface Standards
BNC plug (male) / BNC jack (female)
IEC 60169-8_MIL-STD-348A/301_CECC 22120
Technical Data
Electrical Data
Nominal impedance
Nominal attenuation
Frequency range
Frequency sub range (GHz)
Attenuation deviation (±dB)
VSWR max.
Power rating
50 Ω
10 dB
DC to 4 GHz
DC to 2
0.3
1.1
2 to 4
0.5
1.2
1 Watt average power up to 30 ˚C ambient temperature, linearly derated to 0 Watt at 130 ˚C ambient
temperature.
500 Watt peak power, 5 µs pulse, 0.05 % duty cycle
Mechanical Data
Weight
0.025 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-55 °C to 130 °C
compliant
Material Data
Piece Part (side 1)
Centre contact
Outer contact
Body
Insulator
Coupling nut
Piece Part (side2)
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Brass
Brass
PFA / PTFE
Brass
Material
Copper Beryllium Alloy
Brass
Brass
PFA / PTFE
SUCOPLATE (R) Plating
Surface Plating
Gold Plating
SUCOPLATE (R) Plating
SUCOPLATE (R) Plating
Surface Plating
Gold Plating
SUCOPLATE (R) Plating
SUCOPLATE (R) Plating
Related Documents
Outline drawing
DOU-00005238
Ordering Information
Single packaging
6810.01.A
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000227043 K / PDO I / date of publication: 08.10.2014 16:47:35 / uncontrolled copy
Page 1/1
