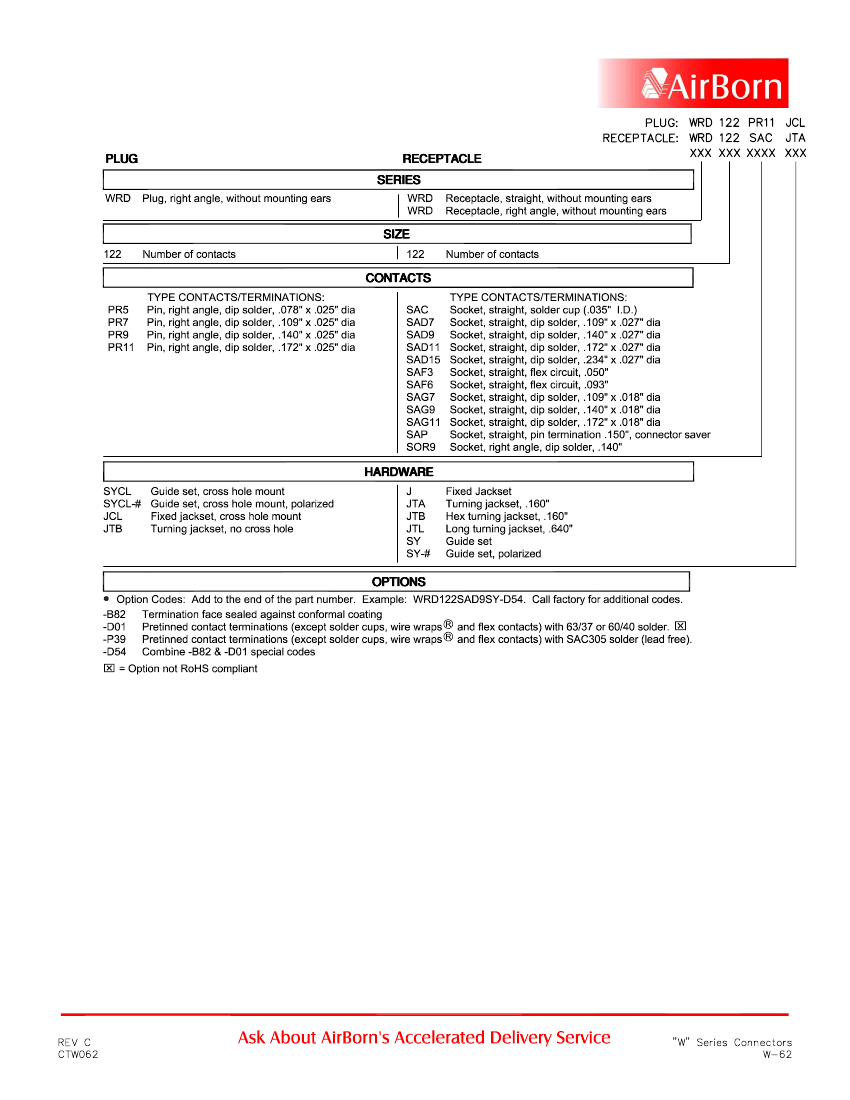

WRD122PR9SYCL: DescriptionRectangular Mil-Spec Connector 3Row R Ang Plug Board Mount; CategoryThe connector The connector; File Size458KB，2 Pages; ManufacturerAirBorn

Download Datasheet Parametric Compare View All

WRD122PR9SYCL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	WRD122PR9SYCL	-	-	View	Buy Now

Rectangular Mil-Spec Connector 3Row R Ang Plug Board Mount

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AirBorn
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.5 inch
subject depth	0.635 inch
body length	3.45 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	5 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e0
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Rated current (signal)	5 A
reliability	COMMERCIAL
Terminal length	0.172 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	122

	WRD122PR9SYCL	WRD122SACJTB	WRD122SAD9SY	WRD122PR9JCL
Description	Rectangular Mil-Spec Connector 3Row R Ang Plug Board Mount	Rectangular Mil-Spec Connector 3Row Straight Recptl I/O	Rectangular Mil-Spec Connector 3Row Straight Recptl Board Mount	Rectangular Mil-Spec Connector 3Row R Ang Plug Board Mount
Maker	AirBorn	AirBorn	AirBorn	AirBorn
Reach Compliance Code	compliant	compliant	compliant	compliant
Body/casing type	PLUG	RECEPTACLE	RECEPTACLE	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	FEMALE	FEMALE	MALE
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO
Installation method	RIGHT ANGLE	STRAIGHT	STRAIGHT	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	4	4	4	4
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	122	122	122	122
Contact completed and terminated	Tin/Lead (Sn/Pb)	TIN LEAD	TIN LEAD	-
JESD-609 code	e0	e0	e0	-
