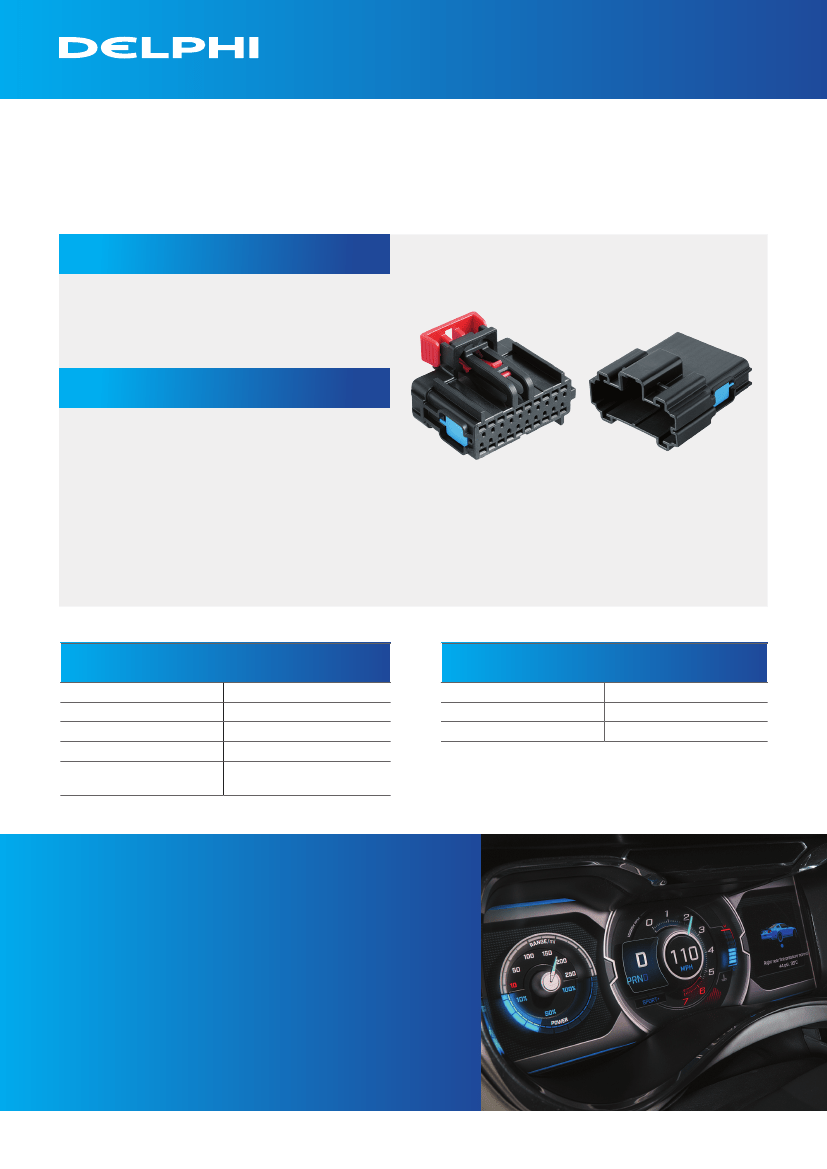

OCS
1.2 Unsealed
Series
OCS Family benefits
• Enhanced connection system warranty
performance
• Robust reliability and design-in durability
1.2 Unsealed Series features
• Optimized connector face to prevent terminal
stubbing
• Full Locking System (FLS) for superior terminal
locking detection and retention
• Outer cavities accept 1.5mm² cable for greater
flexibility (4-20 way)
• Optional Connector Position Assurance (CPA)
for higher reliability
See back page for representative part numbers.
OCS 1.2 Unsealed
Female Connector
OCS 1.2 Unsealed
Male Connector
Available configurations
Cavity Count (ways)
Cavity Configurations
Materials
Mating Type
Applications
2,4,6,8,12,16,20
All 1.2
PA, PBT
Hand-Mate
Passenger Compartment
Inlines
Technical characteristics
Temperature Range
Vibration Class
Sealing Class
T2 (-40 to +100˚C)
V1 (Chassis Profile)
S1 (Unsealed)
Delphi advantages
Delphi is one of the world’s leading automotive and
transportation market suppliers of advanced terminals,
connectors, sealing, wiring and cable products.
Delphi’s deep understanding of various connection
system technologies and the company’s vast research
and development capabilities have enabled continuing
innovation.
Connect with us at
delphi.com
delphi.com
| Delphi. All rights reserved.
Part numbers
Cavity
count
2
2
4
4
6
6
8
8
12
12
16
16
20
20
Blade size
(mm)
Gender
F
M
F
M
F
M
F
M
F
M
F
M
F
M
Dimensions
W x H x D (mm)
Part Number
33277559
33277549
33198617
33198634
33257488
33257503
33255744
33255759
33250071
33250086
33257519
33257537
33239497
33239518
Index
A
A
A
A
A
A
A
A
A
A
A
A
A
A
Color
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
CPA
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Indexes offered
A, B, C, D
A, B, C, D
A, B, C, D, E, F
A, B, C, D, E, F
A, B, C, D, E, F
A, B, C, D, E, F
A, B, C, D, E, F
A, B, C, D, E, F
A, B, C, D, E, F
A, B, C, D, E, F
A, B, C, D, E, F
A, B, C, D, E, F
A, B, C, D, E, F
A, B, C, D, E, F
1.2
1.2
1.2
1.2
1.2
1.2
1.2
1.2
1.2
1.2
1.2
1.2
1.2
1.2
23 x 10.53 x 11.14
35.55 x 14 x 11.93
30.5 x 18.14 x 20.48
38.95 x 18.83 x 21.61
30.5 x 23.42 x 20.48
38.95 x 24.63 x 20.17
30.5 x 17.53 x 23.01
38.95 x 19.96 x 24.1
30.5 x 23.33 x 23.01
38.95 x 25.76 x 22.75
30.5 x 29.13 x 23.01
38.95 x 31.56 x 22.75
30.5 x 34.93 x 23.01
38.95 x 37.36 x 22.75
Part numbers, specifications, dimensions and performance data in this document are for general references only and are subject to change
without notice. To verify product information, please contact a Delphi representative.
delphi.com
| Delphi. All rights reserved.
DCS-SP1-OCS-En0317
