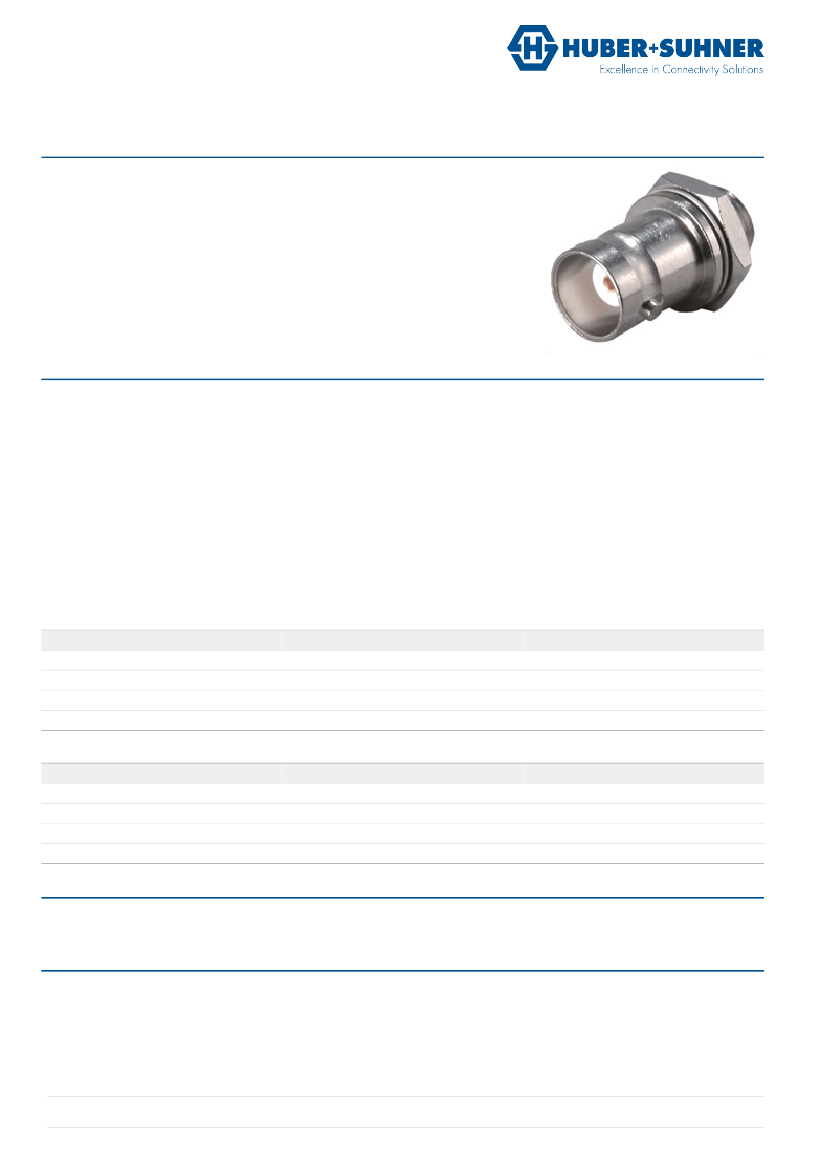

Data Sheet
Between Series Adaptor
34_BNC-MCX-50-2/133_U
Description
Bulkhead adaptor jack/jack
BNC jack (female) / MCX jack (female)
Interface standards
Series BNC - IEC 61169-8_MIL-STD-348A/301_CECC 22120
Series MCX - IEC 60169-36_CECC 22220
Technical Data
Electrical Data
Impedance
Interface frequency max.
VSWR
50 Ω
4 GHz
DC - 4 GHz
≤ 1.03 + 0.04 f (GHz)
Mechanical Data
Number of matings
Weight
500
0.0096 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-55 °C to 155 °C
compliant
Material Data
Interface - BNC jack (female)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Brass
Brass
PFA / PTFE
Surface Plating
Gold Plating (without Nickel underplating)
SUCOPLATE (R) Plating
SUCOPLATE (R) Plating
Interface - MCX jack (female)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Brass
Brass
PFA / PTFE
Surface Plating
Gold Plating (without Nickel underplating)
SUCOPLATE (R) Plating
SUCOPLATE (R) Plating
Related Documents
Catalogue drawing
Mounting hole
DCA-00014161
DOU-00008762
Ordering Information
Single package
34_BNC-MCX-50-2/133_UE
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000195177 Q / PDO D / date of publication: 12/4/2014 4:36:42 PM / uncontrolled copy
Page 1/1
