32_MCX-50-0-3/111_NE

Description
RF Adapters - Within Series
CategoryThe connector    The connector
File Size98KB，1 Pages
ManufacturerHUBER+SUHNER
Environmental Compliance
Download Datasheet Parametric View All

32_MCX-50-0-3/111_NE Overview

RF Adapters - Within Series

32_MCX-50-0-3/111_NE Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerHUBER+SUHNER
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
Adapter typeMCX-MCX
Other featuresSTANDARD: IEC 60169-36
Body/casing typePLUG-PLUG
Characteristic impedance50 Ω
Connector typeRF CONNECTOR ADAPTER
Contact to complete cooperationGOLD OVER NICKEL
Contact completed and terminatedGold (Au) - with Nickel (Ni) barrier
Contact point genderMALE-MALE
Contact materialBERYLLIUM COPPER
Coupling typeSNAP
DIN complianceNO
Filter functionNO
IEC complianceYES
insulator materialPFA/PTFE
JESD-609 codee4
MIL complianceNO
Maximum operating frequency6 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
voltage standing wave ratio1.58
Base Number Matches1

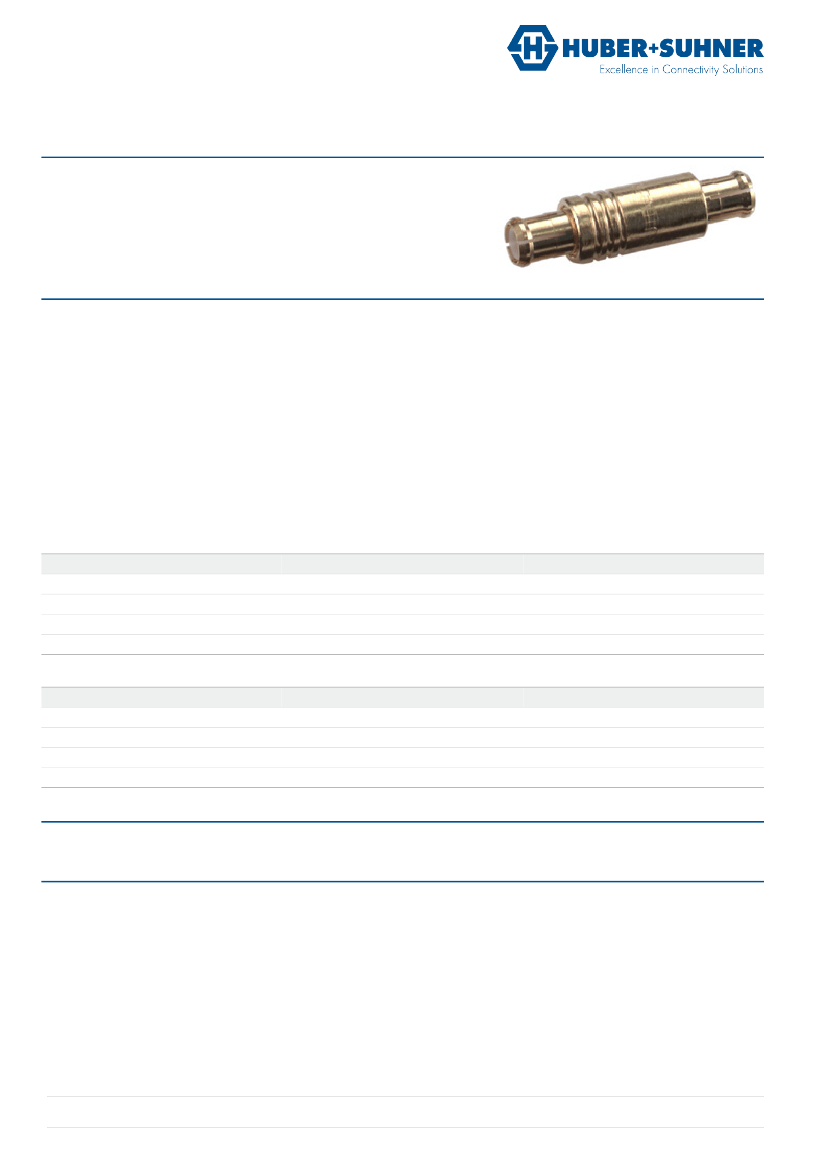

Preview

Download Datasheet
Data Sheet
Within Series Adaptor
32_MCX-50-0-3/111_N
Description
Adaptor plug/plug
MCX plug (male) / MCX plug (male)
Interface standard
Series MCX - IEC 60169-36_CECC 22220
Technical Data
Electrical Data
Impedance
Interface frequency max.
Frequency range
Return loss
50 Ω
6 GHz
DC to 1.5 GHz
≥ 30 dB
1.5 to 6 GHz
≥ 20 dB
Mechanical Data
Number of matings
Weight
500
0.0015 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-55 °C to 155 °C
compliant
Material Data
Interface - MCX plug (male)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Brass
Copper Beryllium Alloy
Brass
PFA / PTFE
Surface Plating
Gold Plating (Nickel underplated)
Gold Plating (Nickel underplated)
Gold Plating (Nickel underplated)
Interface - MCX plug (male)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Brass
Copper Beryllium Alloy
Brass
PFA / PTFE
Surface Plating
Gold Plating (Nickel underplated)
Gold Plating (Nickel underplated)
Gold Plating (Nickel underplated)
Related Documents
Outline drawing
DOU-00013773
Ordering Information
Single package
32_MCX-50-0-3/111_NE
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000194348 R / PDO D / date of publication: 12/4/2014 4:42:01 PM / uncontrolled copy
Page 1/1
