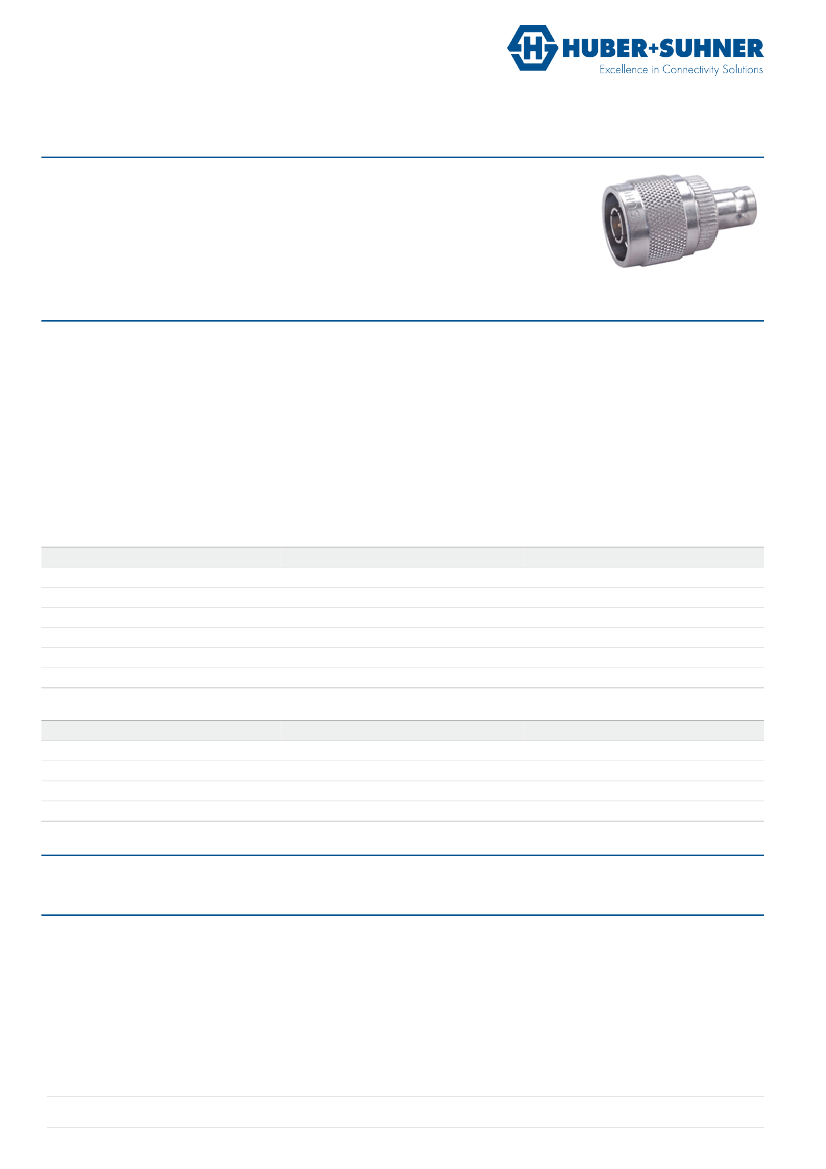

Data Sheet
Between Series Adaptor
33_N-BNC-75-1/133_U
Description
Adaptor plug/jack
N plug (male) / BNC jack (female)
Interface standards
Series N - Not compatible to N 50 Ohms
Series BNC - Compatible with IEC 61169-8_MIL-STD-348A/301_CECC 22120
Technical Data
Electrical Data
Impedance
Interface frequency max.
75 Ω
1 GHz
Mechanical Data
Number of matings
Weight
500
0.0389 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-65 °C to 165 °C
compliant
Material Data
Interface - N plug (male)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Coupling nut
Gasket
Material
Copper Beryllium Alloy
Brass
Brass
PFA / PTFE
Brass
VMQ (Silicone rubber)
SUCOPLATE (R) Plating
Surface Plating
Gold Plating (without Nickel underplating)
SUCOPLATE (R) Plating
SUCOPLATE (R) Plating
Interface - BNC jack (female)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Brass
Brass
PFA / PTFE
Surface Plating
Gold Plating (without Nickel underplating)
SUCOPLATE (R) Plating
SUCOPLATE (R) Plating
Related Documents
Outline drawing
DOU-00014314
Ordering Information
Single package
33_N-BNC-75-1/133_UE
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000195321 N / PDO C / date of publication: 12/4/2014 4:39:28 PM / uncontrolled copy
Page 1/1
