831700C3.0

Description
Basic/Snap Action Switch SNSW 8A PCB BTM ASYM NONE
CategoryMechanical and electronic products    switch    Basic/quick switch
File Size356KB,7 Pages
ManufacturerCrouzet
Download Datasheet Parametric View All

831700C3.0 Overview

Basic/Snap Action Switch SNSW 8A PCB BTM ASYM NONE

831700C3.0 Parametric

Parameter NameAttribute value
MakerCrouzet
Product CategoryBasic/snap-action switch
Shipping restrictionsMouser does not currently sell this product.
Termination typeSolder Pin
lighting color-
illuminationNon-Illuminated
Lamp type-
Installation stylePCB Mount
Factory packaging quantity1
02/11/2015
www.crouzet.com

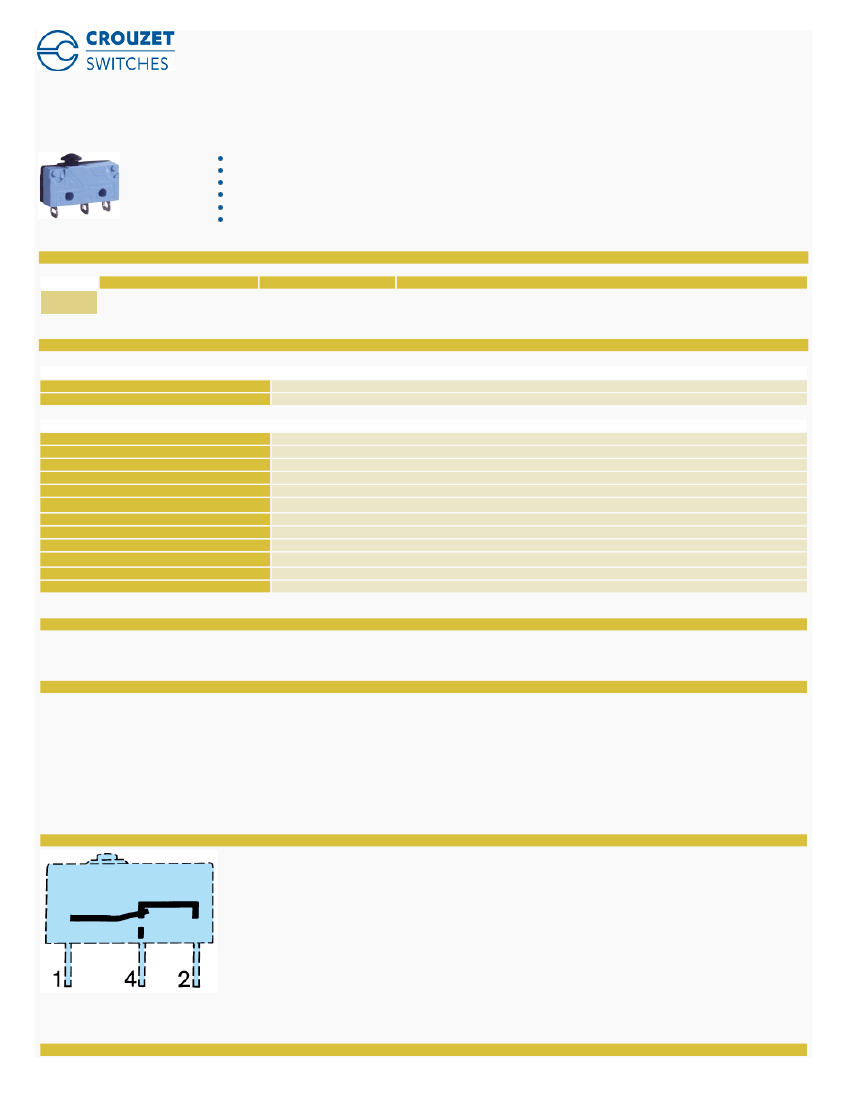

V4 83170 Mushroom-head button Standard 831700 Part number made to order
Nominal ratings 0.1 A to 10 A / 250 VAC
Minimum rating 1 mA / 4 VDC
Operating temperature up to +125 °C
Operated via multidirectional action
Conforming to standards EN 61058 and UL 1054
Choice of actuators with 2 possible fixing positions
Part numbers
Type
MADE TO
ORDER
Standard 831700
Function
I (changeover)
Connections

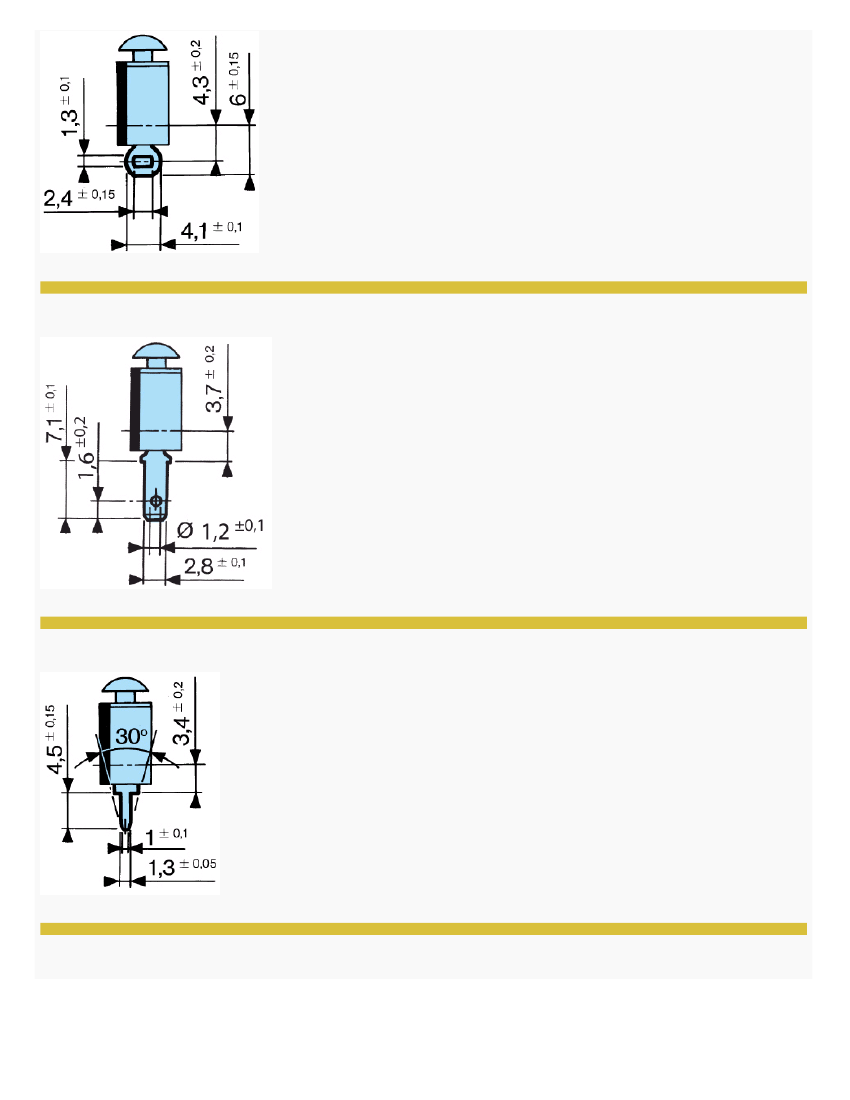

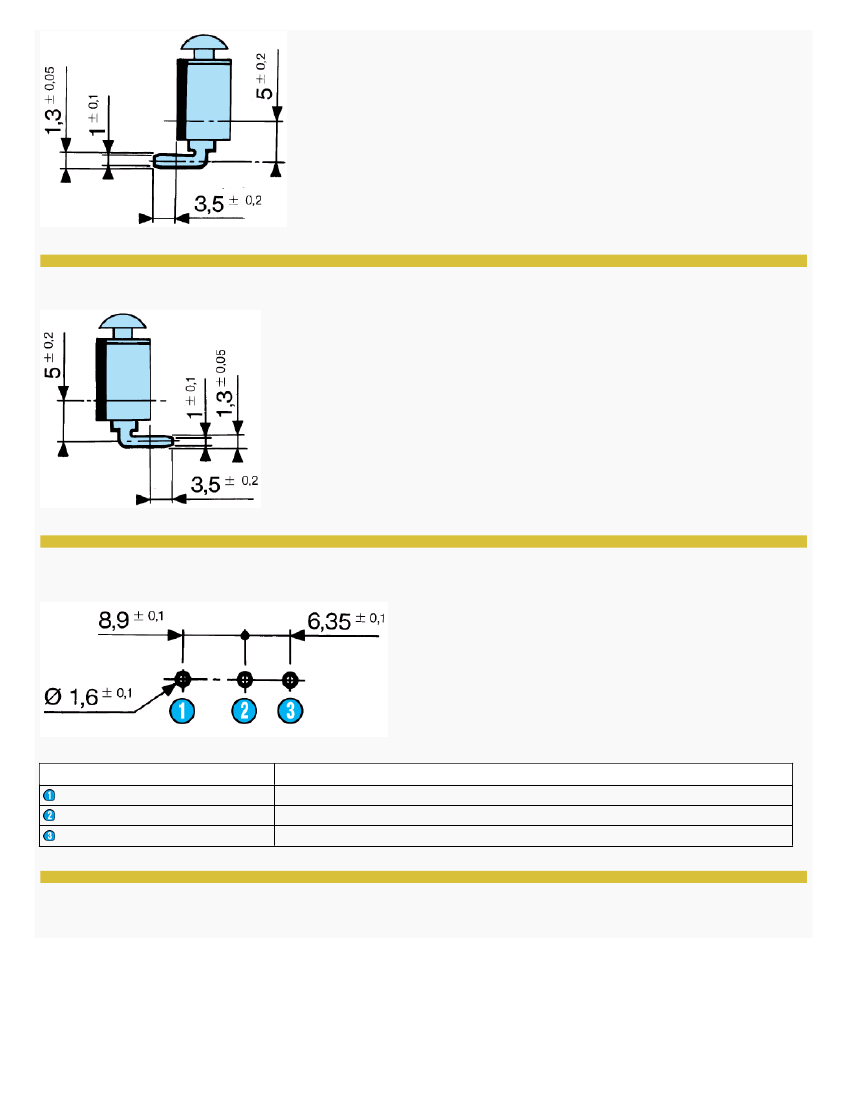

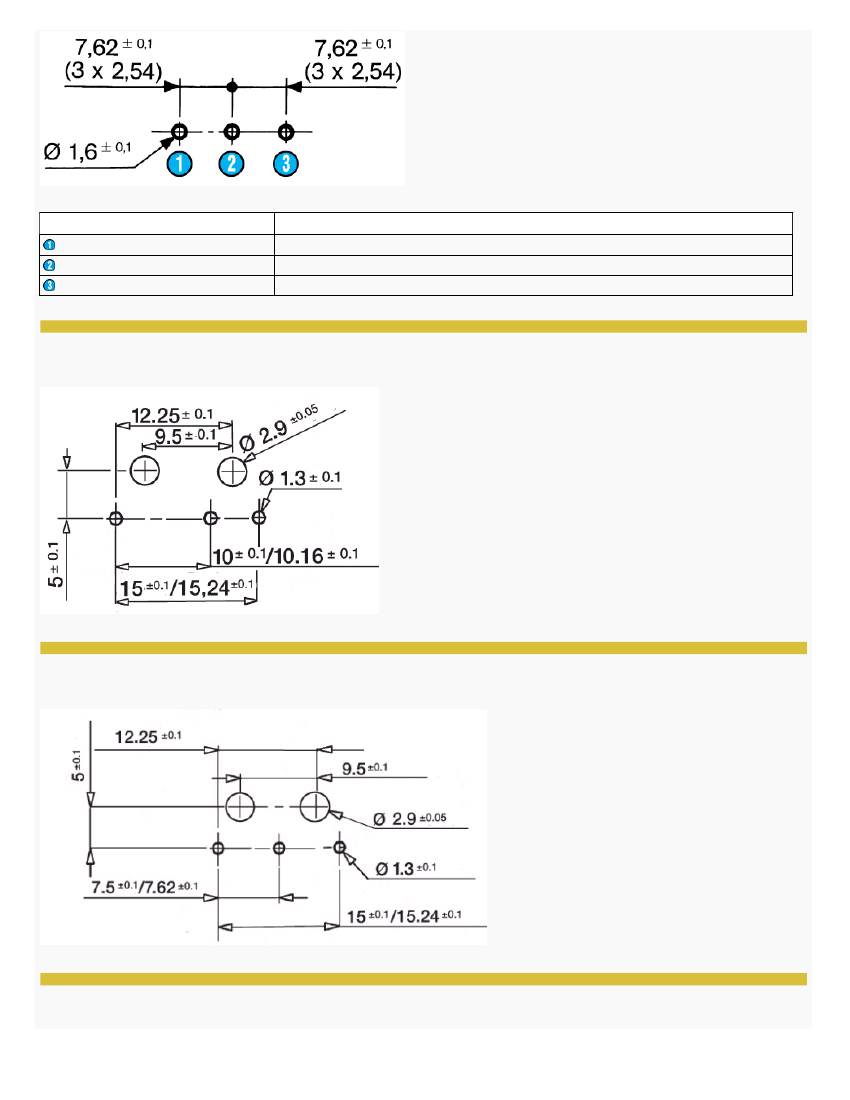

W2 - W7A5 - X1 - X1S - X2 - X2S - X3 - X3S
Specifications
Electrical characteristics
Rating nominal / 250 VAC (A)
Rating thermal / 250 VAC (A)
10
12,5
Mechanical characteristics
Maximum operating force (N)
Min. Release force (N)
Maximum total travel force (N)
Max. permitted overtravel force (N)
Maximum rest position (mm)
Operating position (mm)
Maximum differential travel (mm)
Min. overtravel (mm)
Ambient operating temperature (°C)
Mechanical life (operations)
Contact gap (mm)
Weight (g)
1,5
0,3
1,8
10
10,8
9,9
±0,3
0,15
0,5
-20 →+125
10
6
**
0,4
1,7
Comments
* see operating curves
** for 2/3 of the overtravel
Additional specifications
Components
Material
- Case : polyester UL 94 VO
- Button : glass-filled polyamide
- Contacts : nickel silver - gold alloy (dual-current)
- Terminals : cupro-nickel except W7A5 in brass
Levers
- Flat : stainless steel
- Roller : stainless steel, polyamide roller
Approvals :
NF - UL - cUL
Principles

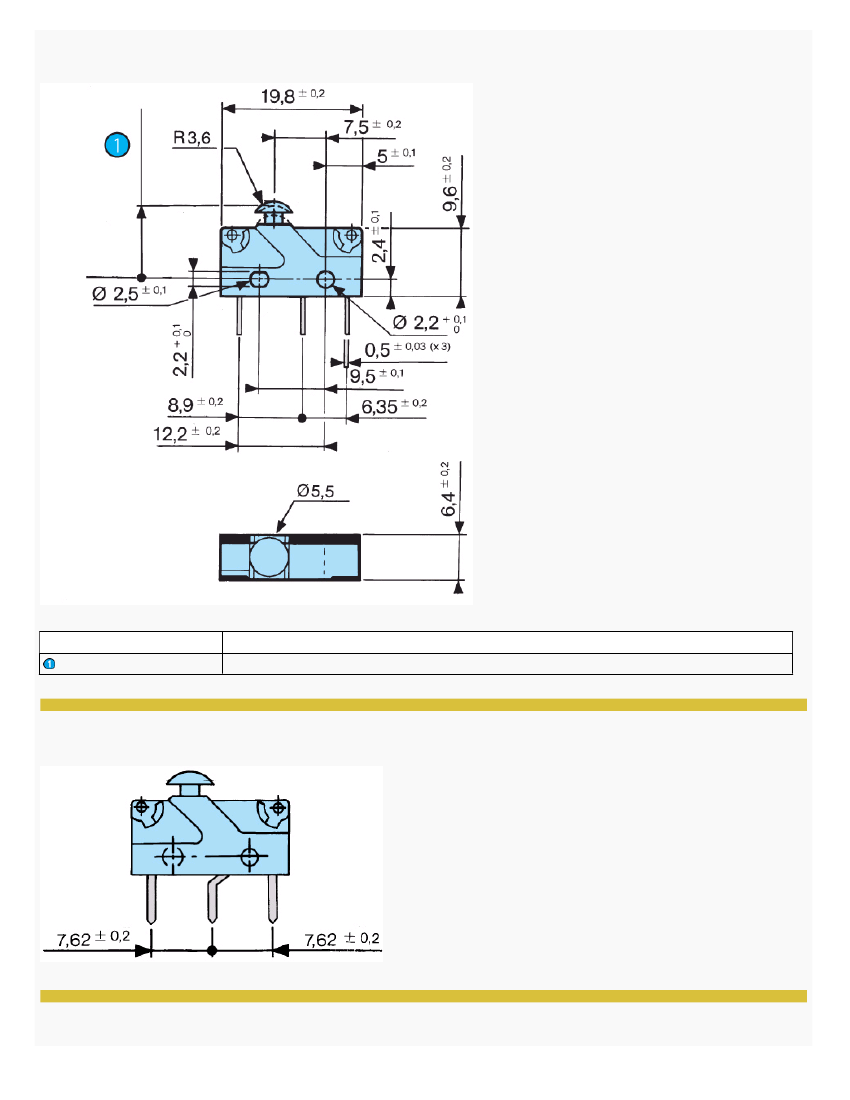

Dimensions (mm)
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
