32_MMBX-50-0-5/111_NE

Description
RF Adapters - Within Series
CategoryThe connector    The connector
File Size114KB,1 Pages
ManufacturerHUBER+SUHNER
Environmental Compliance
Download Datasheet Parametric Compare View All

32_MMBX-50-0-5/111_NE Overview

RF Adapters - Within Series

32_MMBX-50-0-5/111_NE Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
Adapter typeMMBX-MMBX
Body/casing typePLUG-PLUG
Characteristic impedance50 Ω
Connector typeRF CONNECTOR ADAPTER
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE-MALE
Contact materialNOT SPECIFIED
Contact styleCOAX
Coupling typeSNAP
DIN complianceNO
Durability100 Cycles
Filter functionNO
IEC complianceNO
insulator materialPFA/PTFE
MIL complianceNO
Installation methodSTRAIGHT
Maximum operating frequency12.4 GHz
Maximum operating temperature155 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
Panel mountingNO
reliabilityCOMMERCIAL
Base Number Matches1

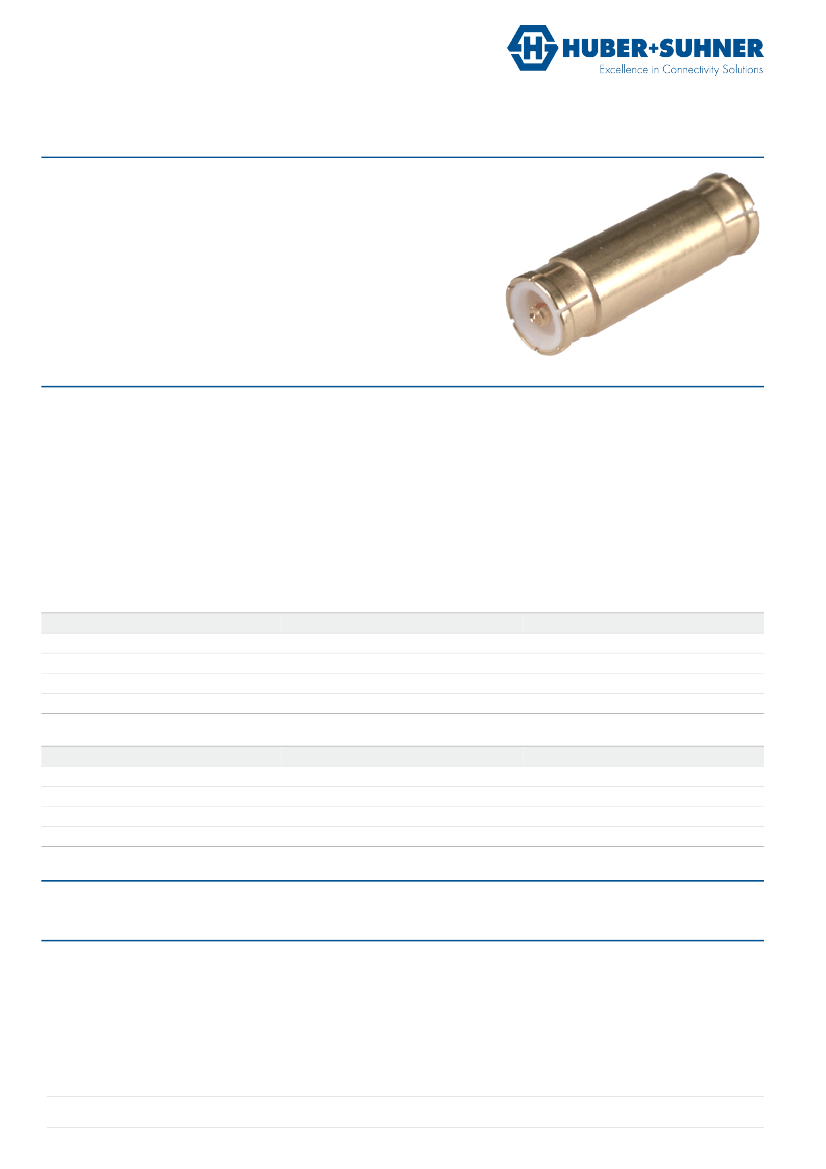

Data Sheet
Within Series Adaptor
32_MMBX-50-0-5/111_N
Description
Adaptor plug/plug
MMBX plug (male) / MMBX plug (male)
Slide - snap interface
Interface standard
Series MMBX - SUHNER-MMBX
Technical Data
Electrical Data
Impedance
Interface frequency max.
50 Ω
12.4 GHz
Mechanical Data
Number of matings
Weight
100
0.0005 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-55 °C to 155 °C
compliant
Material Data
Interface - MMBX plug (male)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Bronze
Bronze
PFA / PTFE
Surface Plating
SUCOPRO Plating
SUCOPRO Plating
SUCOPRO Plating
Interface - MMBX plug (male)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Bronze
Bronze
PFA / PTFE
Surface Plating
SUCOPRO Plating
SUCOPRO Plating
SUCOPRO Plating
Related Documents
Outline drawing
DOU-00013890
Ordering Information
Tray package
Single package
32_MMBX-50-0-5/111_NY
32_MMBX-50-0-5/111_NE
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000194469 O / PDO G / date of publication: 12/4/2014 4:37:31 PM / uncontrolled copy
Page 1/1
