53_BNC-50-0-1/133_NE: DescriptionRF Adapters - Within Series; CategoryThe connector The connector; File Size110KB，1 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric View All

53_BNC-50-0-1/133_NE Overview

RF Adapters - Within Series

53_BNC-50-0-1/133_NE Parametric

Parameter Name	Attribute value
Maker	HUBER+SUHNER
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Adapter type	BNC-BNC
Other features	STANDARDS: IEC 60169-8; MIL-STD-348A/301
Body/casing type	PLUG-JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE-FEMALE
Contact material	NOT SPECIFIED
Contact style	COAX
Coupling type	BAYONET
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	YES
insulator material	PFA/PTFE
MIL compliance	YES
Installation method	RIGHT ANGLE
Maximum operating frequency	4 GHz
Maximum operating temperature	165 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
Panel mounting	NO
reliability	COMMERCIAL
voltage standing wave ratio	1.22
Base Number Matches	1

Preview

Download Datasheet

View All

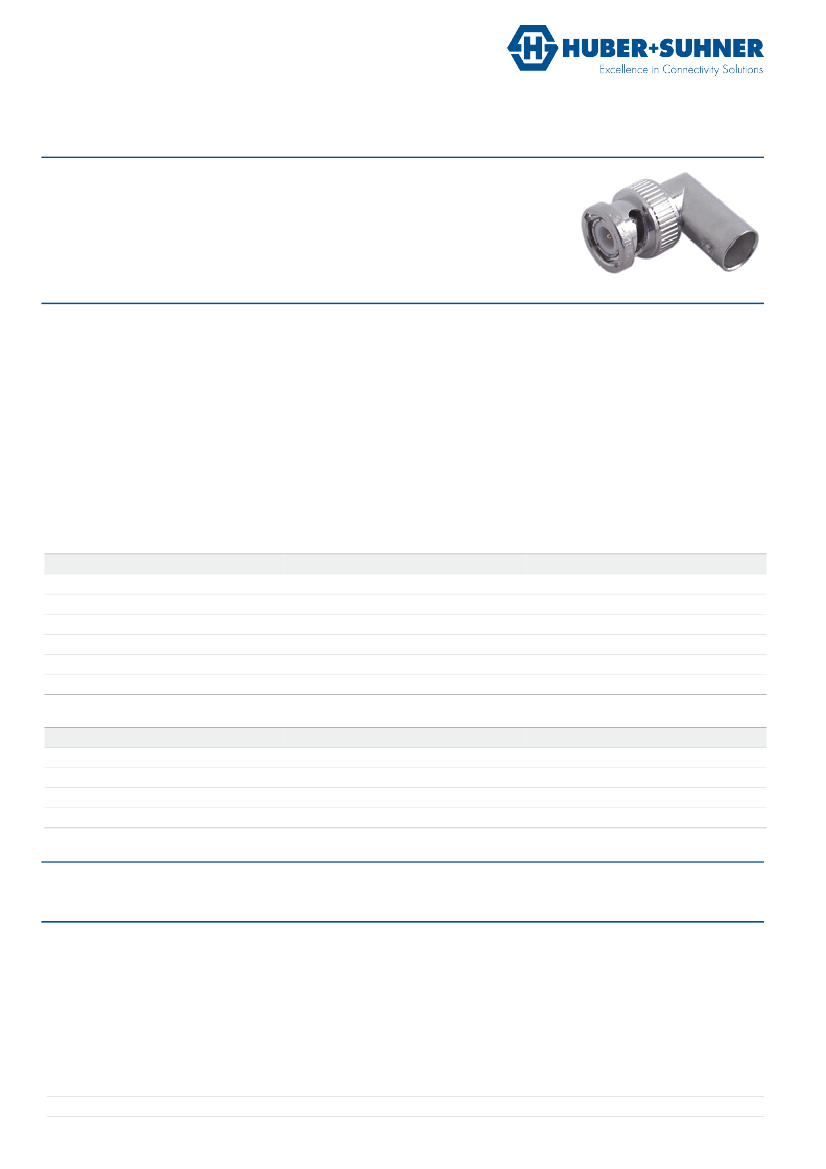

Data Sheet

Within Series Adaptor

53_BNC-50-0-1/133_N

Description

L-adaptor plug/jack

BNC plug (male) / BNC jack (female)

Interface standard

Series BNC - IEC 61169-8_MIL-STD-348A/301_CECC 22120

Technical Data

Electrical Data

Impedance

Interface frequency max.

VSWR

50 Ω

4 GHz

DC - 4 GHz

≤ 1.06 + 0.04 f (GHz)

Mechanical Data

Number of matings

Weight

500

0.0158 kg

Environmental Data

Operating temperature

2011/65/EC (RoHS)

-65 °C to 165 °C

compliant

Material Data

Interface - BNC plug (male)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Coupling nut

Gasket

Material

Copper Beryllium / Brass

Brass

PFA / PTFE

Brass

VMQ (Silicone rubber)

SUCOPLATE (R) Plating

Surface Plating

Gold Plating (Nickel underplated)

SUCOPLATE (R) Plating

Interface - BNC jack (female)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Material

Copper Beryllium / Brass

Brass

PFA / PTFE

Surface Plating

Gold Plating (Nickel underplated)

SUCOPLATE (R) Plating
