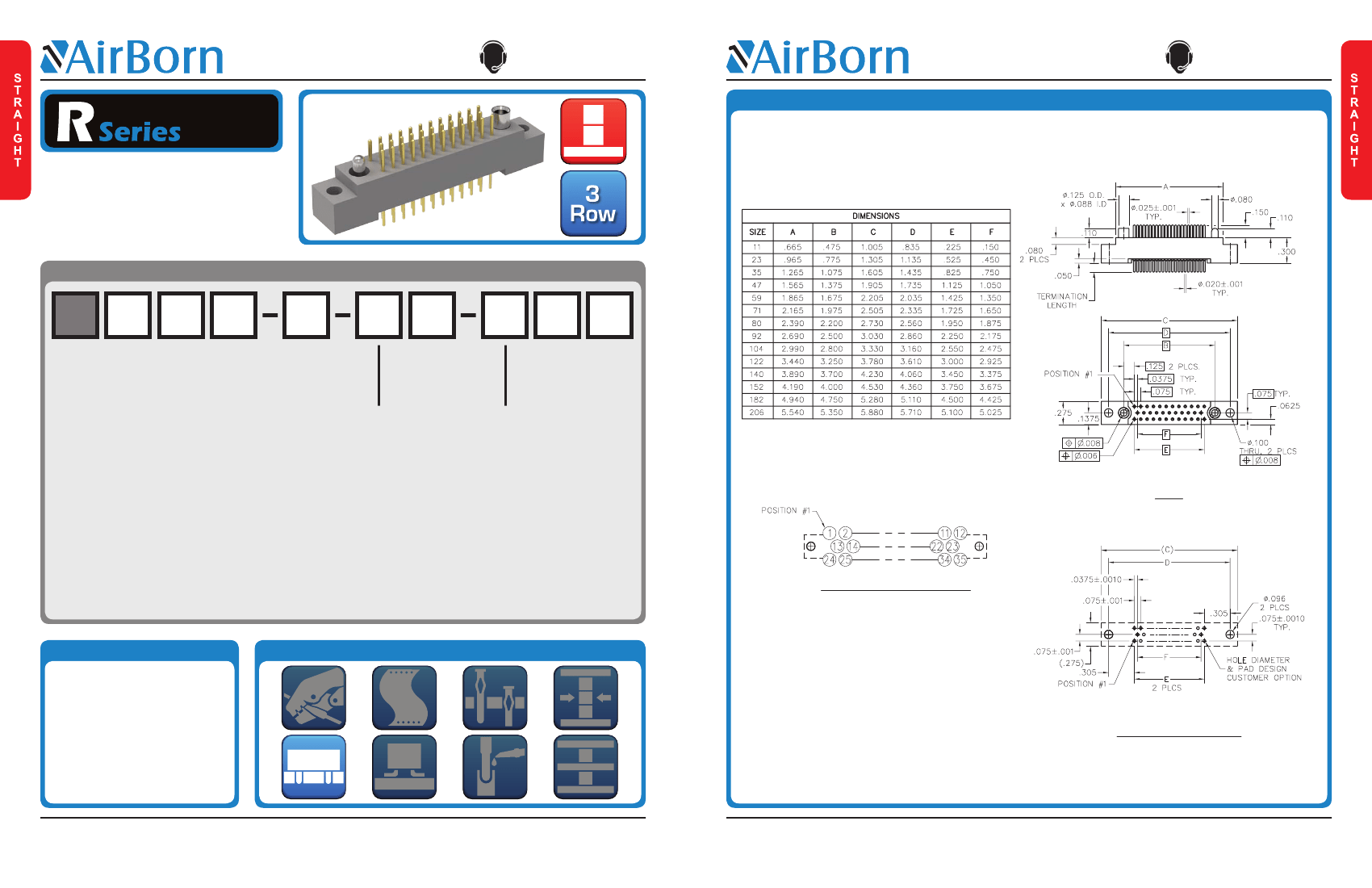

RM – Three-Row, Straight, Board-Mount Plug

CONTACT CUSTOMER SERVICE

High-Density

0.075"

(1.905mm)

RM – Three-Row, Straight,

Board-Mount Plug

Contact Spacing: 0.075" (1.91 mm)

R-Series products are high-density, plastic

connectors commonly used in board-to-board

applications. Approved to MIL-55302 standard.

Plastic ▪ 3-Row ▪ 11-206 Contacts

Sample Part Number Format: RM332-035-102-5500

SERIES

0.075" Plastic

Rectangular

Connector

(Plug)

ROWS

3 – 3-Row

(11-206

contacts)

STYLE

BODY MATERIAL

1 – Plug,

2 – Polyphenylene

straight with

sulfide (PPS)

mounting

ears

3 – Plug,

straight

without

mounting

ears

SIZE

011 – 11 contacts

023 – 23 contacts

035 – 35 contacts

047 – 47 contacts

059 – 59 contacts

071 – 71 contacts

080 – 80 contacts

092 – 92 contacts

104 – 104 contacts

122 – 122 contacts

140 – 140 contacts

152 – 152 contacts

182 – 182 contacts

206 – 206 contacts

PLATING

1 – Gold

2 – Pre-tinned,

SnPb alloy ‡

3 – Pre-tinned,

SAC305 alloy

TERMINATION

10 – Plated thru-hole, 0.109" x 0.020" Ø

12 – Plated thru-hole, 0.140" x 0.020" Ø

13 – Plated thru-hole, 0.172" x 0.020" Ø

14 – Plated thru-hole, 0.250" x 0.020" Ø

OPTIONS

POLARIZA-

BN – Bond #1-

TION

72, small

00 – None

patern hex

XX – See page 140

nuts into

for codes

70 – Same as above, mounting

ears

but without

Loctite®

(customer-

keyed)

Notes:

‡ Not RoHS-compliant

HARDWARE

0256 – None

55 – Guide set

57 – Two guide pins

58 – Two guide sockets

29 – Fixed jackset

30 – Fixed jackset, reversed

19 – Two fixed jackscrews

20 – Two fixed jacksockets

59 – Hex turning jackset, 0.200"

60 – Hex turning jackset reversed, 0.200"

61 – Two hex turning jackscrews, 0.200"

62 – Two hex turning jacksockets, 0.200"

64 – Turning jackset, 0.490"

PLUG

PLEASE CONSULT THE AIRBORN WEBSITE FOR THE LATEST REVISION OF THIS DOCUMENT PRIOR TO BEGINNING ANY DESIGN WORK.

PIN IDENTIFICATION PATTERN

VIEWED FROM TERMINATION SIDE

(EXAMPLE: 35 POSITION CONNECTOR)

Mates with

RM322 & RM342 — Three-row,

straight receptacle

RM362 & RM382 — Three-row,

right-angle receptacle

RA3E, 3F, 3G, 3H — Three-row, I/O receptacle

Terminations

PCB LAYOU VIEWED

FROM COMPONENT SIDE

PLEASE CONSULT THE AIRBORN WEBSITE FOR THE LATEST REVISION OF THIS DOCUMENT PRIOR TO BEGINNING ANY DESIGN WORK.

RM332-PNB-1

(CTR503, REV. 1)

www.airborn.com

(512 ) 863-5585

RM332-DIM-1

(CTR503, REV. 1)

www.airborn.com

( 512 ) 863-5585
