82_MCX-50-0-19/111_NM

Description
RF Connector/Coaxial Connector
CategoryThe connector    The connector
File Size93KB，2 Pages
ManufacturerHUBER+SUHNER
Download Datasheet Parametric View All

82_MCX-50-0-19/111_NM Overview

RF Connector/Coaxial Connector

82_MCX-50-0-19/111_NM Parametric

Parameter NameAttribute value
MakerHUBER+SUHNER
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
Is SamacsysN
Other featuresSTANDARD: IEC 60169-36
Body/casing typeJACK
Characteristic impedance50 Ω
Connector typeRF MCX CONNECTOR
Contact to complete cooperationGOLD OVER NICKEL
Contact completed and terminatedGOLD OVER NICKEL
Contact point genderFEMALE
Coupling typeSNAP
DIN complianceNO
Filter functionNO
IEC complianceNO
insulator materialPERFLUOROALKOXY/POLYTETRAFLUORO ETHYLENE
JESD-609 codee4
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Installation methodSTRAIGHT
Installation typeBOARD
Maximum operating frequency6 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
Termination typeSOLDER
Base Number Matches1

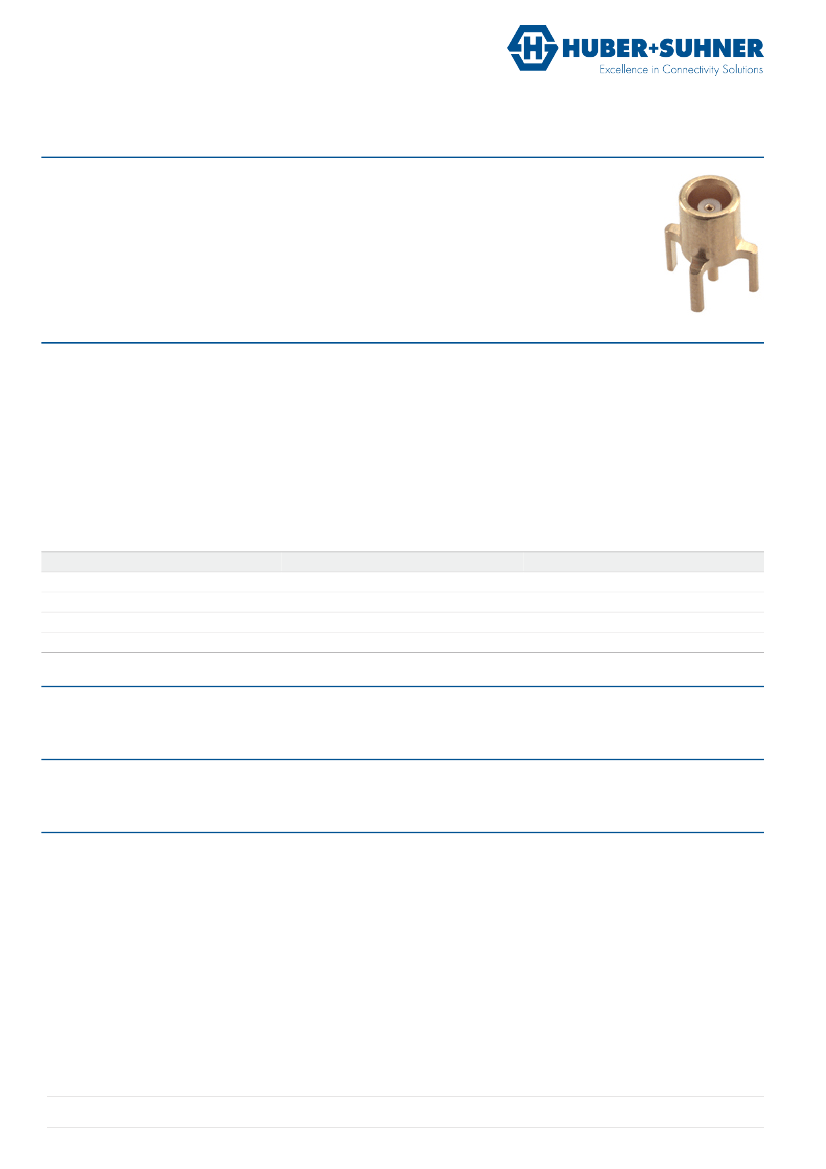

Preview

Download Datasheet
Data Sheet
Coaxial PCB Connector
82_MCX-50-0-19/111_N
Description
Straight PCB jack
Interface Standards
IEC 60169-36_CECC 22220
Technical Data
Electrical Data
Impedance
Interface frequency max.
50 Ω
6 GHz
Mechanical Data
Board mounting type
Weight
through holes
0.0007 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-55 °C to 155 °C
compliant
Material Data
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Brass
Brass
PFA / PTFE
Surface Plating
Gold Plating (Nickel underplated)
Gold Plating (Nickel underplated)
Gold Plating (Nickel underplated)
Related Documents
Outline drawing
Catalogue drawing
DOU-00012977
DCA-00012979
Ordering Information
Bulk 100 pcs package
Tape and Reel package
82_MCX-50-0-19/111_NH
82_MCX-50-0-19/111_NM
Remarks
PCB connector with stand-offs
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000193184 N / PDO G / date of publication: 12/5/2014 12:18:31 PM / uncontrolled copy
Page 1/1
