82_MMBX-50-0-2/111_NE: DescriptionRF Connector/Coaxial Connector; CategoryThe connector The connector; File Size128KB，1 Pages; ManufacturerHUBER+SUHNER; Environmental Compliance

Download Datasheet Parametric Compare View All

82_MMBX-50-0-2/111_NE Overview

RF Connector/Coaxial Connector

82_MMBX-50-0-2/111_NE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	HUBER+SUHNER
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	Huber & Suhner 50Ω Straight Through Hole MMBX Connector, jack, Solder Termination, 0 → 6GHz
Other features	VSWR MAX AT 6 GHZ
body width	0.24 inch
subject depth	0.122 inch
body length	0.24 inch
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact style	COAX
Coupling type	SNAP
DIN compliance	NO
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e4
MIL compliance	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of ports	1
Maximum operating frequency	12.4 GHz
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Panel mounting	NO
Shell material	BRASS
Terminal length	0.134 inch
Termination type	SOLDER
Total number of contacts	1
voltage standing wave ratio	1.15
Base Number Matches	1

Preview

Download Datasheet

View All

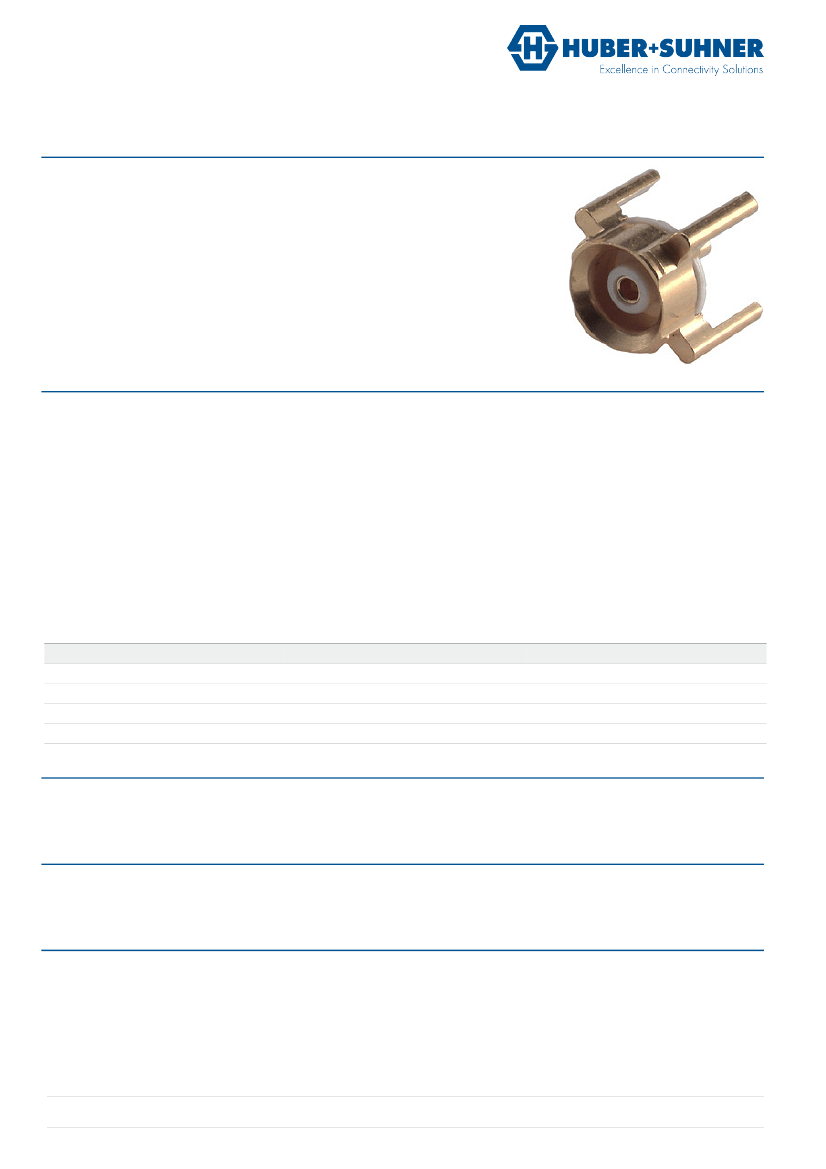

Data Sheet

Coaxial PCB Connector

82_MMBX-50-0-2/111_N

Description

Straight PCB jack

Interface Standards

SUHNER-MMBX

Technical Data

Electrical Data

Impedance

Interface frequency max.

Frequency range

Return loss

50 Ω

12.4 GHz

DC to 2 GHz

≥ 30 dB

2 to 6 GHz

≥ 23 dB

Mechanical Data

Board mounting type

Weight

through holes

0.0004 kg

Environmental Data

Operating temperature

2011/65/EU (RoHS)

-55 °C to 155 °C

compliant

Material Data

Piece Parts

Centre contact

Outer contact

Body

Insulator

Material

Brass

LCP (Liquid crystal polymer)

Surface Plating

Gold Plating (Nickel underplated)

SUCOPRO Plating

82_MMBX-50-0-2/111_NE Related Products

	82_MMBX-50-0-2/111_NE	82_MMBX-50-0-2/111_NM	82_MMBX-50-0-2/111_NH
Description	RF Connector/Coaxial Connector	RF Connector/Coaxial Connector	RF Connector/Coaxial Connector
Is it Rohs certified?	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant
Other features	VSWR MAX AT 6 GHZ	VSWR MAX AT 6 GHZ	VSWR MAX AT 6 GHZ
body width	0.24 inch	0.24 inch	0.24 inch
subject depth	0.122 inch	0.122 inch	0.122 inch
body length	0.24 inch	0.24 inch	0.24 inch
Body/casing type	JACK	JACK	JACK
Characteristic impedance	50 Ω	50 Ω	50 Ω
Connector type	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE
Contact style	COAX	COAX	COAX
Coupling type	SNAP	SNAP	SNAP
DIN compliance	NO	NO	NO
Durability	100 Cycles	100 Cycles	100 Cycles
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
insulator material	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER
MIL compliance	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of ports	1	1	1
Maximum operating frequency	12.4 GHz	12.4 GHz	12.4 GHz
Maximum operating temperature	155 °C	155 °C	155 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO
Shell material	BRASS	BRASS	BRASS
Terminal length	0.134 inch	0.134 inch	0.134 inch
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	1	1	1
voltage standing wave ratio	1.15	1.15	1.15
Base Number Matches	1	1	1
Maker	HUBER+SUHNER	HUBER+SUHNER	-
ECCN code	EAR99	-	EAR99
Contact material	-	NOT SPECIFIED	NOT SPECIFIED
