82_MCX-S50-0-22/111_NE datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 82_MCX-S50-0-22/111_NE

Preview

82_MCX-S50-0-22/111_NE: DescriptionRF Connector/Coaxial Connector; CategoryThe connector The connector; File Size106KB，1 Pages; ManufacturerHUBER+SUHNER; Environmental Compliance

Download Datasheet Parametric Compare View All

82_MCX-S50-0-22/111_NE Overview

RF Connector/Coaxial Connector

82_MCX-S50-0-22/111_NE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	HUBER+SUHNER
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Is Samacsys	N
Other features	CAPTIVATED
subject depth	0.246 inch
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF MCX CONNECTOR
Contact to complete cooperation	GOLD (51) OVER NICKEL (51)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact style	COAX
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	PERFLUOROALKOXY/POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Maximum operating frequency	6 GHz
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Panel mounting	NO
reliability	COMMERCIAL
Shell surface	GOLD OVER NICKEL
Shell material	BRASS
Termination type	SURFACE MOUNT
Total number of contacts	1
Base Number Matches	1

Preview

Download Datasheet

View All

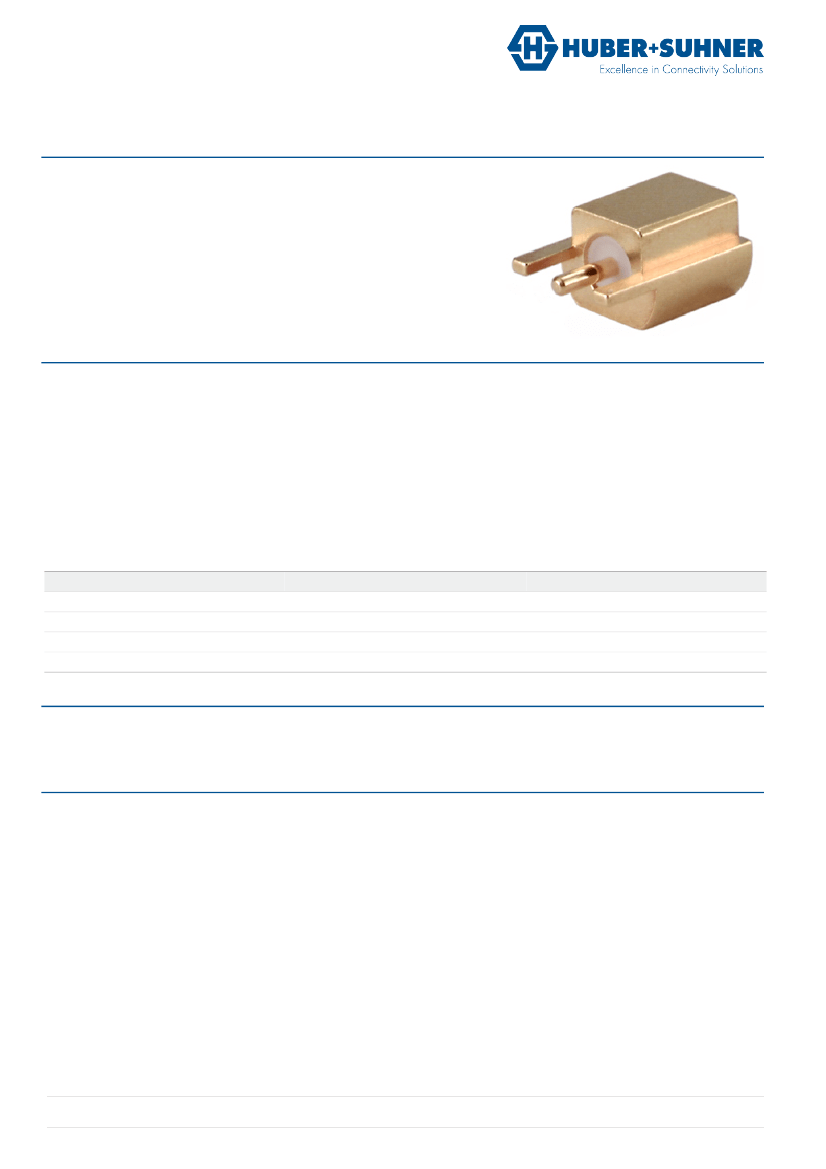

Data Sheet

Coaxial PCB Connector

82_MCX-S50-0-22/111_N

Description

Straight PCB jack

Interface Standards

IEC 60169-36_CECC 22220

Technical Data

Electrical Data

Impedance

Interface frequency max.

50 Ω

6 GHz

Mechanical Data

Board mounting type

Weight

edge mount

0.0011 kg

Environmental Data

Operating temperature

2011/65/EU (RoHS)

-55 °C to 155 °C

compliant

Material Data

Piece Parts

Centre contact

Outer contact

Body

Insulator

Material

Copper Beryllium Alloy

Brass

PFA / PTFE

Surface Plating

Gold Plating (Nickel underplated)

82_MCX-S50-0-22/111_NE Related Products

	82_MCX-S50-0-22/111_NE	82_MCX-S50-0-22/111_NM
Description	RF Connector/Coaxial Connector	RF Connector/Coaxial Connector
Is it Rohs certified?	conform to	conform to
Maker	HUBER+SUHNER	HUBER+SUHNER
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant
Is Samacsys	N	N
Other features	CAPTIVATED	CAPTIVATED
Body/casing type	JACK	JACK
Characteristic impedance	50 Ω	50 Ω
Connector type	RF MCX CONNECTOR	RF MCX CONNECTOR
Contact to complete cooperation	GOLD (51) OVER NICKEL (51)	GOLD (51) OVER NICKEL (51)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE	FEMALE
Contact material	NOT SPECIFIED	BERYLLIUM COPPER
Coupling type	SNAP	SNAP
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
insulator material	PERFLUOROALKOXY/POLYTETRAFLUORO ETHYLENE	PERFLUOROALKOXY/POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4	e4
MIL compliance	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Maximum operating frequency	6 GHz	6 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO
Termination type	SURFACE MOUNT	SURFACE MOUNT
Base Number Matches	1	1
