23_SK-50-0-52/199_NE: DescriptionRF Connector/Coaxial Connector; CategoryThe connector The connector; File Size113KB，2 Pages; ManufacturerHUBER+SUHNER; Environmental Compliance

Download Datasheet Parametric View All

23_SK-50-0-52/199_NE Overview

RF Connector/Coaxial Connector

23_SK-50-0-52/199_NE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
subject depth	0.378 inch
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR
Contact to complete cooperation	GOLD (51) OVER NICKEL (51)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact style	COAX
Coupling type	THREADED
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
insulator material	PPO PPE
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation option 1	LOCKING
Installation method	STRAIGHT
Number of ports	1
Maximum operating frequency	40 GHz
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Panel mounting	YES
Shell surface	GOLD OVER NICKEL
Shell material	STEEL
Total number of contacts	1
voltage standing wave ratio	1.43
Base Number Matches	1

Preview

Download Datasheet

View All

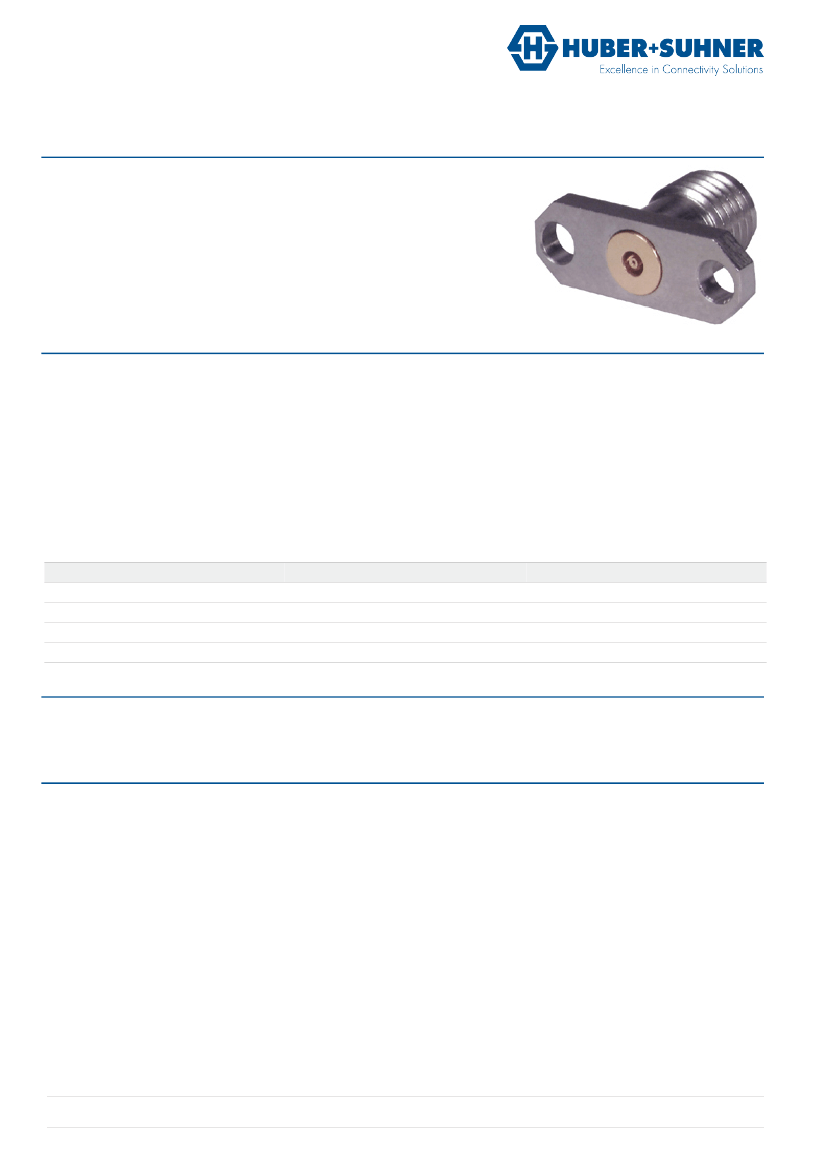

Data Sheet

Coaxial Panel Connector

23_SK-50-0-52/199_N

Description

Straight panel receptacle jack, flange mount

Interface standards

MIL-STD-348A/323

Technical Data

Electrical Data

Impedance

Interface frequency max.

50 Ω

40 GHz

Mechanical Data

Number of matings

Weight

500

0.0023 kg

Environmental Data

Operating temperature

2011/65/EU (RoHS)

-40 °C to 125 °C

compliant

Material Data

Piece Parts

Centre contact

Outer contact

Body

Insulator

Material

Copper Beryllium Alloy

Stainless Steel

PPE (Polyphenylene ether, PPO)

Surface Plating

Gold Plating (Nickel underplated)
