82_QMA-50-0-3/111_NH datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 82_QMA-50-0-3/111_NH

Preview

82_QMA-50-0-3/111_NH: DescriptionRF Connector/Coaxial Connector; CategoryThe connector The connector; File Size108KB，2 Pages; ManufacturerHUBER+SUHNER; Environmental Compliance

Download Datasheet Parametric View All

82_QMA-50-0-3/111_NH Overview

RF Connector/Coaxial Connector

82_QMA-50-0-3/111_NH Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	HUBER+SUHNER
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	VSWR MAX AT 6 GHZ
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	PFA/PTFE
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation method	STRAIGHT
Installation type	BOARD
Maximum operating frequency	6 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	SOLDER
voltage standing wave ratio	1.5
Base Number Matches	1

Preview

Download Datasheet

View All

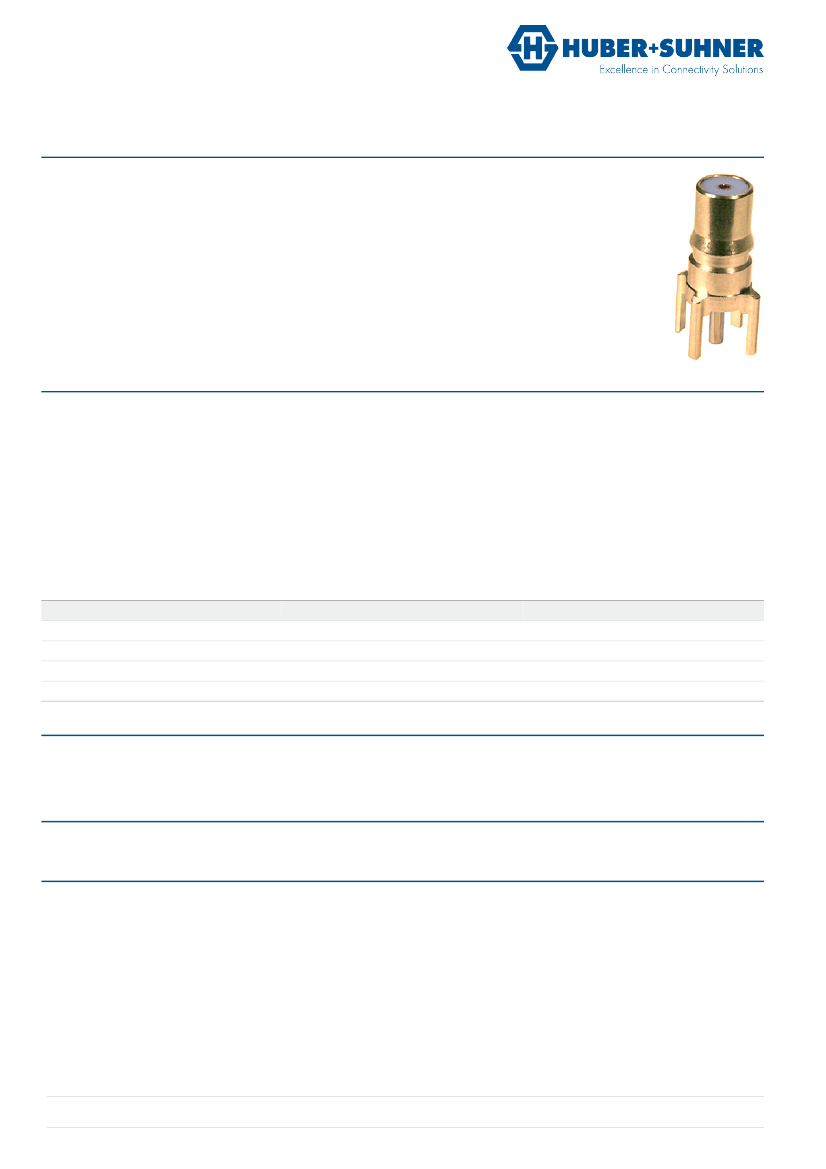

Data Sheet

Coaxial PCB Connector

82_QMA-50-0-3/111_N

Description

Straight PCB jack

Interface Standards

QMA QLF compliant

Technical Data

Electrical Data

Impedance

Interface frequency max.

50 Ω

6 GHz

Mechanical Data

Board mounting type

Weight

through holes

0.0013 kg

Environmental Data

Operating temperature

2011/65/EU (RoHS)

-40 °C to 85 °C

compliant

Material Data

Piece Parts

Centre contact

Outer contact

Body

Insulator

Material

Copper Beryllium Alloy

Brass

PFA / PTFE

Surface Plating

SUCOPRO Plating
