81_SMB-50-0-41/111_NE datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 81_SMB-50-0-41/111_NE

Preview

81_SMB-50-0-41/111_NE: DescriptionRF Connector/Coaxial Connector; CategoryThe connector The connector; File Size96KB，1 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric Compare View All

81_SMB-50-0-41/111_NE Overview

RF Connector/Coaxial Connector

81_SMB-50-0-41/111_NE Parametric

Parameter Name	Attribute value
Maker	HUBER+SUHNER
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	STANDARD: IEC 60169-10, MIL-348A/311
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF SMB CONNECTOR
Contact to complete cooperation	GOLD (51) OVER NICKEL (51)
Contact completed and terminated	GOLD (51) OVER NICKEL (51)
Contact point gender	FEMALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	PTFE/PFA
JESD-609 code	e4
MIL compliance	NO
Installation method	STRAIGHT
Installation type	BOARD
Maximum operating frequency	4 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

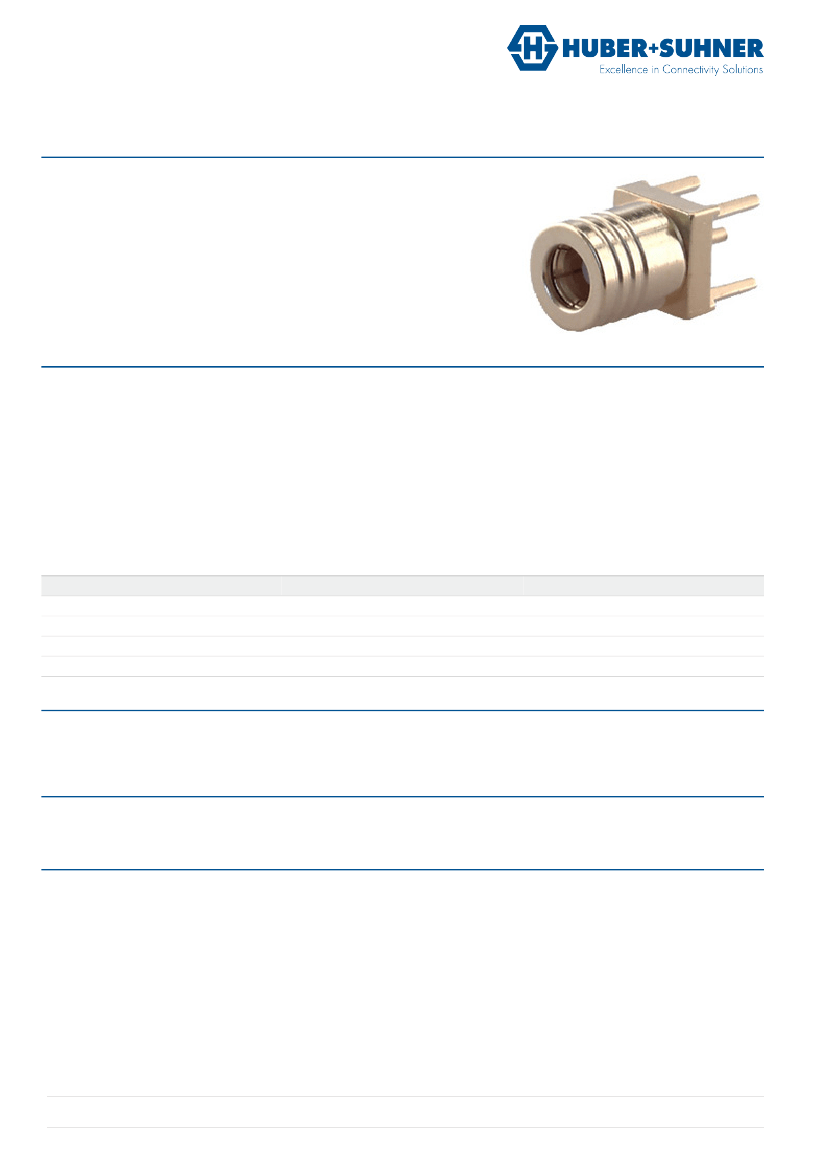

Data Sheet

Coaxial PCB Connector

81_SMB-50-0-41/111_N

Description

Straight PCB plug

Interface Standards

IEC 60169-10_MIL-STD-348A/311_CECC 22130

Technical Data

Electrical Data

Impedance

Interface frequency max.

50 Ω

4 GHz

Mechanical Data

Board mounting type

Weight

through holes

0.0018 kg

Environmental Data

Operating temperature

2011/65/EU (RoHS)

-65 °C to 165 °C

compliant

Material Data

Piece Parts

Centre contact

Outer contact

Body

Insulator

Material

Copper Beryllium Alloy

Brass

PFA / PTFE

Surface Plating

Gold Plating (Nickel underplated)

81_SMB-50-0-41/111_NE Related Products

	81_SMB-50-0-41/111_NE	81_SMB-50-0-41/111_NH
Description	RF Connector/Coaxial Connector	RF Connector/Coaxial Connector
Maker	HUBER+SUHNER	HUBER+SUHNER
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant
Other features	STANDARD: IEC 60169-10, MIL-348A/311	STANDARD: IEC 60169-10, MIL-348A/311
Body/casing type	PLUG	PLUG
Characteristic impedance	50 Ω	50 Ω
Connector type	RF SMB CONNECTOR	RF SMB CONNECTOR
Contact to complete cooperation	GOLD (51) OVER NICKEL (51)	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE
Coupling type	SNAP	SNAP
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
insulator material	PTFE/PFA	PTFE/PFA
MIL compliance	NO	NO
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Maximum operating frequency	4 GHz	4 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO
Termination type	SOLDER	SOLDER
Base Number Matches	1	1
