82_MCX-S50-0-29/111_NE

Description
RF Connector/Coaxial Connector
CategoryThe connector    The connector
File Size97KB,1 Pages
ManufacturerHUBER+SUHNER
Environmental Compliance
Download Datasheet Parametric Compare View All

82_MCX-S50-0-29/111_NE Overview

RF Connector/Coaxial Connector

82_MCX-S50-0-29/111_NE Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerHUBER+SUHNER
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Is SamacsysN
Other featuresSTANDARD: IEC 60169-36
body width0.24 inch
subject depth0.236 inch
body length0.24 inch
Body/casing typeJACK
Characteristic impedance50 Ω
Connector typeRF MCX CONNECTOR
Contact to complete cooperationGOLD (51) OVER NICKEL (51)
Contact point genderFEMALE
Contact materialBERYLLIUM COPPER
Contact styleCOAX
Coupling typeSNAP
DIN complianceNO
Durability500 Cycles
Filter functionNO
IEC complianceNO
insulator materialPERFLUOROALKOXY/POLYTETRAFLUORO ETHYLENE
MIL complianceNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of ports1
Maximum operating frequency6 GHz
Maximum operating temperature155 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
Panel mountingNO
reliabilityCOMMERCIAL
Shell materialBRASS
Termination typeSURFACE MOUNT
Total number of contacts1
Base Number Matches1

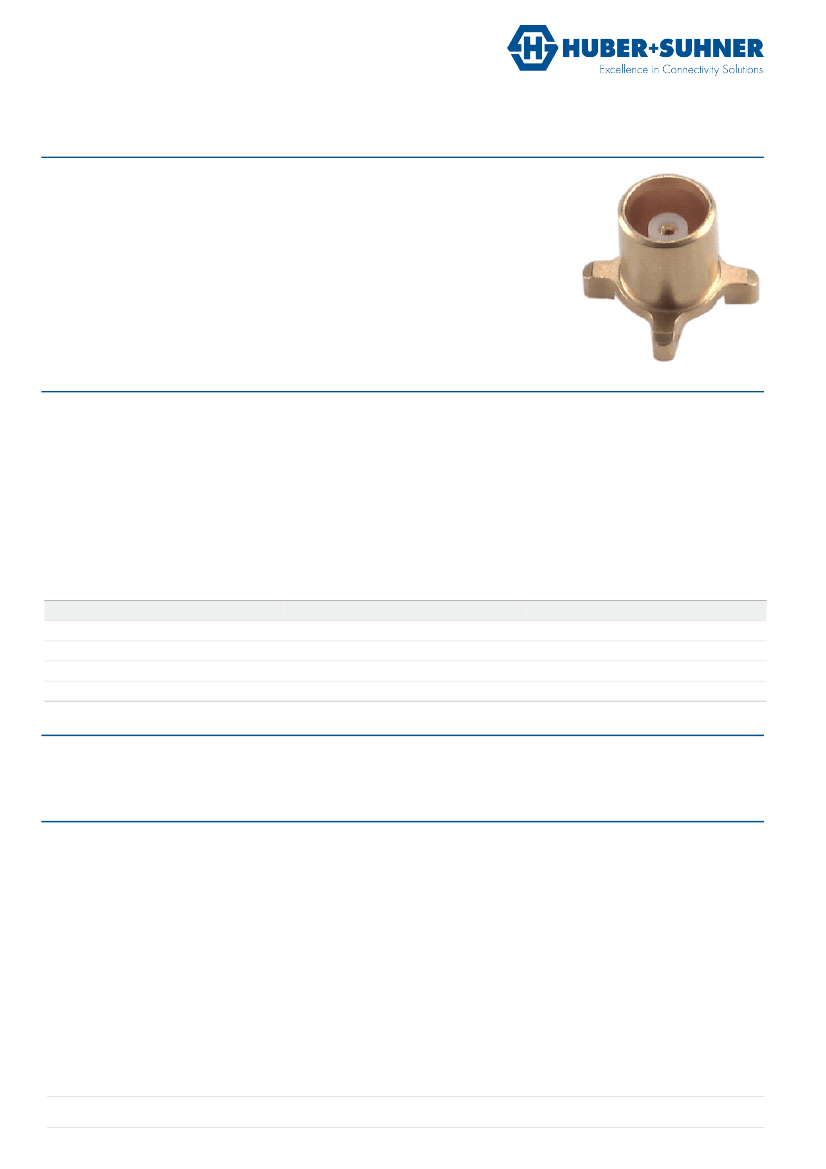

Data Sheet
Coaxial PCB Connector
82_MCX-S50-0-29/111_N
Description
Straight PCB jack
Interface Standards
IEC 60169-36_CECC 22220
Technical Data
Electrical Data
Impedance
Interface frequency max.
50 Ω
6 GHz
Mechanical Data
Board mounting type
Weight
surface mount
0.0004 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-55 °C to 155 °C
compliant
Material Data
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Brass
Brass
PFA / PTFE
Surface Plating
Gold Plating (Nickel underplated)
SUCOPRO Plating
SUCOPRO Plating
Related Documents
Outline drawing
Catalogue drawing
Mounting hole
DOU-00012753
DCA-00012755
DOU-00012756
Ordering Information
Bulk 100 pcs package
Tape and Reel package
Single package
82_MCX-S50-0-29/111_NH
82_MCX-S50-0-29/111_NM
82_MCX-S50-0-29/111_NE
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000193151 L / PDO E / date of publication: 23.03.2016 13:24:32 / uncontrolled copy
Page 1/1

82_MCX-S50-0-29/111_NE Related Products

82_MCX-S50-0-29/111_NE 82_MCX-S50-0-29/111_NM 82_MCX-S50-0-29/111_NH
Description RF Connector/Coaxial Connector RF Connector/Coaxial Connector RF Connector/Coaxial Connector
Is it Rohs certified? conform to conform to conform to
package instruction ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT
Reach Compliance Code compliant compliant compliant
Other features STANDARD: IEC 60169-36 STANDARD: IEC 60169-36 STANDARD: IEC 60169-36
body width 0.24 inch 0.24 inch 0.24 inch
subject depth 0.236 inch 0.236 inch 0.236 inch
body length 0.24 inch 0.24 inch 0.24 inch
Body/casing type JACK JACK JACK
Characteristic impedance 50 Ω 50 Ω 50 Ω
Connector type RF MCX CONNECTOR RF MCX CONNECTOR RF MCX CONNECTOR
Contact point gender FEMALE FEMALE FEMALE
Contact style COAX COAX COAX
Coupling type SNAP SNAP SNAP
Durability 500 Cycles 500 Cycles 500 Cycles
Filter function NO NO NO
insulator material PERFLUOROALKOXY/POLYTETRAFLUORO ETHYLENE PERFLUOROALKOXY/POLYTETRAFLUORO ETHYLENE PERFLUOROALKOXY/POLYTETRAFLUORO ETHYLENE
Installation option 1 LOCKING LOCKING LOCKING
Installation method STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD
Number of ports 1 1 1
Maximum operating frequency 6 GHz 6 GHz 6 GHz
Maximum operating temperature 155 °C 155 °C 155 °C
Minimum operating temperature -55 °C -55 °C -55 °C
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Panel mounting NO NO NO
Shell material BRASS BRASS BRASS
Termination type SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT
Total number of contacts 1 1 1
Base Number Matches 1 1 1
Maker HUBER+SUHNER HUBER+SUHNER -
ECCN code EAR99 - EAR99
Is Samacsys N N -
Contact to complete cooperation GOLD (51) OVER NICKEL (51) NOT SPECIFIED -
Contact material BERYLLIUM COPPER NOT SPECIFIED -
DIN compliance NO NO -
IEC compliance NO NO -
MIL compliance NO NO -
reliability COMMERCIAL COMMERCIAL -
